UML Modeling
Visualize, design, communicate and document UML 2.2 diagrams with intuitive and sophisticated visual modeling environment.

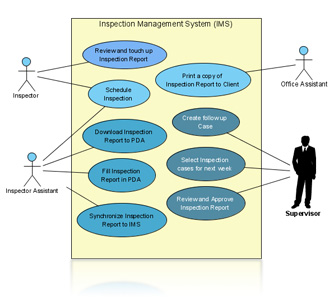

Use case diagram
Use case diagram is designed for visualizing and documenting the behavior of a system. The main notations of use case diagram include System (subject), Use Case, Actor, Association (communication link), Dependency and Generalization. Use case diagram is usually used in modeling the context of a system and requirements of system. Use case diagram is used to specify what the system should do but not how the system should do.
- Using Use Case Diagram (Free)
Online training

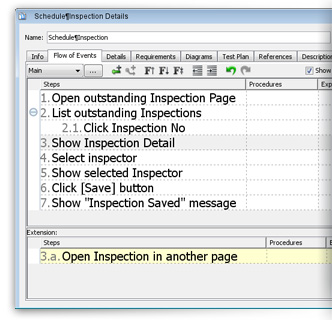

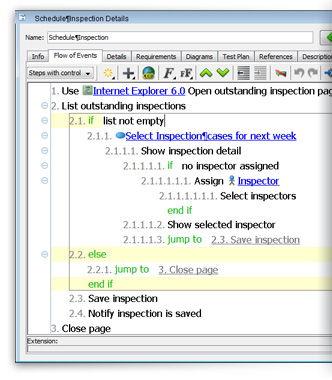

Flow of events editor
Capture detailed steps and flows with intuitive flow of events editor. One use case can contain many flow of events to specify different scenarios. The latest version supports inserting actors, use cases and requirements to flow of events editor as linkages.

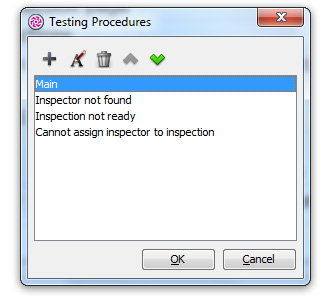

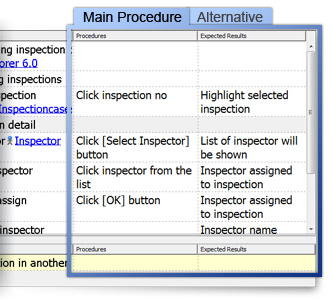

Specify testing procedures
Add testing procedures and expected results to flow of events and generate test plans automatically. The latest version supports defining multiple testing procedures for a single flow of events. The following movies demonstrate how to define testing procedures for use case flow of events.

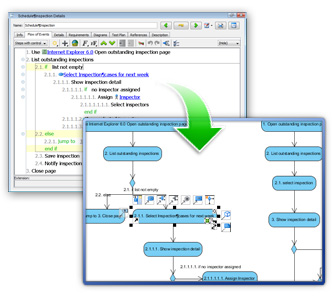

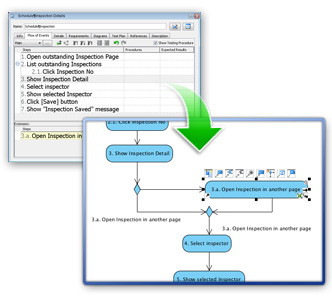

Generate activity diagram from flow of events
Agilian supports generating activity diagram from flow of events. The generation is not just a one way ticket but you can keep modifying the flow of events, and synchronizing changes to activity diagrams.

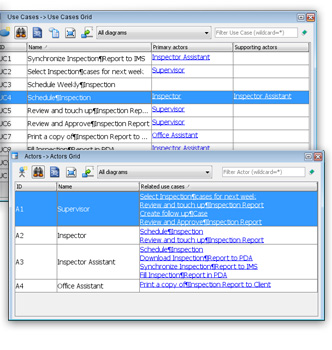

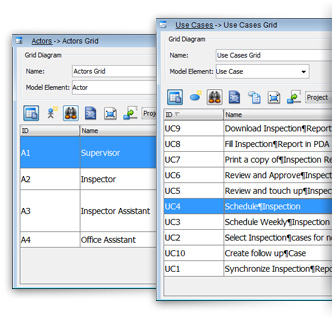

Use cases and actors grid
Use case and actor grid provide a tabular view of all use cases and actors in the project. You can create use case or actor in grid. Grid also provides filter and quick search function for locating the use case and actor easily. The following movie shows use cases and actors grid view in action.
