Frictionless Commenting

Export business process diagram to user to review and comment through ElaborView project.

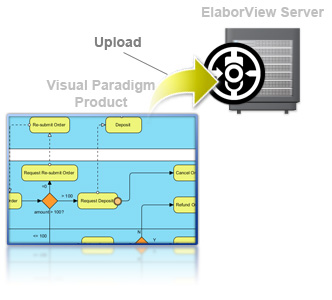

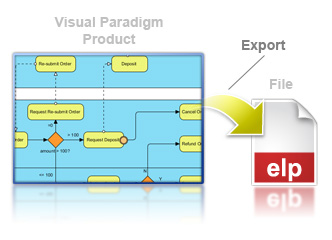

Export design for commenting

Step 1 of 4: Get ready for commenting

Make sure the diagram(s) you want others to comment are all ready.

Step 2 of 4: Open ElaborView Manager

Select File > ElaborView Manager... from the main menu.

Step 3 of 4: To export ElaborView project

Under the Local tab of the ElaborView Manager, click on Export to ElaborView Project...

Step 4 of 4: Configure ElaborView project

Enter the name of ELaborView project. Specify the output destination of your design. Select the diagram for reviewing. Click Export.

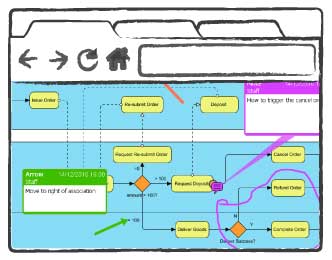

Comment system design by writing comment, drawing line, circle and arrow in web browser.

Comment business process diagram by writing comment, drawing line, circle and arrow.

Design commenting through ElaborView client

Step 1 of 7: Import project from ElaborView server

In ElaborView, select Server > Import Project... from the main menu. When you are prompted to download updates, confirm it.

Step 2 of 7: Open ElaborView project

Double click on the project downloaded from ElaborView server.

Step 3 of 7: Open diagram for commenting

Double click on the diagram to comment.

Step 4 of 7: Start commenting

Select the commenting tool on the left hand side of ElaborView for commenting.

Step 5 of 7: Commenting

Comment on the diagram.

Step 6 of 7: Complete commenting

Add all necessary comments to diagram.

Step 7 of 7: Submit comments

Click on Submit Diagram... at the bottom of ElaborView.

Project file

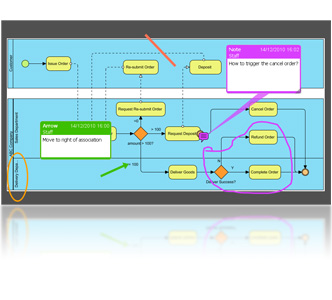

Draw attention to the model elements that need changes, literally. Use colorful lines, arrows, circles, or other shapes to pinpoint, just like highlighters in real life. Or drop in a few text boxes with more elaborate descriptions, and info on who made the comments and when.

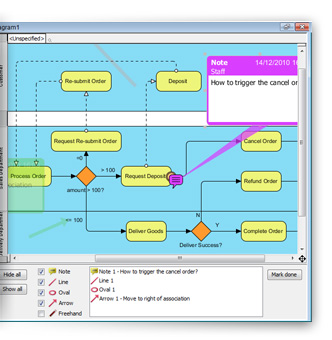

Study the feedback made by end-user. Update the design based on their comments.

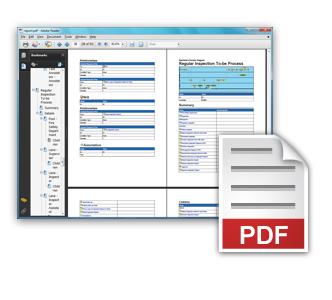

Business Process Visual ARCHITECT supports generating design blueprints to PDF files. The paper size, cover page design, TOC, page header and footer are all customizable. You may select to include/exclude diagrams and model elements, and reorder the content. There are various options to control the styles and formatting of the generated PDF. The PDF generation feature is available in Windows, Mac OSX, Linux and Unix platform. The following movie demonstrates how to generate PDF report with business process diagrams and entity relationship diagram. The movie also shows how to customize the order of model elements, as well as to setup cover page, page header and page footer.

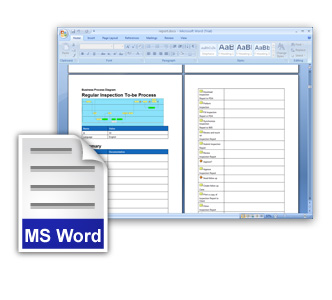

Generate business process report in Microsoft Word 2007 format. The MS Word 2007 report generation feature is available in Windows, Mac OSX, Linux and Unix platform. The latest version supports specifying MS Word document as template.
The following movie demonstrates how to generate MS Word 2007 report with business process diagrams. The movie also shows how to customize the order of model elements as well as the setup of cover page, page header and page footer.

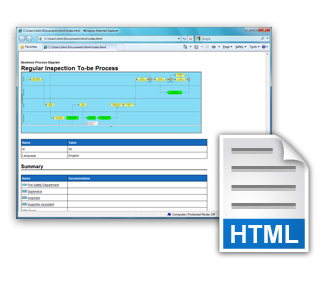

Business Process Visual ARCHITECT supports generating design blueprints to HTML report. The customization capability and output format are similar to PDF report. The front page design, TOC, page header and footer are all customizable. You may select to include/exclude diagrams and model elements, and reorder the content. There are various options to control the styles and formatting of the generated HTML reported. The HTML generation feature is available in Windows, Mac OSX, Linux and Unix platform.
