Generate BPEL - Part 1. Create WSDL diagram
Business Process Model Notation (BPMN) is defacto standard of designing business process. Business Process Execution Language (BPEL) is popular language for workflow engine to execute workflow. This tutorial teaches how to generate BPEL from BPMN's business process diagram and WSDL diagram.
| September 16, 2009 | |
User Rating:
/ 3
|
|
| Views: 4,358 | |
|
PDF
Link
Link: |
Add comments |
| Edition: Analyst or above (Edition comparison) | |
| Part 2. Create Business Process Diagram for Customer Service > |

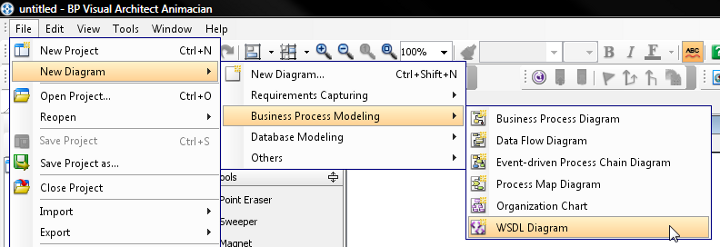

- Select File > New Diagram > Business Process Modeling > WSDL Diagram to create a WSDL diagram.
- Click the Create from Synchronous Template button to create WSDL Diagram using predefined template.

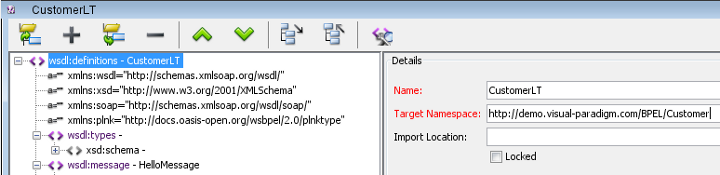

- Select root node wsdl:definitions. In the Name field, enter CustomerLT, and in the Target Namespace, enter http://demo.visual-paradigm.com/BPEL/Customer

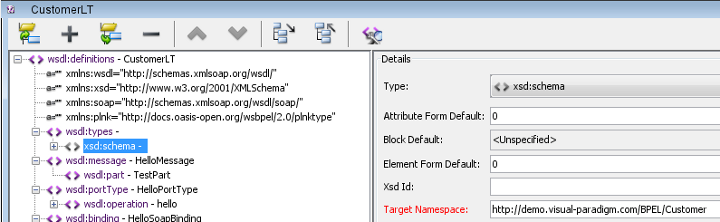

- Select wsdl:definitions > wsdl:types > xsd:schema, and set the Target Namespace as http://demo.visual-paradigm.com/BPEL/Customer

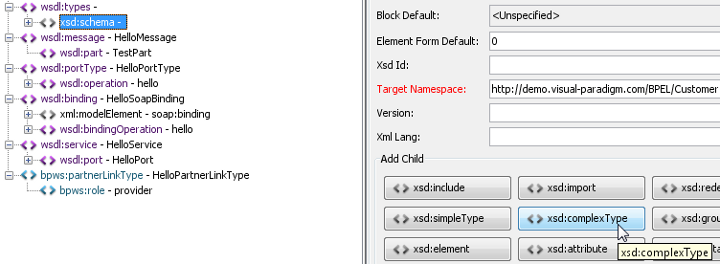

- Select xsd:schema, and press the xsd:complexType button to create a complex type.

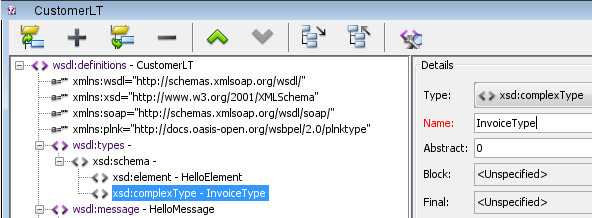

- Name the complex type as InvoiceType.

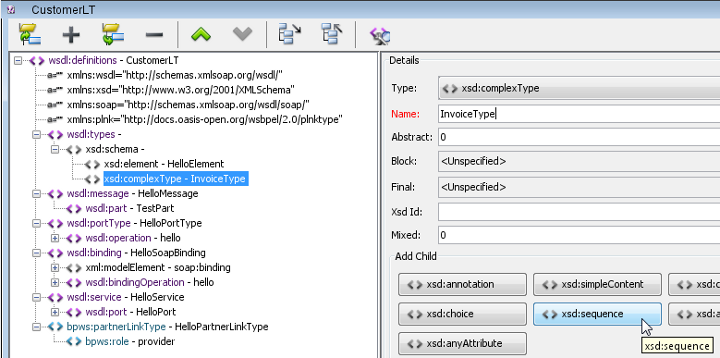

- Select InvoiceType, and press the xsd:sequence button to create a sequence.

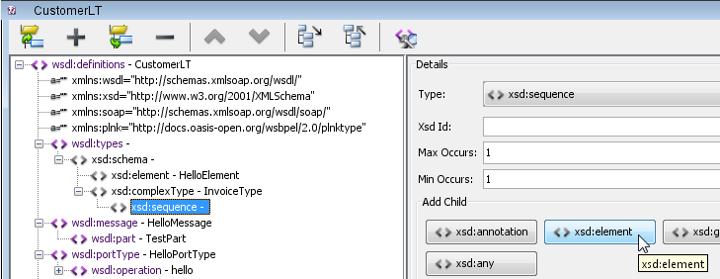

- Select the sequence, and press the xsd:element button to create an element.
- Name the element as SessionID.

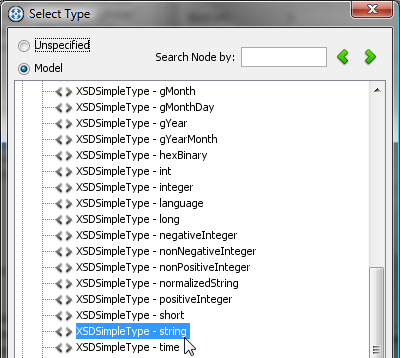

- Press the ... button next to Type, and change the type as string:XSDSimpleType.

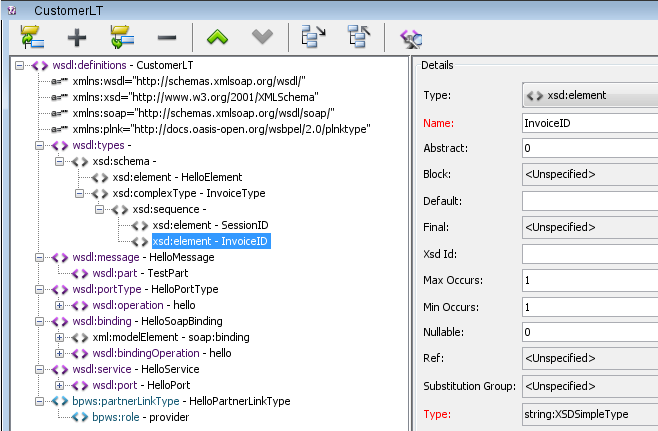

- Create another element, InvoiceID with type as string:XSDSimpleType under InvoiceType.
- Create another complex type under xsd:schema, name it as NoticeType.
- Create a xsd:sequence under NoticeType, then create 2 elements, SessionID and NoticeID under the sequence. Both having type as string:XSDSimpleType.

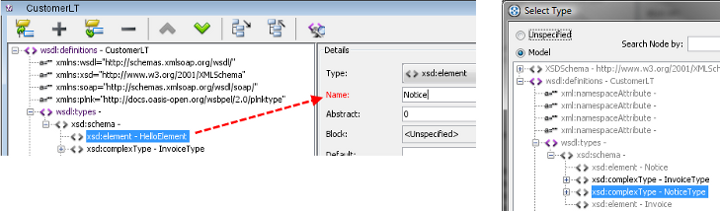

- Rename the HelloElement under xsd:schema to Notice, and change type to NoticeType:XSDComplexType (press the ... button next to Type and select xsd:complexType - NoticeType).

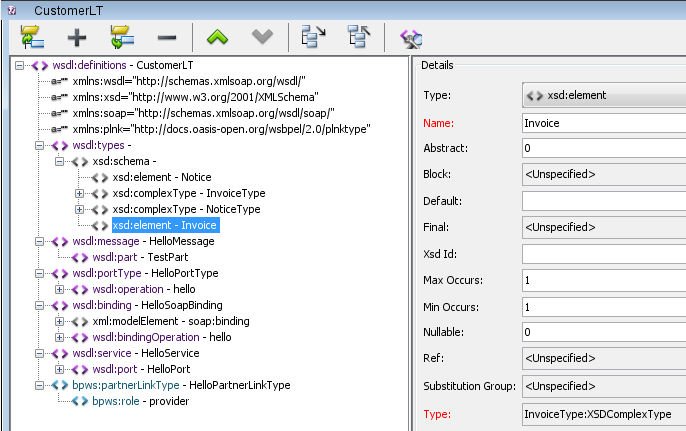

- Create a new element under xsd:schema, name it as Invoice and having type InvoiceType:XSDComplexType.

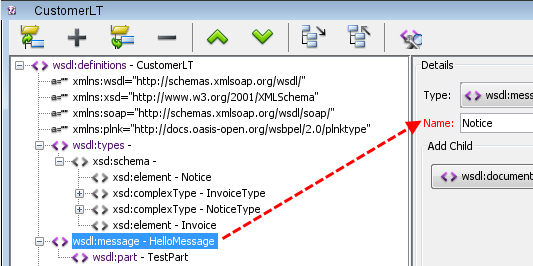

- Select HelloMessage under wsdl:definitions > wsdl:message, and rename it to Notice.

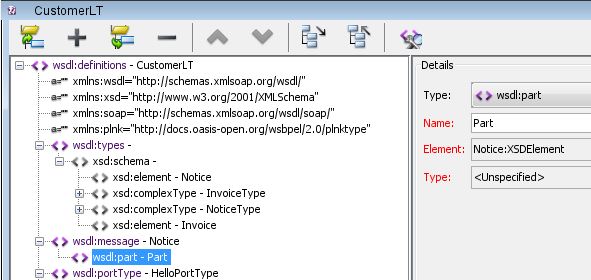

- Select the TestPart under wsdl:message - Notice, then change to name to Part. Specify the element as Notice:XSDElement by clicking the ... button next to Element field.

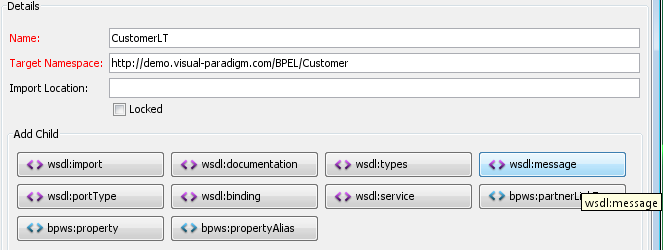

- Select the root node wsdl:definitions, then press the wsdl:message button to create a new message.

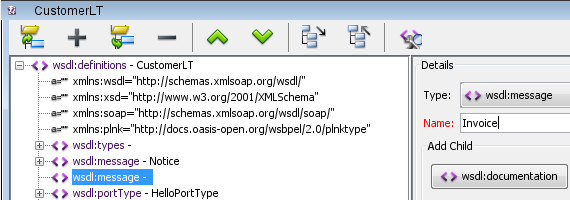

- Name the message as Invoice.

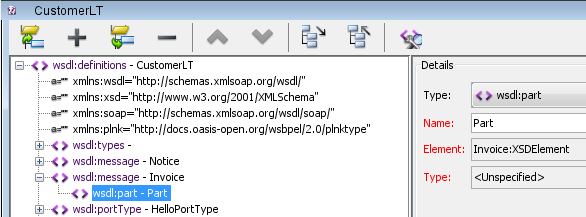

- Create a wsdl:part under Invoice message, name the part as Part, with Element as Invoice:XSDElement.

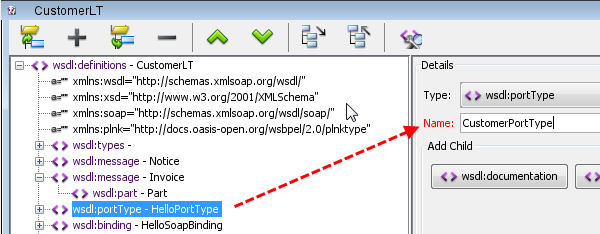

- Rename the wsdl:portType under wsdl:definitions to CustomerPortType.

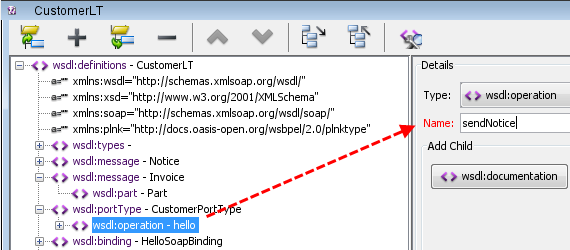

- Rename the wsdl:operation under CustomerPortType to sendNotice.

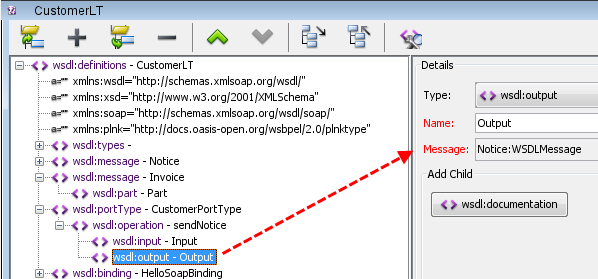

- Rename the wsdl:input as Input, and rename the wsdl:output as Output. The message field will be set to Notice:WSDLMessage by default.

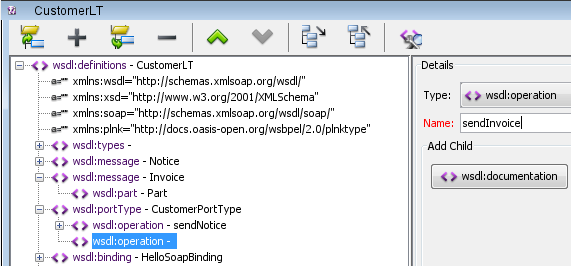

- Create an operation under CustomerPortType, name it as sendInvoice.

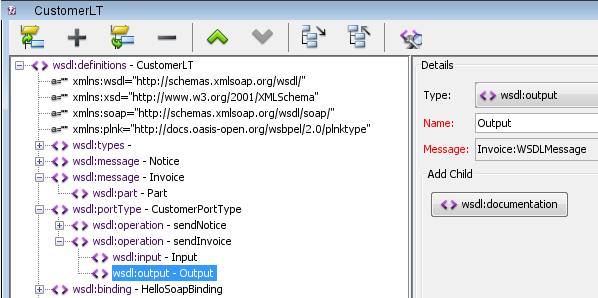

- Create wsdl:input and wsdl:output under sendInvoice operation. Specify the element for both input and output as Invoice:WSDLMessage.

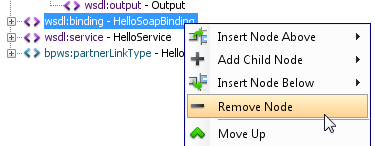

- Right click on node HelloSoapBinding under wsdl:definitions > wsdl:binding and select Remove Node.

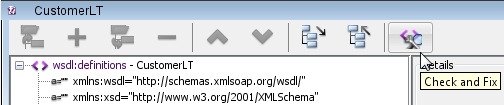

- Press the Check and Fix button in diagram toolbar.

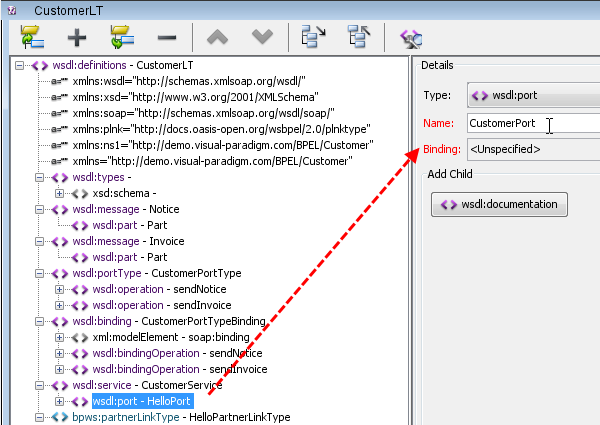

- Rename the HelloService under wsdl:definitions to CustomerService, and rename the HelloPort under CustomerService to CustomerPort.

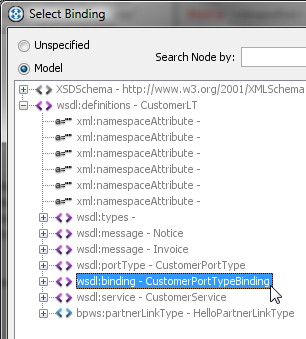

- Click the ... button next to Binding field in CustomerPort, and specify the binding as wsdl:binding - CustomerPortTypeBinding.

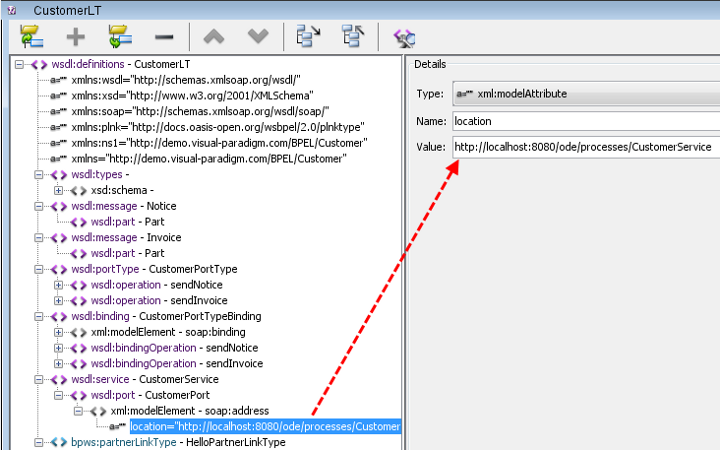

- Enter http://localhost:8080/ode/processes/CustomerService in Value field under CustomerPort > xml:modelElement - soap address > location node.

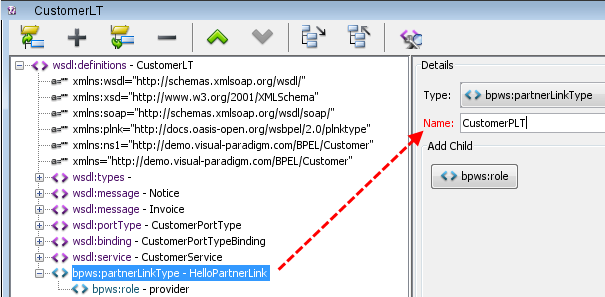

- Rename the HelloPartnerLink under wsdl:definitions to CustomerPLT.

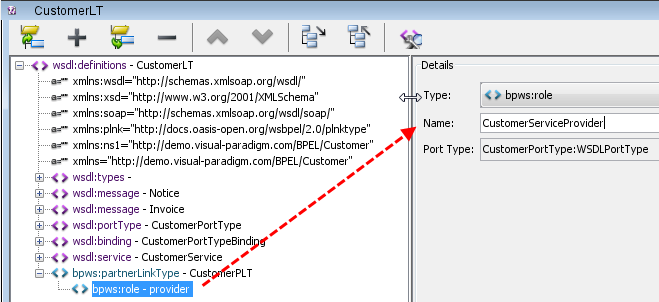

- Rename the provider under CustomerPLT to CustomerServiceProvider.

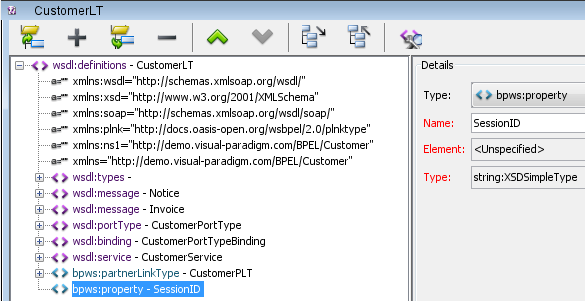

- Create a bpws:property under wsdl:definition, and name it as SessionID, with the type string:XSDSimpleType.

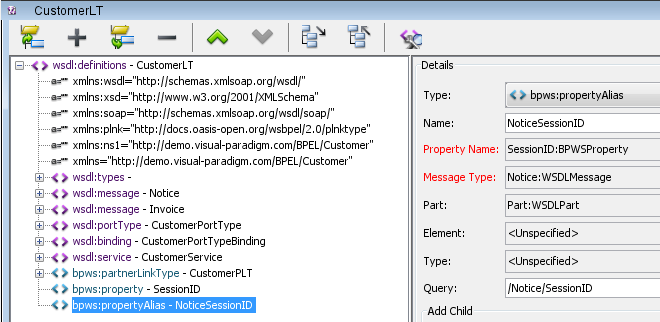

- Create a bpws:propertyAlias under wsdl:definition and with the following configuration
- Name: NoticeSessionID
- Property Name: SessionID:BPWSProperty
- Message Type: Notice:WSDLMessage
- Part: Part:WSDLPart(under wsdl:message - Notice)
- Query: /Notice/SessionID

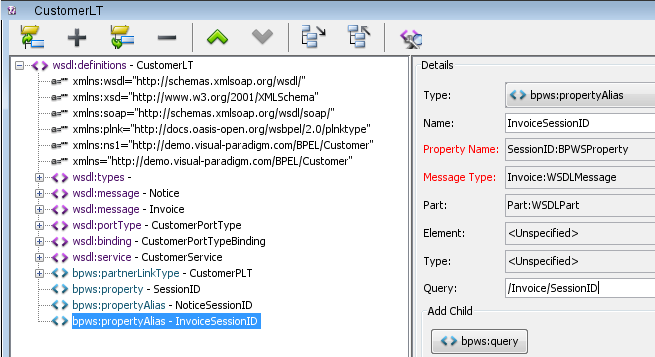

- Create another bpws:propertyAlias under wsdl:definition and with the following configuration
- Name: InvoiceSessionID
- Property Name: SessionID:BPWSProperty
- Message Type: Invoice:WSDLMessage
- Part: Part:WSDLPart(under wsdl:message - Invoice)
- Query: /Invoice/SessionID
