Generate Hibernate map with Oracle database

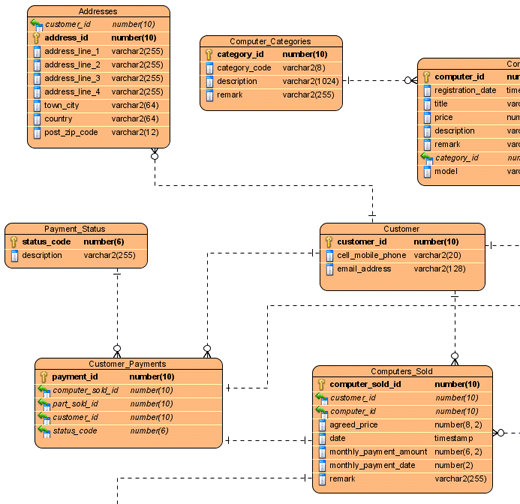

The database design for the Computer Sales project:

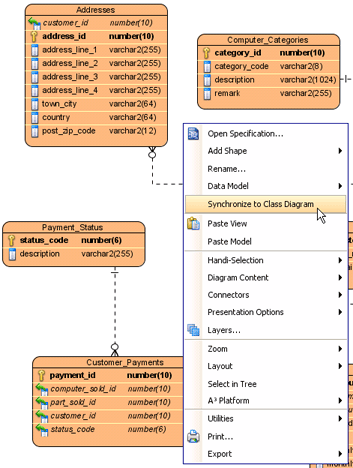

1. In order to generate the Hibernate mapping, you need to synchronize the ERD and class diagram first. Right click on the ERD and select Synchronize to Class Diagram.

2. The Select diagram for synchronize dialog box appear. Select Create new diagram, input Persistent Class Diagram as the diagram name and click Create.

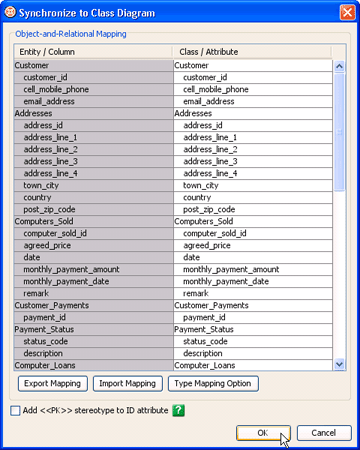

3. The Synchronize to Class Diagram dialog box appear. You may customize the synchronized class/attribute name. Click OK to continue.

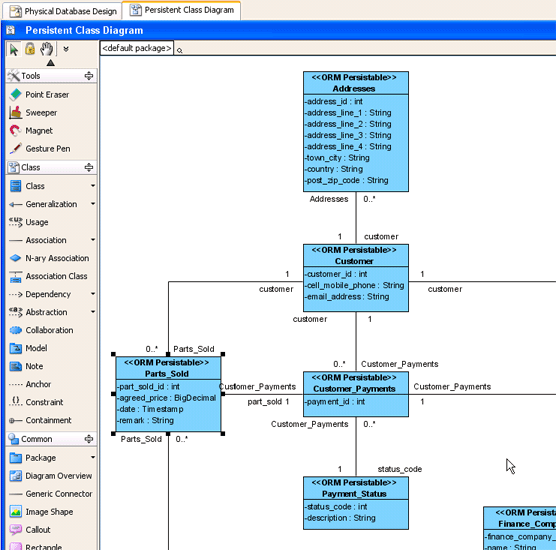

4. The class diagram is produced.

5. Specify com.computersales as the package header.

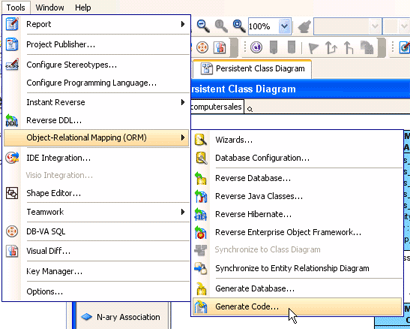

6. To generate hibernate mapping, select Tools > Object-Relational Mapping (ORM) > Generate Code... from the main menu.

7. In the Database Code Generation dialog box, select Code and Database as the generation type.

8. Specify the output path of source files, Hibernate mapping files, DDL and library files.

9. Select DAO as the Persistent API.

10. Make sure the Export to database option in the Database tab is unchecked.

11. Press OK to start the generation.

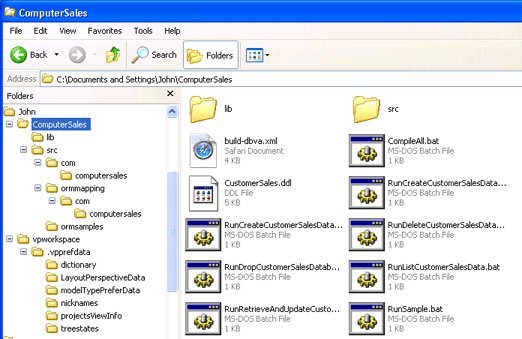

12. Let's take a look at the generated files.

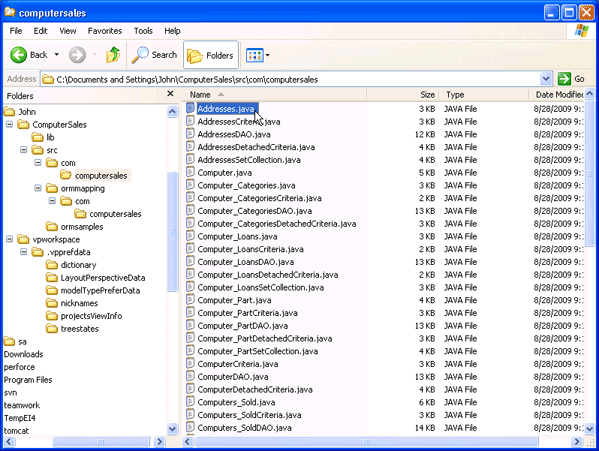

13. The source files are placed at ${outputPath}\src.

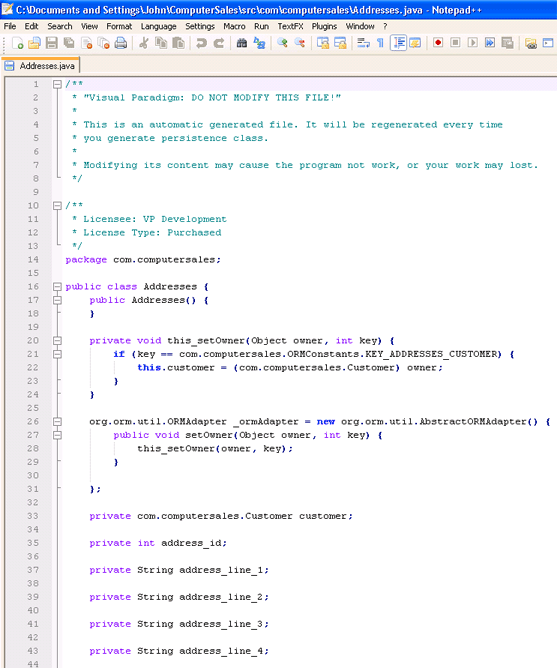

14. Let's open the generated source file.

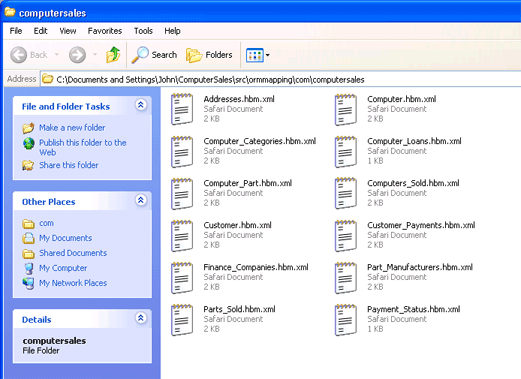

15. The Hibernate mapping files are placed at ${outputPath}\src\ormmapping.

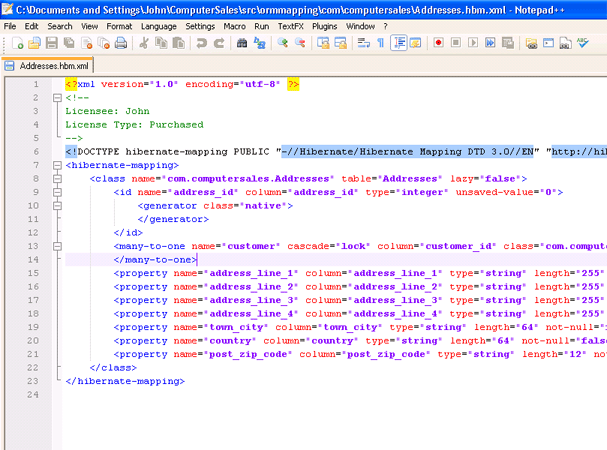

16. Let's open the generated Hibernate mapping file.
