Robust Integration Capability

Export your design into an array of formats that you can open in other major applications.

Export diagrams to various image formats

Visual Paradigm for UML can export diagrams into several image formats, such as JPG, PNG, SVG and EMF. The following screenshots show how to export Visual Paradigm for UML diagrams to image files.

User's Guide

Exporting multiple diagrams as images

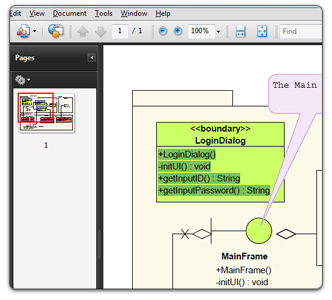

Export diagram to PDF

Visual Paradigm for UML can export diagrams into PDF file. The exported PDF contains vector-based graphic. The benefit of vector-based images graphic is small in size and scalable. The following screenshots demonstrate how to export diagrams to PDF.

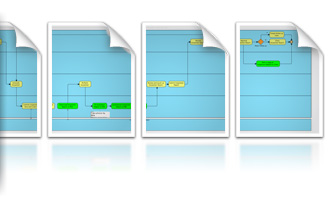

Slice exported diagrams into smaller segments

Visual Paradigm for UML supports slicing big diagram into multiple manageable image files. With this feature, large diagram can be broken down into pieces, to fit into documentations in different size. The following movie demonstrates how to slices exported images.

XML import and export

XML aid information system to share data. Visual Paradigm for UML supports importing and exporting full or part of a project in XML format. The exported XML contains all information of Visual Paradigm project file. There is also an option to export diagram preview images together. The following screenshots demonstrate how to export and import XML.
