Customize Visual Paradigm for UML by XML
Visual Paradigm for UML (VP-UML) allows users to hide some UI widgets by using XML. This tutorial is used to teach you how to remove some UI widgets by XML.
| October 28, 2009 | |
User Rating:
/ 0
|
|
| Views: 670 | |
|
PDF
Link
Link: |
Add comments |
| Edition: Standard or above (Edition comparison) | |
To customize VP-UML:

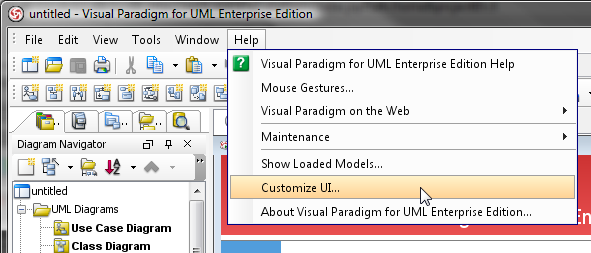

- Select Help > Customize UI...

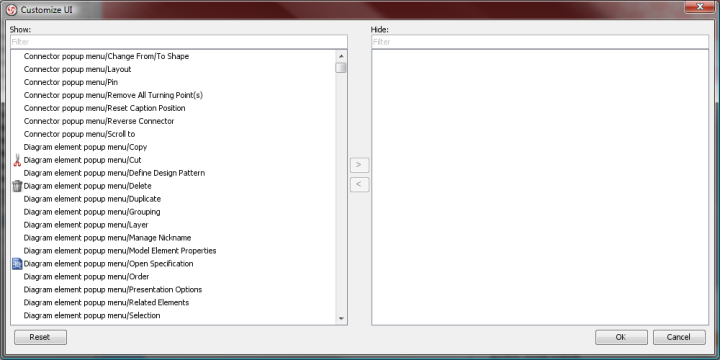

- The Customize UI dialog will be shown.

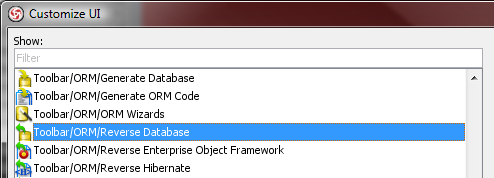

- The feature are grouped based on their nature and location. For example, features named as Toolbar/ORM/Reverse Database means this feature is under the ORM group in the Toolbar, and the Menu/Tools/Object-Relational Mapping (ORM)/Reverses Database means this feature is under the Tools > Object-Relational Mapping (ORM) menu.
- To disable specific diagram, you have to hide out the entry both under the Toolbar also the Menu.

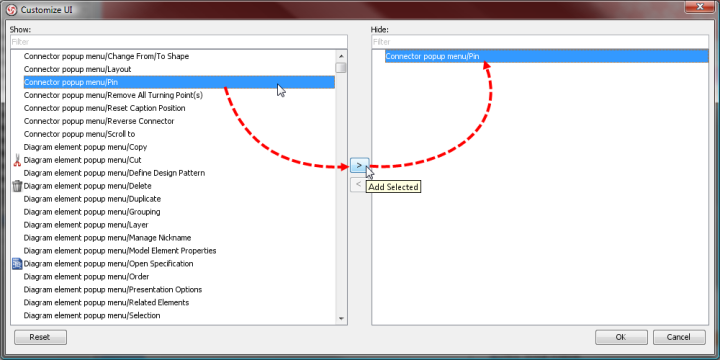

- Select the feature which you want to hide away, and press the > button to move them to the Hide list.

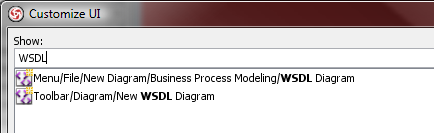

- You can search for the features by entering keywords in the Filter text box.

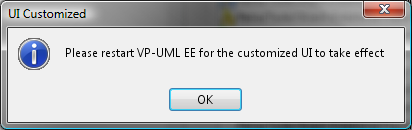

- Once you finish specify which features you like to hide, press OK to commit. A dialog will be shown prompt you to restart the application. The customization will take effect after restart.

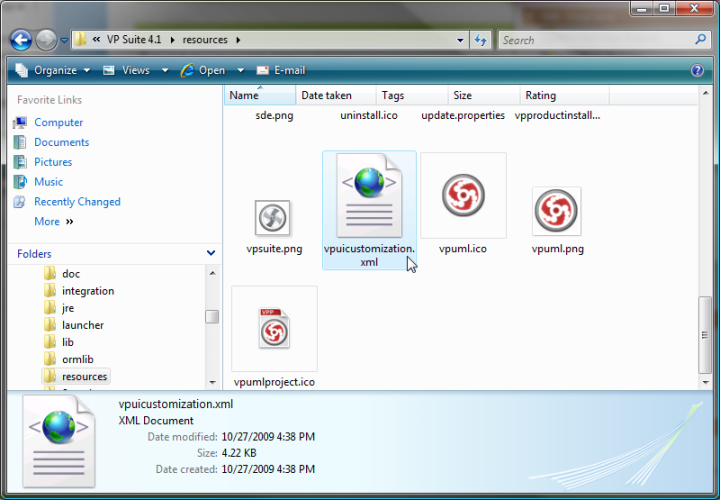

- An XML file vpuicustomization.xml will be created under the resources folder to store your customization setting. You can share this file to your colleagues to apply the customization.
- You can also reset your selection by pressing the Reset button.
