Display Diagram Information on Diagram
Diagram info shape is a table for displaying diagram information. Information displayed in a diagram info shape is linked with the diagram's specification. You may add more items to the info shape in order to add more useful information for a diagram.
| September 27, 2010 | |
User Rating:
/ 2
|
|
| Views: 3,070 | |
|
PDF
Link
Link: |
Add comments |
| Edition: Community or above (Edition comparison) | |
- Download the attached project of this tutorial beforehand.
- Open the project with VP-UML.

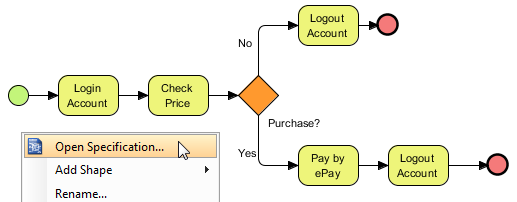

- Right click on the diagram background of Internet Shopping and select Open Specification... from the pop-up menu.

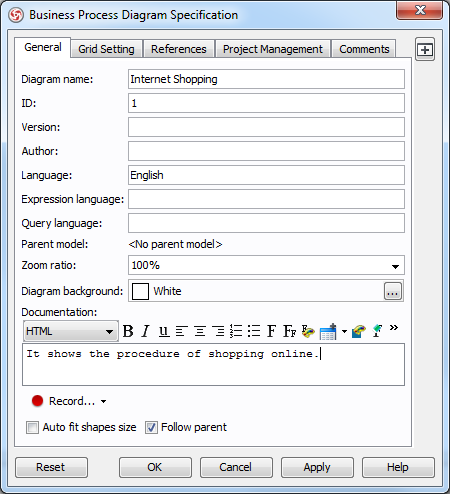

- Enter documentation in the Business Process Diagram Specification dialog box. Click OK button.

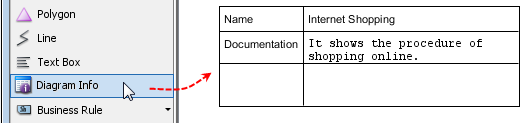

- Select Diagram Info from the diagram toolbar and click it on the diagram where you want to insert the diagram info shape.
- Furthermore, you can add more items for the diagram. Right click on the diagram info shape and select Add Item from the pop-up menu.
- Enter Version as the new item and 1.1 as the version. The following is the completed diagram info shape:
