Draw Entity Relationship Diagram (ERD)
Entity relationship diagram (ERD) is a kind of diagram for presenting visually the structure of relational database. In this tutorial we will make use of ERD to model the database structure of a simple bus route management system.
| May 19, 2010 | |
User Rating:
/ 118
|
|
| Views: 123,849 | |
|
PDF
Link
Link: |
Add comments |
| Edition: Community or above (Edition comparison) | |
- Start VP-UML. Select a new workspace folder for this tutorial.
- Select File > New Project to create a project. Name the project as Bus Route Management and confirm.

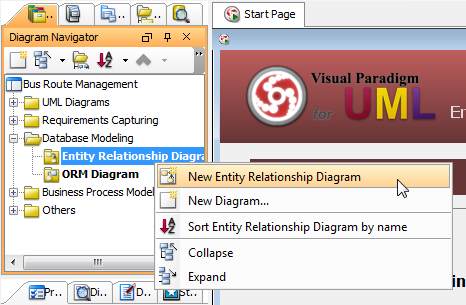

- Create an Entity Relationship Diagram. Right click on Entity Relationship Diagram in Diagram Navigator and select New Diagram from the popup menu.

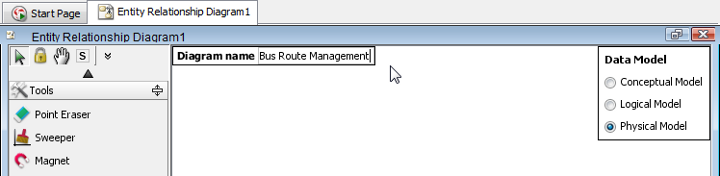

- This creates an ERD. Name the diagram Bus Route Management at the top left corner of the diagram, and press Enter.

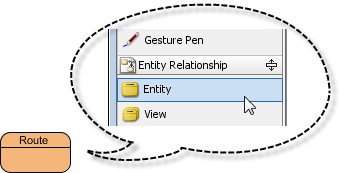

- Let's start by creating the first entity Route. Select Entity in diagram toolbar and click on the diagram to create an entity. Name the entity Route and press Enter to confirm.
- Create columns in Route. Let's start with a primary key. Right click on entity Route and select New Column from popup menu.
- Enter +id : varchar(10) and press Enter. Note that the + sign means that the column is a primary key. Varchar is the column type and 10 is the length.
- Enter fare : float and press Enter, then Esc to create another column.
- Create entity Stop. A bus route have many bus stops, while a stop can be shared by many routes. Therefore, there is an many-to-many relationship between Route and Stop. Move the mouse pointer over Route and press on the resource icon Many-to-Many Relationship.

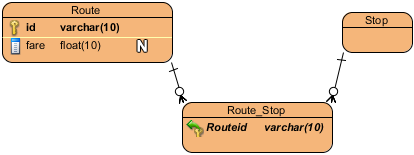

- Drag it out and release the mouse button. Name the new entity Stop, You can see that a linked entity Route_Stop is automatically created in between Route and Stop, with foreign key added.
-
Create the following columns in Stop:
Key Name Type PK id int(10) name varchar(255) terminus blob

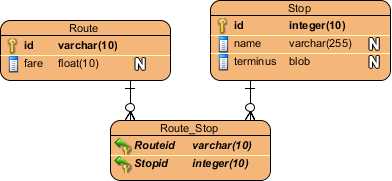

The diagram should now become:

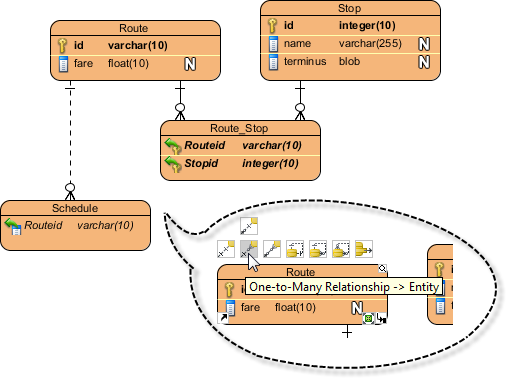

- A route have multiple bus schedules. Create an entity Schedule from Route with a one-to-many relationship. Move the mouse pointer to Route, Make use of the resource icon One-to-Many Relationship to create entity Schedule.
-
Create the following columns in Schedule:
Key Name Type PK id int(10) departure date arrive date -
A schedule is handled by a bus. Create an entity Bus from Schedule, with an one-to-one relationship. Create the following columns in Bus:
Key Name Type PK vehicle_id int(10) fleet_id varchar(10) last_main date

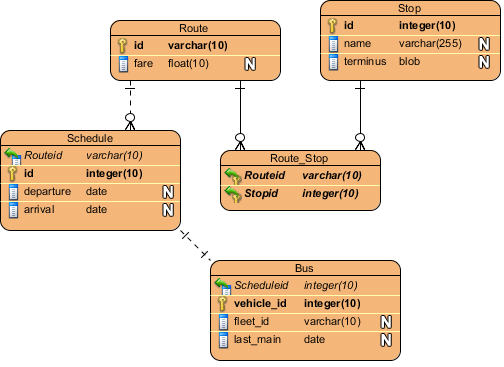

The diagram should become:
-
A bus is driven by a bus driver. Create entity Driver from Bus with a one-to-one relationship. Add the following columns to Driver:
Key Name Type PK id int(10) name varchar(255) employ_date date

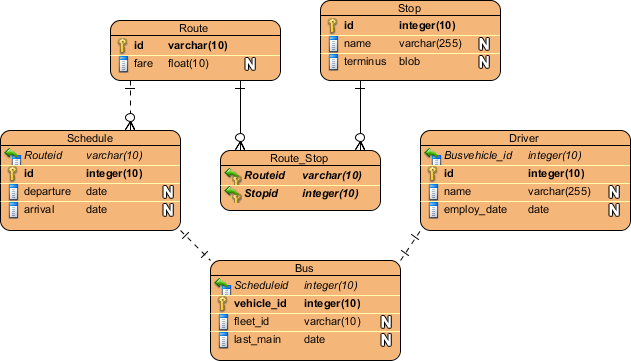

This is the final ERD.
