Interface overview of A3 Platform Activity view

Activity is work that perform within a Software Development Lifecycle. An Activity can be atomic or compound, which breaks work down work to finer level of detail through the use of Sub-Activities. Activities view is the page that lets you create Activities. You also can list Activities by applying appropriate filters.

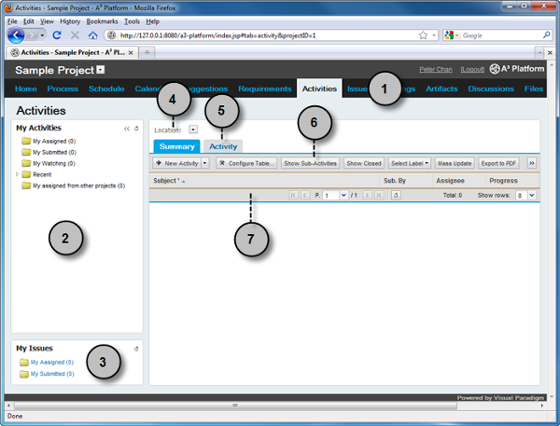

Activity view

Region	Description
1	Navigate to another core function of A3 Platform by pressing on a tab.
2	List/open an Activity based in different categories.
3	List/open an Issue based in different categories.
4	Select a process cell (i.e. location). The Summary page lists Activities saved to the selected process cell. Activities reported in Activity tab will automatically be saved to the selected process cell.
5	Summary tab lists Activities below. Activity tab is where you can read or report an Activity.
6	Toolbar. Here are the supported functions when Summary tab is opened: New Activity - Click to open a blank form of Activity where you can fill in the detail of Activity and create it. Configure Table - Press on it to set the columns, sorting of columns as well as the number of row to show per page for the table of Activities. Show Sub-Activities - Press on it to list also Activities that Sub-Activities of others. Show Closed - Press on it to list also Activities that have already been closed. Select Label - Filter Activities by their labels. Only Activities marked with selected labels will be listed. Mass Update - Press on it to set the changes you want to apply on all the Activities checked in the table of Activities, to perform a mass modification on them. Export to PDF - Press on it to export selected Activity(s) to PDF file. Excel - Press on it and select whether to export or import Excel of Activities. Search - Click on it jump to the Search page to search for an Activity. Refresh - Update the table of Activities. <drop-down of filter> - Filter Activities base on the following categories - My Assigned / My Submitted / My Watching. Here are the supported functions when Activity tab is opened: New Activity - Click to open a blank form of Activity where you can fill in the detail of Activity and report it. Create Similar Activity - Press on it to create a new Activity base on the opening one. Configure > Label - Press on it to create, edit or delete labels that can be set to Activities. Configure > Type - Press on it to create, edit or delete custom attributes for Activities. Search - Click on it jump to the Search page to search for an Activity. Refresh - Update the table of Activities. Edit - Press to edit the opening Activity. Unpress to exit from editing. Print - Click on it to print the opening Activity. Watch - Click to watch the opening Activity. Watching means to monitor the Activity. People who are watching an Activity will be notified when the Activity is being updated. Show Link - Press to show the URL of Activity. You can browse the Activity by visiting the URL.
7	When Summary tab is selected, a list of Activities is shown here. When Activity tab is selected, this is where the form of Activity appears.

Overview of Activity view

Chapter 1. Introduction to Activity view

Table of Contents

Chapter 2. Find an Activity
