Creating deployment diagram

Deployment diagram shows the physical aspects of an object-oriented system. It also shows the configuration of run time processing nodes and artifacts.

Creating deployment diagram

  • Click on UML on toolbar and select Deployment Diagram from the drop down menu.

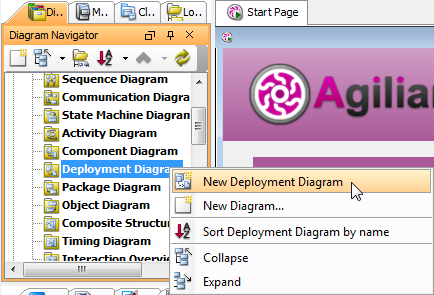

  • Right click on Deployment Diagram in Diagram Navigator and select New Deployment Diagram from the popup menu.
  • Select File > New Diagram > UML Diagrams > Deployment Diagram from the main menu.
Create deployment diagram
Create deployment diagram



Creating node model element

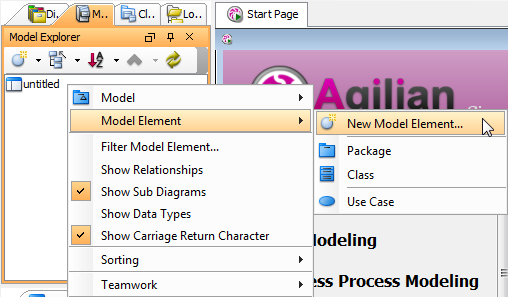

To create node model element, right click on the background of Model Explorer and select Model Element > New Model Element from the pop-up menu.

Create model element
Create model element

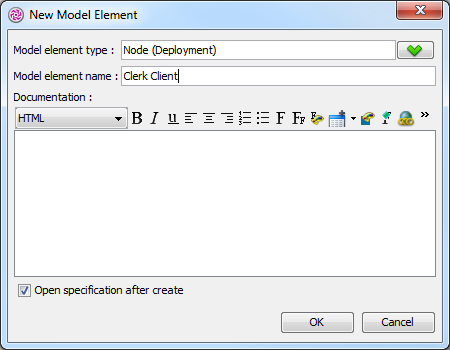

In the New Model Element dialog box, type Node (Deployment) in Model element type, enter the node name in Model element name. Click OK button to confirm.

Create node
Create node

As a result, the Node Specification dialog box will pop out when the node is created.

Node is created
Node is created

Creating instance of node

To create instance of node, click Instance Specification on the diagram toolbar and then click on the diagram.

Create instance specification
Create instance specification

As a result, an instance specification will be created.

Instance specification created
Instance specification created

Selecting classifiers

To specify classifiers for an instance specification, right click on the target instance specification and select Select Classifier > Select Classifier... from the pop-up menu.

Select classifier
Select classifier

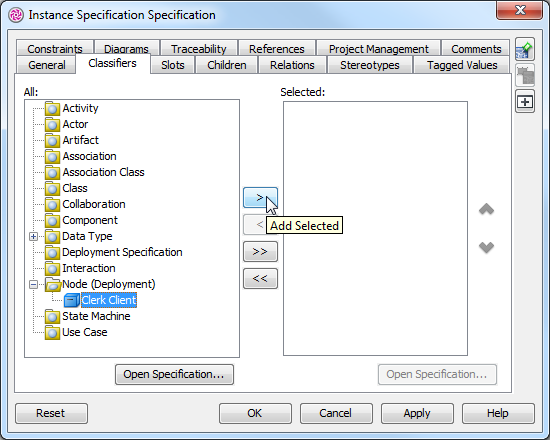

When the Instance Specification Specification dialog box pops out, the Classifiers tab is opened by default. Select the classifier(s) on the left and click Add Selected button to add them.

Add selected classifiers
Add selected classifiers

Click OK button to close the specification dialog box. Finally, the selected classifier is assigned to the instance specification.

Classifiers assigned
Classifier is assigned

Creating link

To create link from instance specification, move the mouse over the target shape and press its resource icon Link -> Instance Specification.

Create link
Create link

Drag to empty space of the diagram to create a new instance specification, or drag to an existing instance specification to connect to it. Release the mouse button to create the link.

Link created
Link created

Creating instance of component

Similar to creating instance of node, you first create a component model element, and then create an instance specification, but in this case, you assign a component to the instance specification as classifier. After that, the instance specification will be displayed as a component.

Instance of component
Instance of component

Creating dependency

To create dependency, click Dependency on the diagram toolbar.

Create dependency
Create dependency

Drag from the source shape, move the mouse over the target shape and then release the mouse button to create the dependency.

Dependency created
Dependency created

Continue to complete the diagram.

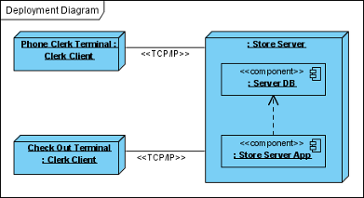

Completed diagram
Completed diagram
