Choreography task and sub-process

A choreography is a type of process which defines the sequence of interaction between participant. Unlike a standard BPMN process, which defines the flow of activities in a process. Choreography does not belong to any pool. It exist outside or in between pools, and shows the messages that pass between pools.

Choreography task

A choreography task is an atomic activity which represents an interaction among participants (pools), and consists of one or more messages that exchange between the pools. A choreography shape is formed by multiple parts. We call them bands. The name of choreography task and each of the participants are all displayed in different bands.

Setting participants and initiating participant

1. Right click on the choreography task and select Open Specification... from the popup menu.
2. In the specification dialog box, choose the pools for participant 1 and 2.
3. Select the pool which starts the interaction from the drop down menu of Initiating participant.

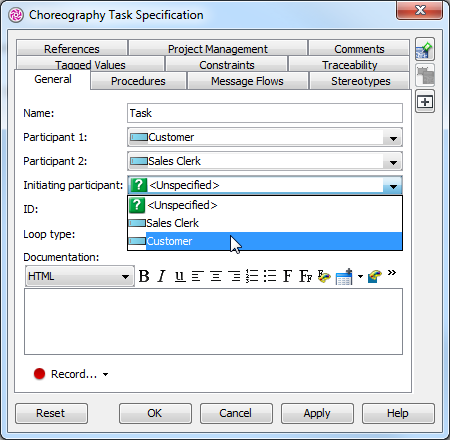

   Selecting initiating pool

4. Click OK to confirm editing and go back to diagram.


   Choreography task

Choreography sub-process

A choreography sub-process is a compound activity in that it has detail that is defined as a flow of other activities.

Setting participants and initiating participant

1. Right click on the choreography sub-process and select Open Specification... from the popup menu.
2. In the specification dialog box, open the Participants tab.
3. Select the pools the choreography sub-process involve and click > to assign them.
4. Check the initiating pool.

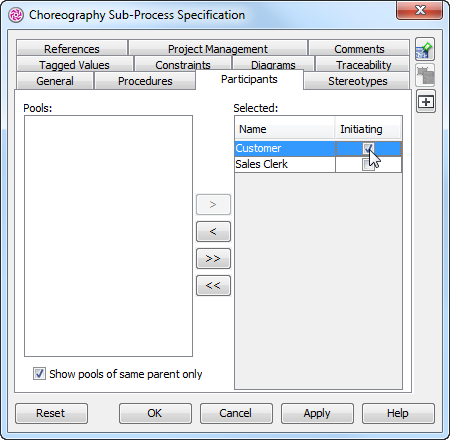

   Select initiating participant

5. Click OK to confirm editing and go back to diagram.


   Choreography sub-process
