Property value

Property value is an element component in a report template, which represents the access of certain property of a diagram, model element or diagram element. For example, to print out the ID (property) of a use case. You can add property value into a diagram loop, a diagram summary, an element loop, an element summary. Property value added to a summary component will become a property column in summary table.

Adding property value into a loop or summary

To add property value into a loop or summary:

1. Select the loop or summary that you want to add property value under it.


   Selecting a diagram loop

2. Click on the Add Property Value button from the toolbar of loop.


   Adding property value

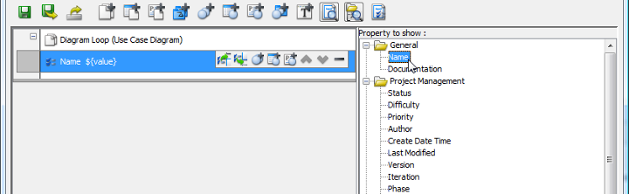

3. On the right hand side of the template editor, select the property to access.


   Selecting a property to access

Adding a property below another property

To add property below another property:

1. Select an existing property value.


   Selecting a property value

2. Click on the Add Property Value Below or Add Property Value Above button.


   To add a property value below an existing one

3. On the right hand side of the template editor, select the property to access.
