Setting line style
Connectors are the lines that connect two shapes. It is much harder for us to distinguish the straight spaghetti-like connectors when more shapes and more connectors are created. BP-VA provides five connector styles to help you deal with the connectors, namely Rectilinear, Oblique, Curve, Round Oblique and Round Rectilinear.
Setting connector line style

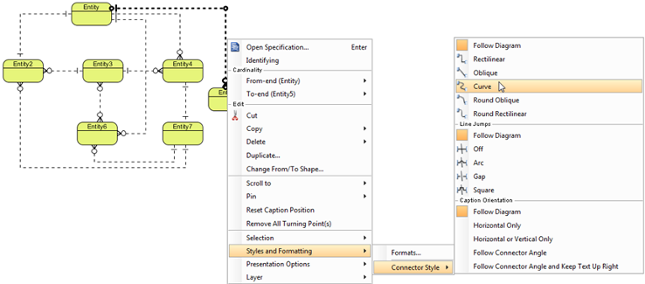

To change the style of a particular line, right click on the target connector and select Style and Formatting > Connector Style and one of five line style options from the pop-up menu.
 |
| Change line style |
As a result, the connector is changed into the selected line style.
 |

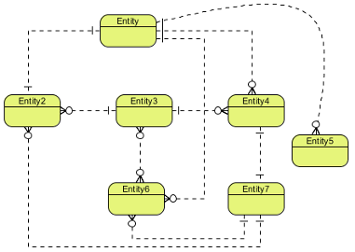

| Curve line |
Line style options
|
||||||||||||
| The description of five line style options |
Setting diagram base line style
Additional to the five styles mentioned above, Follow Diagram feature is provided. If you want to change all connectors in the diagram, select Follow Diagram and you don't have to change the line one by one after all.

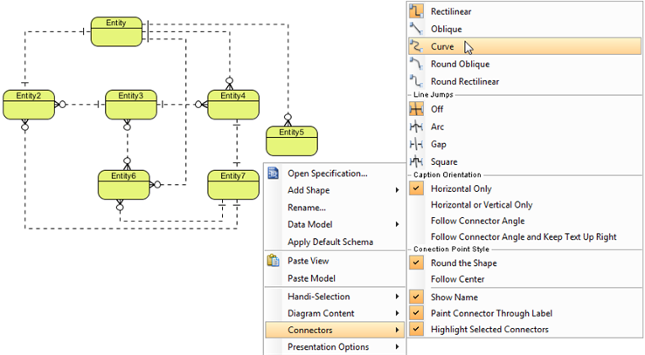

To change the style of all lines on diagram, right click on the diagram background and select Connectors and one of five line style options from the pop-up menu.
 |
| Change diagram line style |
As a result, all lines on the diagram are changed into the selected line style.
 |

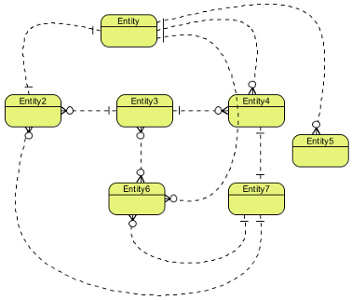

| All lines are changed into curve |
