Format copier

Format is defined as the properties for a shape in terms of fill, line and font. Shapes are formatted for two major reasons: making your project more attractive and giving emphasis on the meaning of shapes. However, it would be troublesome and time-consuming to repeat the same action when you need other shapes to have exactly the same format as the previous one you have already done. Format copier can deal with this problem for you. It's so handy that you can clone the formatting properties from one shape to another or even more.

To copy format to another shape


If you want another shape to have exactly the same formatting properties as the previous one you have done, you can simply:

  1. Click on the shape that you want its format to be cloned.
  2. Click on the Copier button in toolbar.
    Click Copier button
    Click Copier button
  3. Click the shape you want to format.

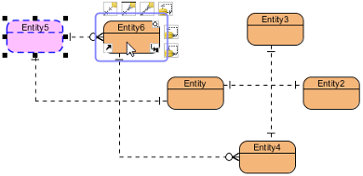

    Clone the format property from one shape to another
    Clone the format property from one shape to another
NOTE: You can copy formatting to another type(s) of shape.

To copy format to multiple shapes

If you want the format properties of your previous shape to be cloned to more than one shapes, you should:

  1. Click on the shape that you want its format to be cloned.
  2. Double click the Copier button on toolbar.
  3. Click the shapes you want to format one by one.

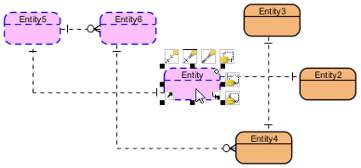

    Clone the format property from one to multiple shapes
    Clone the format property from one to multiple shapes
NOTE: If you don't want the format properties to be cloned to other shapes any more, you should cancel cloning by clicking the Copier button once again.
NOTE: You can only copy format to shapes within the same diagram.
