Visualize model elements on diagram

Model elements are fundamental parts of a project. While a model element can be shown on more than one diagram, a diagram can also show a model element more than once. They, which can be found in Model Explorer, contain metadata and can be shown in diagram for visualizing the data.

To visualize a model element or several model elements:

1. Select a model element (or as many as model elements you preferred) from Model Explorer.


   Select several model elements from Model Explorer

2. Hold on the mouse and drag it on the diagram pane. As a result, the views of the selected model element(s) will be shown on diagram.

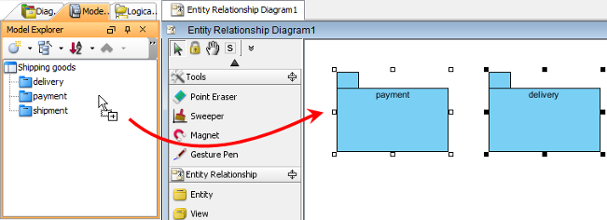

   Drag the model elements on diagram
