Completion

Sometimes, just by watching the simulacian outcome is not enough in finding out the bottleneck, especially when the diagram is large, and has many, many bottlenecks. In such cases, you can produce charts for simulacian outcome, which helps quantify resource consumption and queuing time for each flow object.

To read the charts, click Simulacian Charts in simulacian control panel.

Open simulacian charts window

Completion chart

The completion chart primarily shows the status of inputs completion against time.

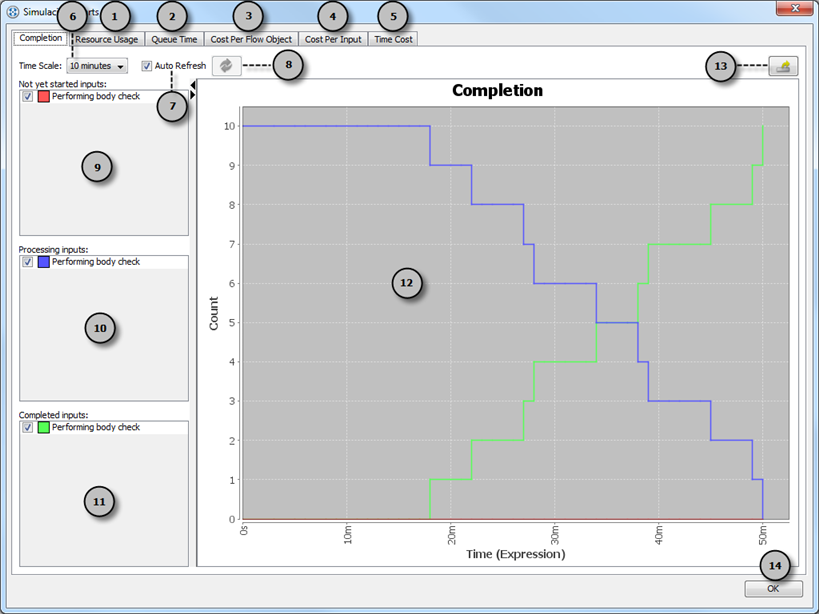

An overview of completion chart

No.	Name	Description
1	Resource usage	Click to show resource usage chart.
2	Queue time	Click to show queue time chart.
3	Cost Per Flow Object	Click to show cost per flow object chart.
4	Cost Per Input	Click to show cost per input chart.
5	Time Cost	Click to show time cost chart.
6	Time scale	Control the length of chart by selecting a time scale.
7	Auto refresh	Check to let the chart body auto update against chart settings such as time scale and selection of inputs. Uncheck to update manually by clicking Refresh.
8	Refresh	Click to update the chart body against the chart settings such as time scale and selection of inputs. This button is available only when Auto Refresh is unchecked.
9	Not yet started inputs	Check or uncheck the inputs to show or hide in chart the change of the amount of not-yet-started inputs throughout simulation.
10	Processing inputs	Check or uncheck the inputs to show or hide in chart the change of the amount of processing inputs throughout simulation.
11	Completed inputs	Check or uncheck the inputs to show or hide in chart the change of the amount of completed inputs throughout simulation.
12	Chart body	The chart body.
13	Export	Click to export the opening chart to Microsoft Excel or image file.
14	OK	Click to close the simulacian charts window and go back to the diagram.

Description of completion chart
