Sub-process
In BPMN, there are two kinds of activity - task and sub-process. To represent either an empty BPEL activity or an invoke of BPEL activity, you use a task with proper type set. Sub-process, on the other hand acts as a placeholder of a set of tasks. You can draw a sub-process, expand it and draw the tasks in the sub-process diagram. Note that only sub-process with type Embedded is considered in BPEL generation. The other types will be ignored.
 |

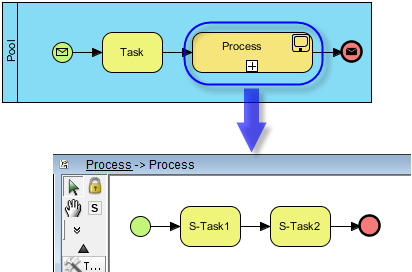

| A sub-process and its sub-process diagram |
When you generate BPEL, the flow modeled in sub-process diagram will be merged to the ordinary flow. The following code fragment shows a BPEL file generated from the above BPDs. The empty activities STask1 and STask2 were modeled in the sub-process diagram, and they follow the empty activty Task in the main flow.
<?xml version="1.0" encoding="UTF-8"?>
<process name="BusinessProcessDiagram1" targetNamespace="http://BusinessProcessDiagram1" xmlns="http://schemas.xmlsoap.org/ws/2003/03/business-process/" xmlns:Pool="http://a" xmlns:tns="http://BusinessProcessDiagram1" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
<partnerLinks>
<partnerLink myRole="provider" name="Pool" partnerLinkType="Pool:PartnerLinkType"/>
</partnerLinks>
<variables>
<variable messageType="Pool:Message" name="Variable"/>
</variables>
<sequence>
<receive createInstance="yes" operation="perform" partnerLink="Pool" portType="Pool:ProviderPortType" variable="Variable"/>
<empty name="Task"/>
<empty name="STask1"/>
<empty name="STask2"/>
<reply operation="perform" partnerLink="Pool" portType="Pool:ProviderPortType" variable="Variable"/>
</sequence>
</process>
<process name="BusinessProcessDiagram1" targetNamespace="http://BusinessProcessDiagram1" xmlns="http://schemas.xmlsoap.org/ws/2003/03/business-process/" xmlns:Pool="http://a" xmlns:tns="http://BusinessProcessDiagram1" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
<partnerLinks>
<partnerLink myRole="provider" name="Pool" partnerLinkType="Pool:PartnerLinkType"/>
</partnerLinks>
<variables>
<variable messageType="Pool:Message" name="Variable"/>
</variables>
<sequence>
<receive createInstance="yes" operation="perform" partnerLink="Pool" portType="Pool:ProviderPortType" variable="Variable"/>
<empty name="Task"/>
<empty name="STask1"/>
<empty name="STask2"/>
<reply operation="perform" partnerLink="Pool" portType="Pool:ProviderPortType" variable="Variable"/>
</sequence>
</process>
Creating an embedded sub-process
- Select Embedded Sub-process in diagram toolbar.
Selecting Embedded Sub-Process from diagram toolbar - Click inside the pool to create an embedded sub-process. If you tend to create a sub-process through the resource-centric interface of the previous flow object, you can change the type by right clicking on the sub-process and selecting Type > Embedded Sub-Process from the pop-up menu.
- Click on the + icon at the bottom of embedded sub-process. You can now model the sub-process in the diagram created.
To expand a sub-process
