Importing Rational Software Architect DNX
VP-UML supports importing drawing drew in Rational Software Architect with a .dnx extension. By importing a drawing, all diagrams, shapes and model information will be imported.
- Save the drawing in Rational Software Architect.

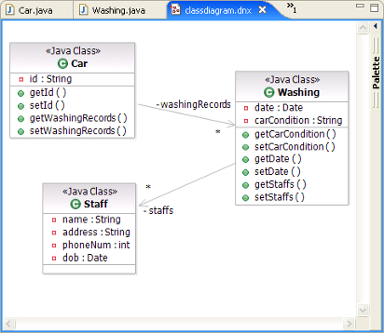

A Rational drawing - To import the drawing into VP-UML, select File > Import > Rational DNX... in the main menu of VP-UML.
- In the Import Rational Diagram DNX dialog box, specify the file path of the .dnx file and click OK.
- After importing is completed, you can then double click on the diagram node to open the diagram.
Diagram Navigator listing the imported diagram(s)
