Importing NetBeans 6.x UML diagrams

1. Here is a NetBeans UML Diagram:

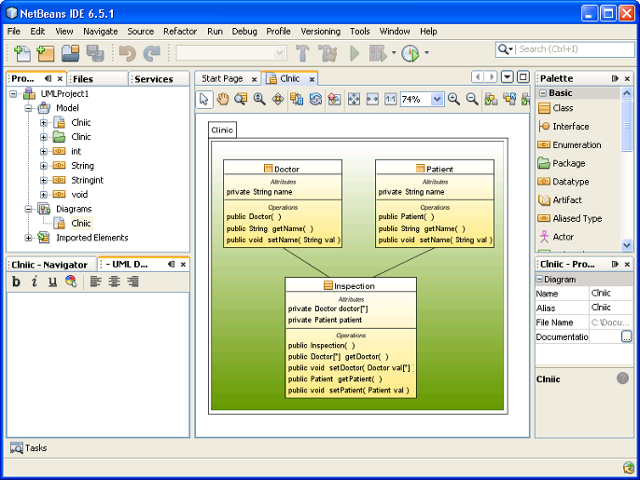

   A Class Diagram drew in NetBeans

   To import a NetBeans UML project into VP-UML, select File > Import > NetBeans UML Project... in the main menu of VP-UML.
2. Specify the file path of the NetBeans project.

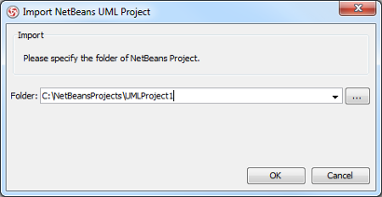

   Specify NetBeans UML Project path

3. Click OK to start importing. When import is completed, the message pane will pop up with a notification.
   The drawings can then be accessible in the Diagram Navigator.


   Diagram Navigator listing the imported diagram(s)

   You can then double click on the diagram node to open the diagram.


   A class diagram imported from NetBeans UML Project

   NOTE:

   Due to different ways in presenting diagrams in VP-UML and NetBeans, the imported shapes may contain unnecessary spaces in them. To fit a shape's size, move the mouse cover over it and press on the resource icon at the bottom right of shape. To fit size for all shapes on a diagram, right click on the diagram background and select Diagram Content > Auto Fit Shapes Size in the popup menu.
