Exporting XML

Interoperability is the ability to exchange information between two systems and to use the information that has been exchanged. VP-UML supports interoperability with XML file. You can export project data to an XML, manipulate it externally, and feed the changes back to VP-UML. In this chapter, you will see how to export XML file of whole project or specific diagram in project.

Exporting whole project to XML

Select File > Export > XML... from the main menu.
Specify the output destination.
Check Export project to export everything in the project to XML, or keep it unchecked, and check the diagram(s) to export only their content.
Click Export. Upon finishing, you can visit the output destination specified to obtain the XML.

Exporting active diagram to XML

Right click on diagram and select Export > Export XML... from the popup menu.
In the Export to XML dialog box, specify the output destination, which is a folder for containing the exported XML files and optionally the image files of diagrams.
Click Export.

Overview of exporting XML

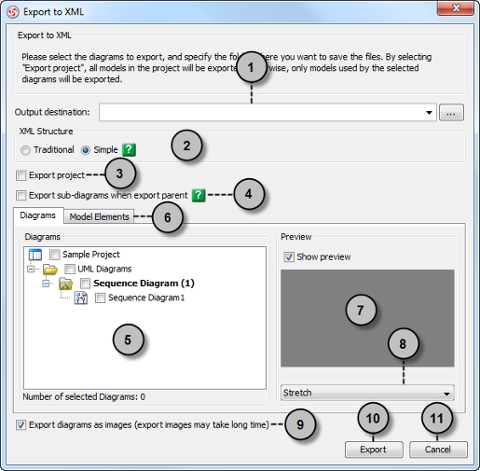

Overview of Export XML dialog box

No.	Name	Description
1	Output destination	The location where you want to save the file.
2	XML structure	Controls how model data is to be presented in the exported XML file. Traditional: XML elements are named in more general manner. For example, Model, StringProperty, etc. Simple: XML elements are named using the name of the model. For example, UseCase, Frame, etc.
3	Export project	By checking Export project, all models in the project will be exported.
4	Export sub-diagrams when export parent	By selecting Export sub-diagrams when export parent, the sub-diagram(s) will also be exported when the parent diagram(s) is exported. For example, package MyWorks contains diagrams A and B. If you select to export diagram A, its parent "MyWork" will get exported, too. With the option Export sub-diagrams when export parent on, B will get exported too since B is a sub-diagram of package MyWorks. By turning off the option, B will be ignored when export.
5	Diagram list	A list of diagram of your project. Select the diagrams to export to XML.
6	Model elements	A list of model elements of your project. Select the model elements to export to XML.
7	Preview window	By checking the selected diagram and Show preview, it will be shown in preview window.
8	Preview mode	You can choose either Stretch or Real size to preview your diagram. Stretch: The ratio of your diagram will be fit in the size of preview window. Real size: The ratio of your diagram will be shown on the preview window as its real size.
9	Export diagrams as images	When checked, image file of the selected diagrams will also be exported along with the exported XML.
10	Export	Click Export to proceed with exporting to XML.
11	Cancel	Click Cancel to discard exporting to XML.

Description of Export XML dialog box

Exporting diagrams to XML with command line interface

Start the command console.

In the console, change directory to the scripts folder and execute ExportXML with parameters required.

Parameters for ExportXML

This displays the usage of the command. Below is a description of parameters:

Parameter	Description	Example
-project	Project path	C:\Demo\Demo.vpp
-out	Folder for storing the exported XML and images	C:\Demo\Output
-diagram	One or more diagrams to be exported	"Diagram A" "Diagram B"
-noimage	Do not export image files for diagrams	N/A

Parameters for ExportXML

Upon finishing, you can visit the output destination specified to obtain the XML files.
