Exporting VP project

Interoperability is the ability to exchange information between two systems and to use the information that has been exchanged. VP-UML supports interoperability with native .vpp project file. You can export some of the diagrams to a project file, send to your team member for editing, and feed the changes back to VP-UML. In this chapter, you will see how to export project file for diagrams in project. To export VP project:

Select File > Export > VP-UML Project... from the main menu.
Specify the output destination.

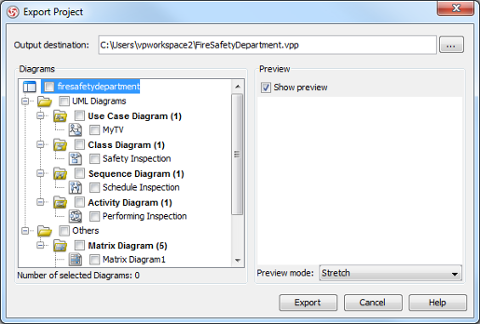

Inputting output destination
Check in the diagram tree the diagrams to export. If you want to export the whole project, check the top most root node.
Click Export button. Upon finishing, you can visit the output destination specified to obtain the .vpp project file.

Overview of exporting VP project

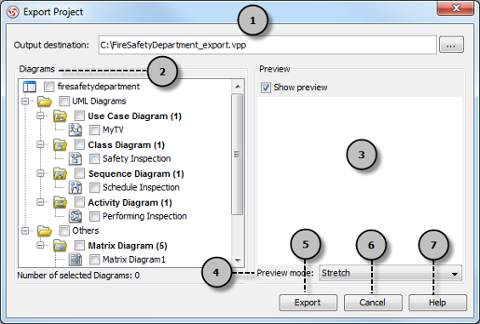

Overview of Export Project dialog box

No.	Name	Description
1	Output destination	The location where you want to save the file.
2	Diagrams	All diagrams in your project will be shown in here.
3	Preview window	By checking the selected diagram and Show preview, it will be shown in preview window.
4	Preview mode	You can choose either Stretch or Real size to preview your diagram. Stretch: The ratio of your diagram will be fit in the size of preview window. Real size: The ratio of your diagram will be shown on the preview window as its real size.
5	Export	Click Export to proceed with exporting to VP project.
6	Cancel	Click Cancel to discard exporting to VP project.
7	Help	More information about how to export VP Project can be obtained by clicking this button.

Description of Export Project dialog box
