Printing a Diagram with Quick Print

In VP-UML, you can print a diagram with simple and easy setting by using quick print feature. The Quick Print feature allows you to print diagrams without previewing them, hence speeding up the print job.

Printing with quick print

To perform quick print:

Select File > Quick Print... from main menu.

NOTE: Alternatively, you can select Print > Quick Print... on the toolbar to launch quick print.
In the Quick Print dialog box, select printout setting for the diagram.
Click OK button to proceed printing.

The overview of Quick Print

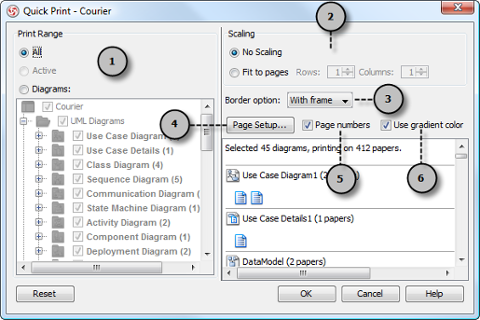

Quick Print dialog box

No.	Name	Description
1	Print Range	Click on one of the options to specify the print range: All - Print all the diagrams within the current project. Active - Print only the active diagram. Diagrams - Check from the diagram tree to select the diagram(s) for printing.
2	Scaling	Select No scaling to print with diagrams' original size. Numbers of pages used for each diagram are subject to the scale of diagrams. Select Fit to pages to print with specified number of pages per diagram with respect to the specified number of rows and columns.
3	Border option	Select a border option of printout.
4	Page Setup...	It allows you to specify the page size, the orientation as well as the margins of the pages.
5	Page numbers	Select it to print diagrams with page number.
6	Use gradient color	Select it to use gradient color in printout.

Details of quick print dialog box
