Simulacian charts

Sometimes, just by watching the simulacian outcome is not enough in finding out the bottleneck, especially when the diagram is large, and have many, many bottlenecks. In such cases, you can produce charts for simulacian outcome, which helps quantify resource consumption and queuing time for each flow object.

To read the charts, click Simulacian Charts in simulacian control panel.

Open simulacian charts window

Completion chart

The completion chart primarily shows the status of inputs completion against time.

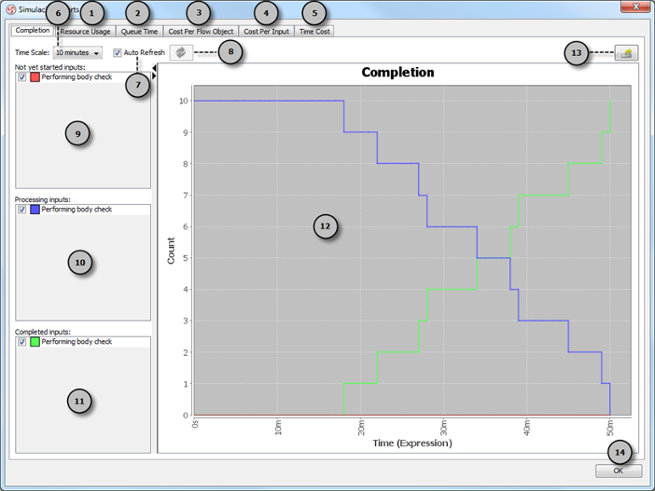

An overview of completion chart

No. Name Description 1 Resource usage Click to show resource usage chart. 2 Queue time Click to show queue time chart. 3 Cost Per Flow Object Click to show cost per flow object chart. 4 Cost Per Input Click to show cost per input chart. 5 Time Cost Click to show time cost chart. 6 Time scale Control the length of chart by selecting a time scale. 7 Auto refresh Check to let the chart body auto update against chart settings such as time scale and selection of inputs. Uncheck to update manually by clicking Refresh. 8 Refresh Click to update the chart body against the chart settings such as time scale and selection of inputs. This button is available only when Auto Refresh is unchecked. 9 Not yet started inputs Check or uncheck the inputs to show or hide in chart the change of the amount of not-yet-started inputs throughout simulation. 10 Processing inputs Check or uncheck the inputs to show or hide in chart the change of the amount of processing inputs throughout simulation. 11 Completed inputs Check or uncheck the inputs to show or hide in chart the change of the amount of completed inputs throughout simulation. 12 Chart body The chart body. 13 Export Click to export the opening chart to Microsoft Excel or image file. 14 OK Click to close the simulacian charts window and go back to the diagram.

Description of completion chart

Resource usage chart

The resource usage chart shows the percentage of resource consumption throughout simulation. If a resource has its peak reaching 100%, it means that the allocation of that resource is in optimum state. If the peak is below 100%, it means that some of the resources are not used throughout the simulation, which usually signifies that they are wasted, and you should consider to adjust the amount of available resource to optimize the resource consumption.

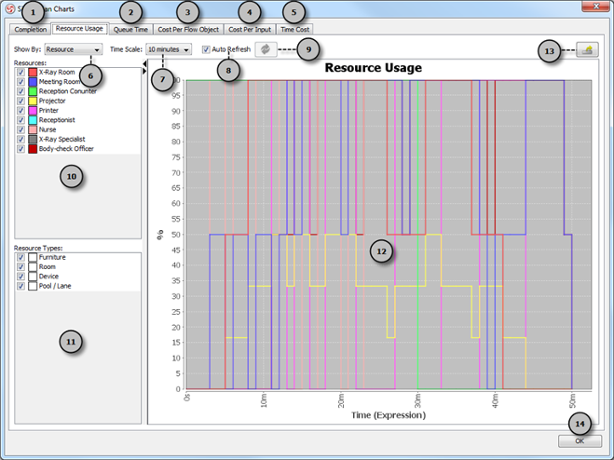

An overview of resource usage chart

No. Name Description 1 Complete Click to show completion chart. 2 Queue time Click to show queue time chart. 3 Cost Per Flow Object Click to show cost per flow object chart. 4 Cost Per Input Click to show cost per input chart. 5 Time Cost Click to show time cost chart. 6 Show by Select what to present in the chart. Resource - Cause the chart to presents the resource consumption of each available resource. Resource Type - Cause the chart to presents the resource consumption of resource types. 7 Time scale Control the length of chart by selecting a time scale. 8 Auto refresh Check to let the chart body auto update against chart settings such as whether to show by resource or resource type, time scale and selection of resources and resources type. Uncheck to update manually by clicking Refresh. 9 Refresh Click to update the chart body against the chart settings such as whether to show by resource or resource type, time scale and selection of resources and resources type. This button is available only when Auto Refresh is unchecked. 10 Resources Check or uncheck the resources to show or hide their usage in chart. This pane is active only when Resource is selected in the drop down menu Show By. 11 Resource types Check or uncheck the resource types to show or hide their usage in chart. This pane is active only when Resource Type is selected in the drop down menu Show By. 12 Chart body The chart body. 13 Export Click to export the opening chart to Microsoft Excel or image file. 14 OK Click to close the simulacian charts window and go back to the diagram.

Description of resource usage chart

Queue time chart

The queue time chart shows the time the flow objects spent on waiting, which corresponds to the time an inverted triangle appear during simulacian. You may study whether the queue time of certain flow object is reasonable or not, and think of the improvement.

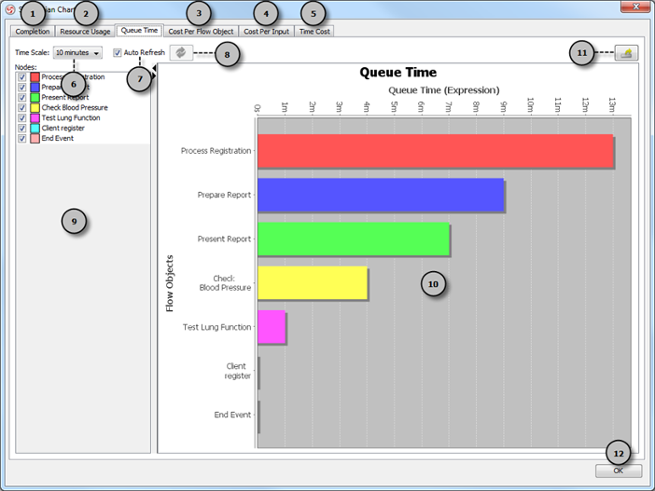

An overview of queue time chart

No. Name Description 1 Completion Click to show completion chart. 2 Resource usage Click to show resource usage chart. 3 Cost Per Flow Object Click to show cost per flow object chart. 4 Cost Per Input Click to show cost per input chart. 5 Time Cost Click to show time cost chart. 6 Time scale Control the length of chart by selecting a time scale. 7 Auto refresh Check to let the chart body auto update against chart settings such as time scale and selection of nodes. Uncheck to update manually by clicking Refresh. 8 Refresh Click to update the chart body against the chart settings such as time scale and selection of nodes. This button is available only when Auto Refresh is unchecked. 9 Nodes Check or uncheck flow objects nodes to show or hide their queue time in chart. 10 Chart body The chart body. 11 Export Click to export the opening chart to Microsoft Excel or image file. 12 OK Click to close the simulacian charts window and go back to the diagram.

Description of queue time chart

Cost per flow object chart

The cost per flow object chart shows the cost each flow object consumed throughout simulation.

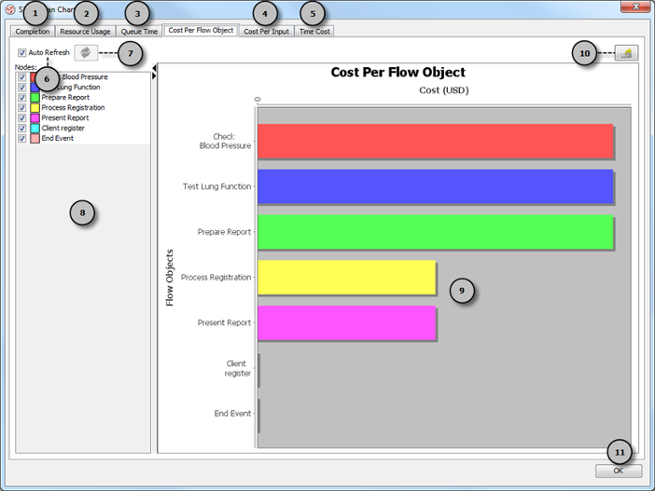

An overview of  cost per flow object chart

No. Name Description 1 Completion Click to show completion chart. 2 Resource usage Click to show resource usage chart. 3 Queue Time Click to show queen time chart. 4 Cost Per Input Click to show cost per input chart. 5 Time Cost Click to show time cost chart. 6 Auto refresh Check to let the chart body auto update against chart settings such as time scale and selection of inputs. Uncheck to update manually by clicking Refresh. 7 Refresh Click to update the chart body against the chart settings such as time scale and selection of nodes. This button is available only when Auto Refresh is unchecked. 8 Nodes Check or uncheck flow objects nodes to show or hide their queue time in chart. 9 Chart body The chart body. 10 Export Click to export the opening chart to Microsoft Excel or image file. 11 OK Click to close the simulacian charts window and go back to the diagram.

Description of queue time chart

Cost per input chart

The cost per input chart shows the cost each input consumed throughout simulation.

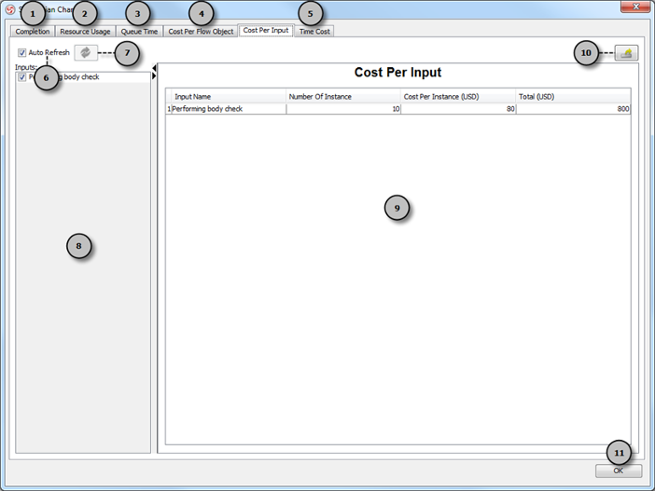

An overview of cost per input chart

No. Name Description 1 Completion Click to show completion chart. 2 Resource Usage Click to show resource usage chart. 3 Queue Time Click to show queen time chart. 4 Cost Per Flow Object Click to show cost per flow object chart. 5 Time Cost Click to show time cost chart. 6 Auto refresh Check to let the chart body auto update against chart settings such as time scale and selection of inputs. Uncheck to update manually by clicking Refresh. 7 Refresh Click to update the chart body against the chart settings such as time scale and selection of inputs. This button is available only when Auto Refresh is unchecked. 8 Nodes Check or uncheck flow objects nodes to show or hide their cost per input in chart. 9 Chart body The chart body. 10 Export Click to export the opening chart to Microsoft Excel or image file. 11 OK Click to close the simulacian charts window and go back to the diagram.

Description of cost per flow object chart

Time cost chart

The time cost chart shows the cost consumed against time spent throughout simulation.

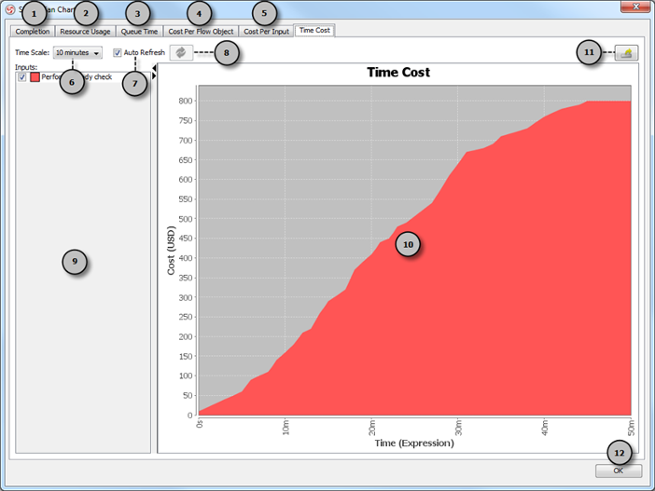

An overview of time cost chart

No. Name Description 1 Completion Click to show completion chart. 2 Resource Usage Click to show resource usage chart. 3 Queue Time Click to show queen time chart. 4 Cost Per Flow Object Click to show cost per flow object chart. 5 Cost Per Input Click to show cost per input chart. 6 Time Scale Control the length of chart by selecting a time scale. 7 Auto refresh Check to let the chart body auto update against chart settings such as time scale and selection of inputs. Uncheck to update manually by clicking Refresh. 8 Refresh Click to update the chart body against the chart settings such as time scale and selection of inputs. This button is available only when Auto Refresh is unchecked. 9 Nodes Check or uncheck flow objects nodes to show or hide their cost per input in chart. 10 Chart body The chart body. 11 Export Click to export the opening chart to Microsoft Excel or image file. 12 OK Click to close the simulacian charts window and go back to the diagram.

Description of cost per flow object chart
