Reversing database

You can reverse engineering an ERD from database. To reverse database:

1. Select Tools > Database > Reverse Database... from the main menu.

2. In the Database to Data Model dialog box, keep Reverse Table selected and click Next > button to continue.

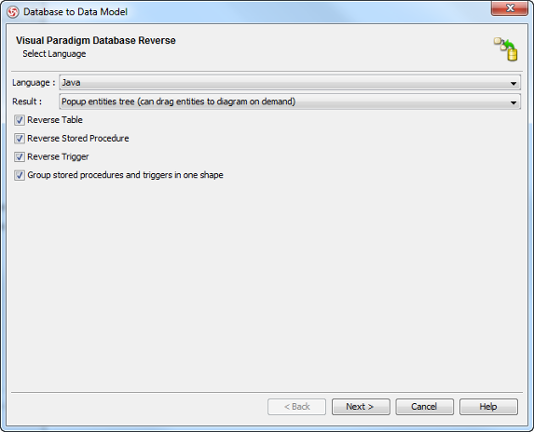

   Check Reverse Table

3. Fill in the database setting and click Next > button.

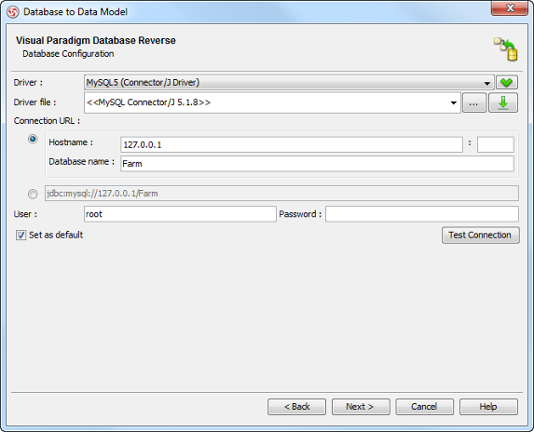

   Database setting

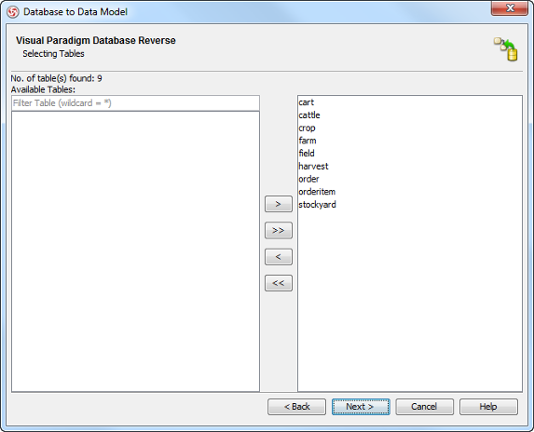

4. Select the tables you want to reverse and click the Next button to start reverse.


   Select tables

5. After reverse, a new Entity Relationship Diagram is created automatically with a Reversed Entities dialog box.

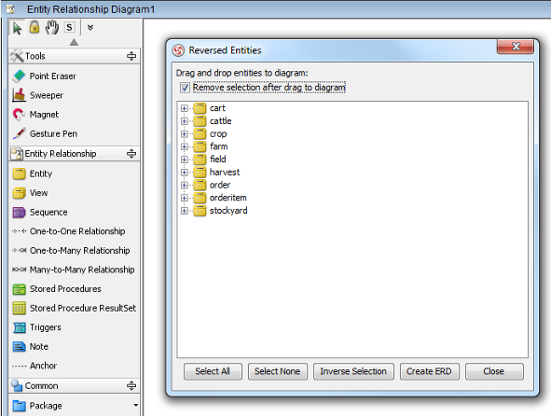

   Reversed entities

6. Select the tables and drag on the diagram.

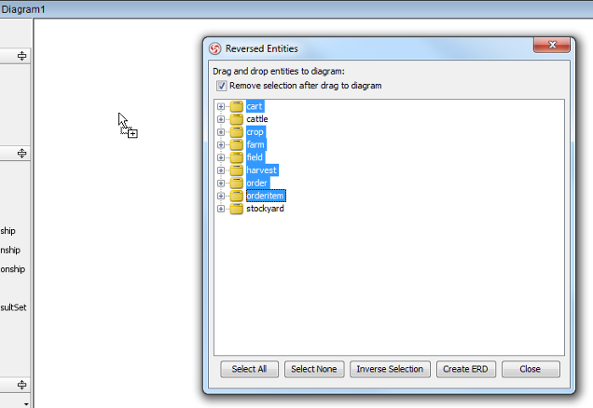

   Drag and drop tables to diagram

7. The tables were created on the diagram, click Close button to finish reversing database.

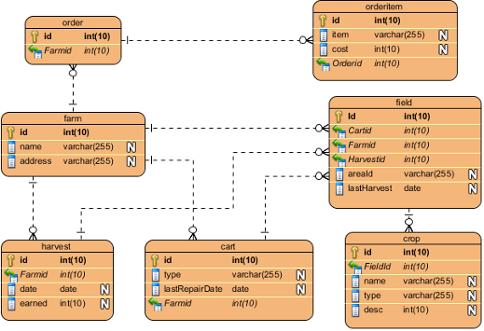

   Reversed ERD
