Reversing DDL
- Create a new project.
-
Select Tools > Database > Reverse DDL... from the main menu.
- Fill in the filename of DDL and select database in Reverse DDL dialog box. Click OK button to continue.
An Entity Relationship Diagram is created with the reversed entities.

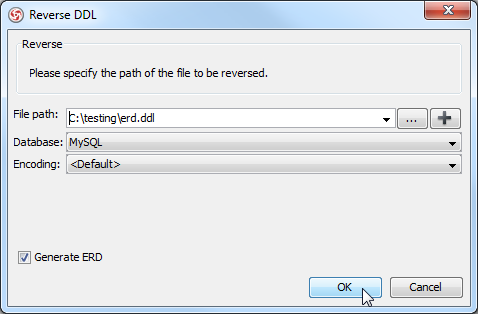

Reverse DDL dialog box

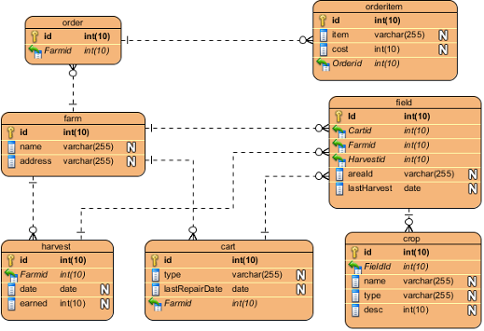

Reversed ERD
