Instant reverse Java sources to sequence diagram

Instant reverse is a process to produce UML class model from a given input of source code. With instant reverse, you can reverse a snap shot of your code-base to UML classes and form class diagram in further. Instant reverse can read the code body of operation in Java class (source file), analyze the method invocations and form the result on a sequence diagram. This lets you study the runtime behavior of your application by mean of a sequence diagram, which makes it easier to locate potential bottleneck and carry out changes.

Reverse engineering sequence diagram from source files

1. Select Tools > Code Engineering > Instant Reverse > Java to Sequence Diagram... from the main menu.
2. In the Instant Reverse dialog box, add the zip file of source or folder path of source by clicking on the appropriate Add button at the right hand side of the dialog box. Make sure the source folders include all the source files of all classes necessary for analyzing the traces of calls.

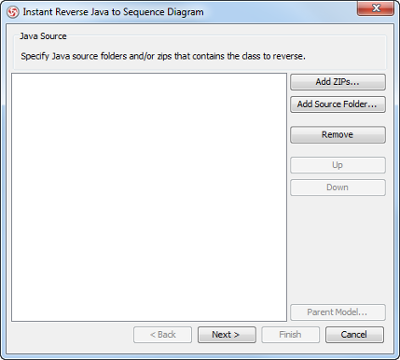

   The Instant Reverse dialog

   NOTE:

   You can reverse multiple source paths by adding them one after the other.

3. Click Next.
4. Select the operation you want to analyze its content and form sequence diagram.

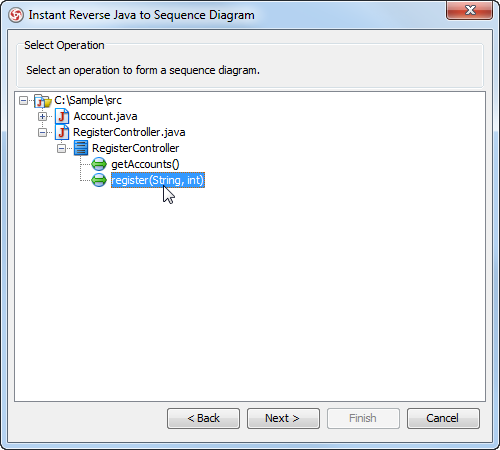

   Select an operating to analyze its code body and form diagram

5. Click Next.

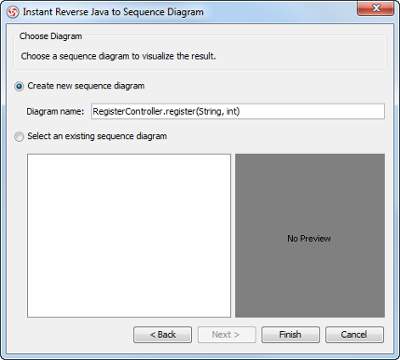

6. In the Choose Diagram page, select the diagram to visualize the result. You can either form a new sequence diagram by selecting Create new sequence diagram and entering the diagram name, or select Select an existing sequence diagram and choose an existing sequence diagram to visualize the result.


   Select a diagram to visualize the result

7. Click Finish. When the process is completed, you can obtain the result in sequence diagram.

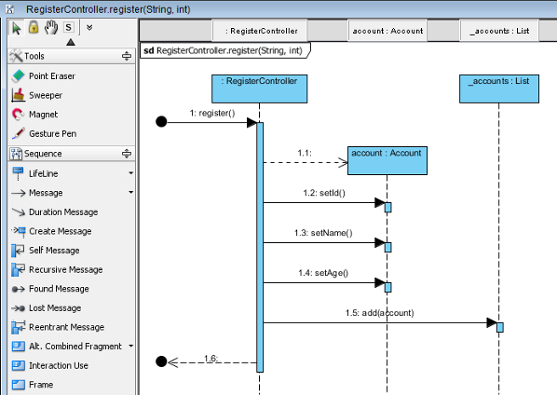

   Sequence diagram formed
