Generate/Update C++ code

Round-trip engineering is the ability to generate model from source code and generate source code from model, and keep them synchronized. You can make use of round-trip engineering to keep your implementation model and source code up-to-date, so as to produce up-to-date documentation on your model.

Generating/Updating code from whole project

You can generate C++ code from all classes in current project. To generate code from project:

1. Select Tools > C++ Round-trip > Generate Code... from the main menu.


   To generate code for a project

2. In the Generate Code dialog box, specify the mapping between model and source path. Model is a UML element that acts as a container of other elements. Classes and packages under a model will be generated to the mapped source path. You can add multiple model-to-source-path mapping by pressing the + button. If you are not using model to structure your project, or if you want to generate all classes in project to the same folder, regardless of their parent model, keep model to be <root>.

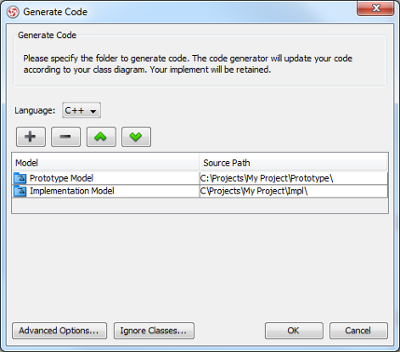

   The mappings between models and source paths are defined

3. Optionally configure the advanced code generation options by clicking Advanced Options.... Read the section Advanced Options in this chapter for details about the options.
4. Click OK to proceed with generation.

Generating/Updating code from opening class diagram

You can generate C++ code from an opening class diagram that contains the class(es) you want to generate code. To generate code from class diagram:

1. Right click on the class diagram background and select Utilities > C++ Round-trip > Generate Code from the popup menu.
2. In the Generate Code dialog box, specify the source path where you want the code to be generated. Model is a UML element that acts as a container of other elements. Notice that source path is set for model, not for diagram. Classes and packages under a model will be generated to the mapped source path. You can add multiple model-to-source-path mapping by pressing the + button. If you are not using model to structure your project, or if you want to generate all classes in project to the same folder, regardless of their parent model, keep model to be <root>.


   The mappings between models and source paths are defined

   NOTE:

   If you have generated code for once, the Generate Code dialog box will not appear next time you generate/update code for any diagram. If you want to configure the model-to-source-path mapping or to configure options, you can run a code generation for project (refer to the previous section for detail).

3. Optionally configure the advanced code generation options by clicking Advanced Options.... Read the section Advanced Options in this chapter for details about the options.
4. Click OK to proceed with generation.

Generating/Updating code from chosen classes

You can generate C++ code from specific class or classes. To generate code from class/classes:

1. Select the class(es) and right click on them, then select C++ Round-trip > Generate Code from the popup menu.

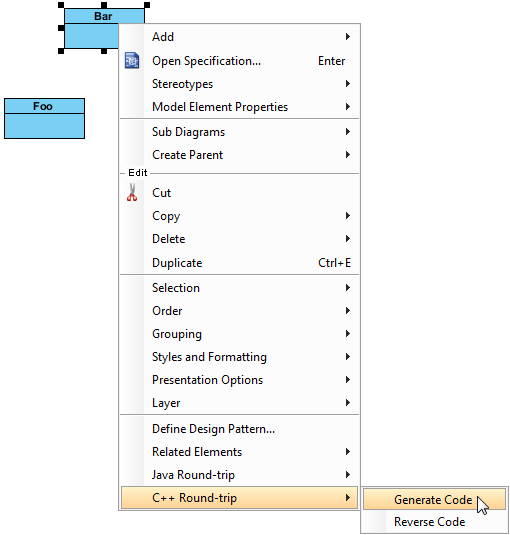

   To generate code for classes

2. In the Generate Code dialog box, specify the source path where you want the code to be generated. Model is a UML element that acts as a container of other elements. Notice that source path is set for model, not for diagram. Classes and packages under a model will be generated to the mapped source path. You can add multiple model-to-source-path mapping by pressing the + button. If you are not using model to structure your project, or if you want to generate all classes in project to the same folder, regardless of their parent model, keep model to be <root>.


   The mappings between models and source paths are defined

   NOTE:

   If you have generated code for once, the Generate Code dialog box will not appear next time you generate/update code for any class selection. If you want to configure the model-to-source-path mapping or to configure options, you can run a code generation for project (refer to the previous section for detail).

3. Optionally configure the advanced code generation options by clicking Advanced Options.... Read the section Advanced Options in this chapter for details about the options.
4. Click OK to proceed with generation.

An overview of Generate Code dialog box

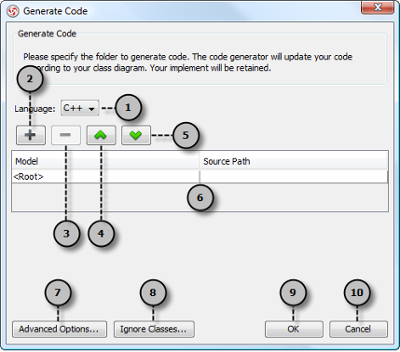

An overview of Generate Code dialog box

No. Name Description 1 Language The programming language of the source code to generate. 2 Add model-to-source-path mapping Click to add a new mapping between UML model and the source path where code will be generated to. 3 Remove model-to-source-path mapping Click to remove chosen model-to-source-path mapping. 4 Move model-to-source-path mapping up Click to move chosen model-to-source-path mapping one item upward. 5 Move model-to-source-path mapping down Click to move chosen model-to-source-path mapping one item downward. 6 Model-to-source-path mapping A list of mapping between UML model and source path. 7 Advanced options Click to configure advanced code generation options. For details, read the section Advanced Options in this chapter. 8 Ignore classes Click to organize the ignore list of classes to ignore in code generation. For details, read the section To ignore classes in generation in this chapter. 9 OK Click to start generation. 10 Cancel Click to close the Generate Code dialog without generating code.

A description of Generate Code dialog box

Advanced options

You can configure the advanced options for more control of the code by clicking the Advanced Options... button in Generate Code dialog box. In the Code Synchronization dialog box popped up, there are four categories (tabs) of settings you can configure. Below is a description.

Code

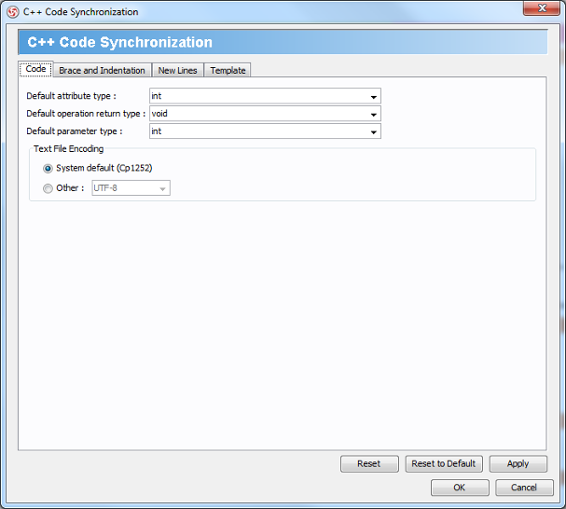

Code configuration

Option Description Default attribute type (default int) Type that will be assigned to Attribute upon code generation when type is unspecified Default operation return type (default void) Return Type that will be assigned to operation upon code generation when return type is unspecified Default parameter type (default int) Type that will be assigned to Parameter upon code generation when type is unspecified Text File Encoding System default - (default) The default system encoding will be selected as encoding for source files Other -Specify an encoding for source files

A description of code configuration

Brace and Indentation

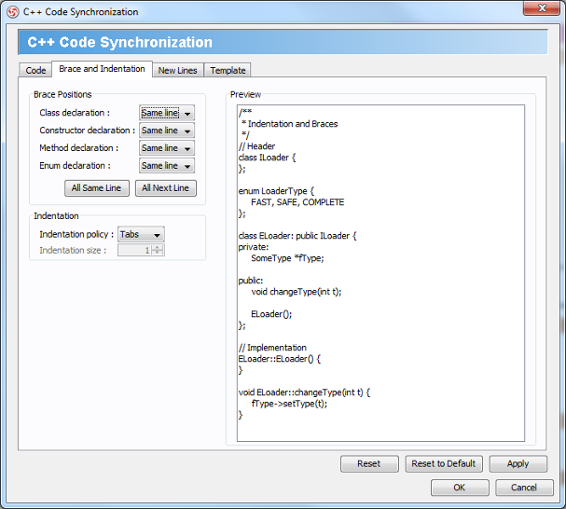

Brace and indentation configuration

Option Description Class declaration Same line - (default) Brace for class declaration appear at the same line as the declaration Next line - Brace for class declaration appear at the line after the declaration Constructor declaration Same line - (default) Brace for constructor appear at the same line as the declaration Next line - Brace for constructor appear at the line after the declaration Method declaration Same line - (default) Brace for method appear at the same line as the declaration Next line - Brace for method appear at the line after the declaration Enum declaration Same line - (default) Brace for enumeration appear at the same line as the declaration Next line - Brace for enumeration tor appear at the line after the declaration Indentation policy Tabs - (default) Use a tab of space as indentation Spaces - Use spaces as indentation. The number of spaces can be defined below Indentation size The number of spaces to indent

A description of brace and indentation configuration

New Lines

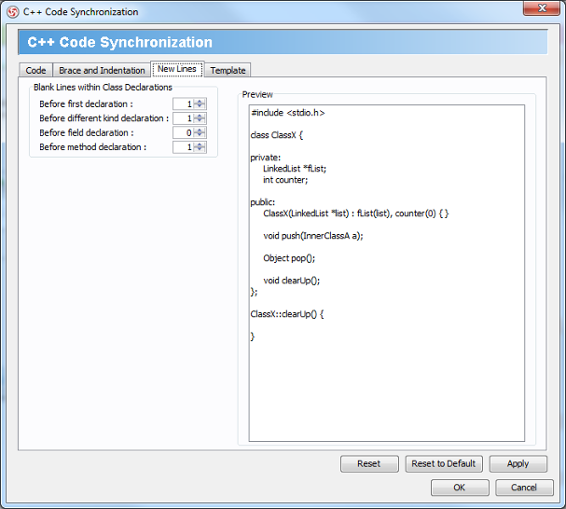

New lines configuration

Option Description Before first declaration Number of blank lines to appear before the first declaration within Class declarations Before different kind declaration Number of blank lines to appear before a different kind of declaration Before field declaration Number of blank lines to appear before field declaration Before method declaration Number of blank lines to appear before method declaration

A description of new lines configuration

Template

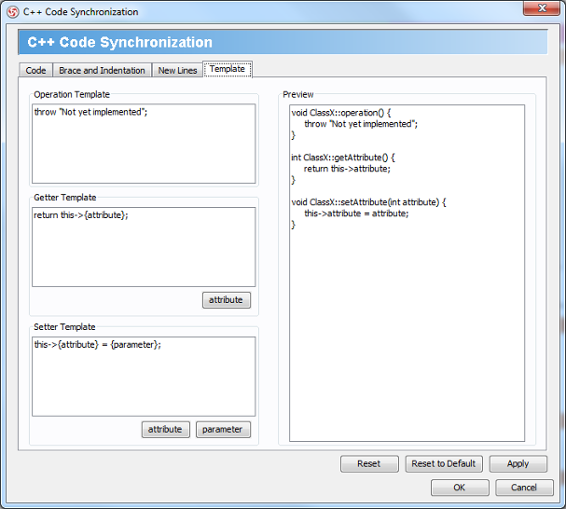

Template configuration

Option Description Operation Template Defines a template of method body that will be applied when generating operations. Getter Template Defines a template of getter that will be applied when generating getter methods. Getter will be generated to attribute stereotyped as Property, or with property getter selected. Setter Template Defines a template of setter that will be applied when generating setter methods. Setter will be generated to attribute stereotyped as Property, or with property setter selected.

A description of template configuration

To ignore classes in generation

You can make certain UML class not to generate code against code generation by ignoring them. To ignore class(es), click Ignore Classes... in Generate Code dialog box. In the second Generate Code dialog box that popped up, select the class(es) to ignore and click > to move them to the ignore list. Click OK to confirm.

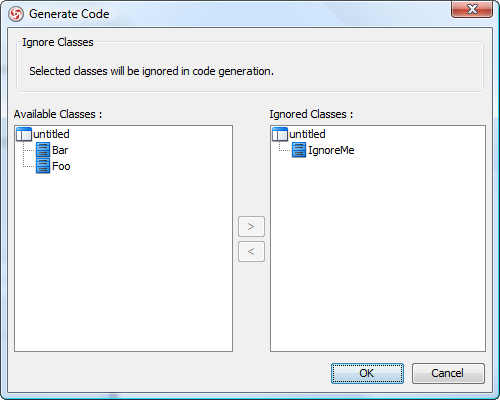

The class IgnoreMe is ignored
