Task and sub-process

A business process is mainly formed by activities that need to be performed to complete the process. There are two kinds of activities - task and sub-process. A task is an atomic activity which represents work that cannot be broken down. On the contrary, sub-process represents work that can be broken down to a finer level of detail.

Task and sub-process

Task markers

You can assign markers to task. There are three markers: Loop, Multi-Instance, Compensation. A task can have one or two of these markers. Assignment of markers is done through the specification dialog box of task.

Name Representation Description Loop This marker indicates that the task will loop as long as the condition that defined in the loop is true. The condition is evaluated in each iteration, at either the beginning or the end of iteration. This marker can be used in combination with the compensation marker. Multi-instance (parallel instances) This marker indicates the execution of task in a desired number of instances, or in a data driven approach. The instances will be started at the same time. Multi-instance (sequential instances) This marker indicates the execution of task in a desired number of instances, or in a data driven approach. The instances will be executed one after the other. Compensation To undo (cancel) the result of another activity that were already successfully completed. The execution of compensation task is due to the undesired results and possibily side effects produced by antoher activity, that need to be reversed.   A compensation task is performed by a compensation handler, which performs the steps necessary to reverse the effects of an activity.

Different markers of task

Adding a Loop marker

1. Right click on a task and select Open Specification... from the popup menu.
2. Select Standard Loop for Loop type. Click OK to confirm the changes.


   NOTE:

   You can click on the ... button next to Loop type to set the loop condition, counter and the maximum number of iteration.

Adding a Multi-instance marker

1. Right click on a task and select Open Specification... from the popup menu.
2. Select Multi-Instance Loop for Loop type. Click OK to confirm the changes.


   NOTE:

   You can click on the ... button next to Loop type to set the ordering of loop, either parallel or sequential.

Adding a Compensation marker

1. Right click on a task and select Open Specification... from the popup menu.
2. Check Compensation at the bottom of specification and click OK to confirm the changes.

Task types

There are several types of task for you to separate the behavior of different tasks. You can set a type by right clicking on a task and selecting Type, then the type from the popup menu.

Name Representation Description Service A service task is a task that uses some sort of service, e.g. a Web service. Send A send task is a task that sends a message to an external participate. The task is said to be completed once the message has been sent. Receive A receive task is a task that waits for a message to arrive from an external participant. The task is said to be completed once the message has been received. User A user task is a task performed by a human with the assistance of a software application. Manual A manual task is a task that is performed without the aid of any business process execution engine. Business Rule A business rule task let the process to provide input to a business rules engine, and to get the output from engine. Script A script task involves a script defined by modeler or implementer in a language that a business process engine can understand, and is executed by a business process engine. Reference A reference task refers to another task for its content.

Types of tasks

Sub-process markers

You can assign markers to sub-process. There are four markers: Loop, Multi-Instance, Ad-hoc and Compensation. A sub-process can have up to three markers, excluding the marker for collapsed: A loop/multi-instance marker, an Ad-hoc marker, and a Compensation marker. Assignment of markers is done through the specification dialog box of sub-process.

Name Representation Description Loop This marker indicates that the sub-process will loop as long as the condition that defined in the loop is true. The condition is evaluated in each iteration, at either the beginning or the end of iteration. This marker can be used in combination with the ad-hoc and/or compensation marker. Multi-instance (parallel instances) This marker indicates the execution of sub-process in a desired number of instances, or in a data driven approach. The instances will be started at the same time. Multi-instance (sequential instances) This marker indicates the execution of sub-process in a desired number of instances, or in a data driven approach. The instances will be executed one after the other. Ad-hoc This marker indicates that a sub-process is a group of activities that have no required sequence relationships. The sequence and number of performances for activities are determined by the performers of the activities. Compensation To undo (cancel) the result of another activity that was already successfully completed. The execution of compensation sub-process is due to the undesired results and possibly side effects produced by another activity that need to be reversed.   A compensation sub-process is performed by a compensation handler, which performs the steps necessary to reverse the effects of an activity.

Different markers of sub-process

Adding a Loop marker

1. Right click on a sub-process and select Open Specification... from the popup menu.
2. Select Standard Loop for Loop type. Click OK to confirm the changes.


   NOTE:

   You can click on the ... button next to Loop type to set the loop condition, counter and the maximum number of iteration.

Adding a Multi-instance marker

1. Right click on a sub-process and select Open Specification... from the popup menu.
2. Select Multi-Instance Loop for Loop type. Click OK to confirm the changes.


   NOTE:

   You can click on the ... button next to Loop type to set the ordering of loop, either parallel or sequential.

Adding an Ad-hoc marker

1. Right click on a sub-process and select Open Specification... from the popup menu.
2. Make sure the type of sub-process is set to be Embedded Sub-Process. Check Ad-hoc in the Details section and click OK to confirm the changes.

Adding a Compensation marker

1. Right click on a sub-process and select Open Specification... from the popup menu.
2. Check Compensation at the bottom of specification and click OK to confirm the changes.

Sub-process types

There are several types of sub-process for you to separate the behavior of different sub-processes. You can set a type by right clicking on a sub-process and selecting Type, then the type from the popup menu.

Name Representation Description Embedded An embedded sub-process is a sub-process that models its internal details in another process. Reusable A reusable sub-process calls a pre-defined process. Reference A reference sub-process refers to another sub-process.

Types of tasks

Breaking down a sub-process

A sub-process can be opened up to model the detail in a lower level. To open up a sub-process, click on the plus marker in sub-process and select New Business Process Diagram. This will create a new business process diagram that belongs to the sub-process.

To break down a sub-process

Re-using elements from parent diagram

In the sub-process diagram, you can re-use pools, lanes and flow objects that appear in the parent diagram. To do this, right click on the sub-process diagram and select Add Pools/Lanes/Sub-Processes/Gateways from Parent Diagram... from the popup menu, and choose the element to reuse. Elements being re-used will have dog ear appear at their corners.

A sub-process diagram with a lane reused from parent diagram

You can jump from a re-used element back to the parent diagram through the resource-centric interface.

Jump to parent diagram

Defining procedure of activity

An activity within a process represents work need to be done. Each activity can be formed by a number of steps. For example, a task Process Application involves 2 steps - validate application, confirm application. To document the steps of an activity, you can make use of the procedure editor.

Procedure of a task

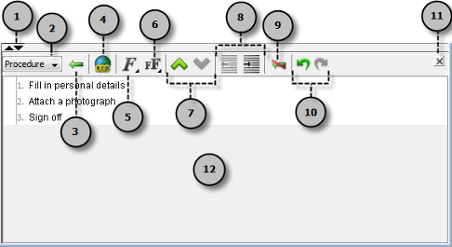

An overview of procedure editor

An overview of procedure editor

No. Name Description 1 Collapse/Expand Click on the triangle on the left hand side to maximize the editor. On the contrary, click on the inverted triangle to minimize the editor. 2 Procedure selector You can define multiple set of procedure per activity. Click on this drop down menu to select the one you want to read/edit. 3 Step Click on this button to create a step under the step selected in editor. 4 Hyperlink... Add a link in the selected step for reference. 5 Font formats selector There are three buttons. The first one increases the font size for one level, while the second one decreases the font size for one level. The third button resets the font size setting to default. 6 Font size setting selector Click on this drop-down menu to select the sizes of highlighted text. Press Grow Font button to increase the font size for one level, while press Shrink Font button to decrease the font size for one level. Press Default Font button reset the font size setting to default. Moreover, you can adjust the font size for the highlighted text manually by slider. 7 Reorder step Click on Move Up button to move the selected step upward while Move Down button to move the selected step downward. 8 Decrease Indent/ Increase Indent Click on Decrease Indent button to reduce the indentation of the selected step while click on Increase Indent button to indent the selected step. 9 Undo/ Redo Click on Undo button to revert change while click on Redo button to redo reverted change. 10 Close editor Click on this button to close the editor. 11 Steps editor The place where you can read and edit steps.

Description of procedure editor

Showing/Hiding procedure editor

The procedure editor is opened in business process diagram by default. To hide it, right click on the background of business process diagram and deselect Show Procedure Editor from the popup menu. You can select the same menu to show it when hidden.

Documenting the procedure

1. Select the task or sub-process that you want to document its procedure.
2. Click on the first row labelled 1 and enter the first step.
3. Press Enter to go to the next step. You can create a sub-step by pressing Tab on a step. Pressing Shift-Tab decreases the indentation of a sub-step. Repeat step 2 and 3 to enter the remaining steps the activities involve.
