DB Visual ARCHITECT 6.0 Professional Edition

• Matrix
• Analysis diagram

• Generate Java
• Generate Hibernate mapping

• Generate C#
• Generate NHibernate mapping

• Generate PHP
• Generate PHP ORM mapping

• ER diagram
• Class diagram
• Compare database
• Generate PDF, Word & HTML
• Generate & reverse DB

1. Entity relationship diagram

   DB-VA supports design database by ERD, reverse existing database to ERD and generate ERD to database. DB-VA supports all popular databases in market. Developer can design the system in ERD and generate class diagram from ERD.

2. Code and database generation

   DB-VA supports MDA by generating platform independent model, class diagram and ERD to platform specific model, Java, C# and PHP. Developer draw class diagram, generate ERD by class diagram, generate code, generate database, generate mapping layer and then start writing business logic without worry about the mapping between databases and object model.

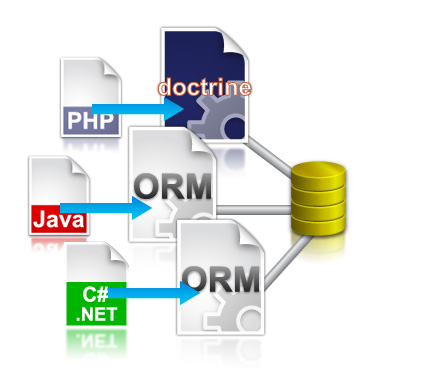

   Generate object model for Java, C# and PHP

3. Documentation generation

   DB-VA PE generates report in MS Word 2007, PDF and HTML format. There are various options to control and customize the generated reports. You can also develop your own report by using report writer[1].

   Generate MS Word 2007 doc

4. Team collaboration

   DB-VA PE talks to VP Teamwork Server, Subversion, CVS and Perforce to provide a collaborative modeling platform. With team collaboration feature, team member can view and edit same project or even same diagram simultaneously. All changes will be stored in above servers in revision basis.

   Support VP Teamwork Server, Subversion, CVS, Perforce

5. Plug-in architecture

   DB-VA PE plug-in architecture provides an extendable platform for developer to add functions to DB-VA PE. Developer can reference to the plug-in development guide to build their own plug-in to read and write diagrams and model elements.

6. Interoperability

   DB-VA PE can import/export to XML, XMI, MS Excel and various image formats. DB-VA can import MS Visio drawing, ERWin Data Modeler project files and Telelogic Modeler project files. Mass update of entities/columns name is easy by exporting ERD to Excel, edit in Excel and then import back.

Remarks:
[1]	This feature is only available for the Windows platform.

PRICING

Prices are provided in US dollars

Single Seat License Unit Price $699.0 Buy DB-VA Professional Edition Unit price with 1 year maintenance $838.5 Buy DB-VA PE with 1yr maintenance 1 year maintenance cost 20% of unit price. Try DB-VA Free	Floating License Unit Price $908.5 Unit price with 1 year maintenance $1,090.0 The price of Floating License is calculated in 30% more of the single seat license. To know more about floating license, please visit Floating License page at here.	Software Maintenance Extend 1 year maintenance Single Seat License $139.5 Floating License $181.5 All version upgrades of Visual Paradigm products are included as part of software maintenance. Customers are entitled to get all version upgrades within their software maintenance period.

EDITION UPGRADE

Prices are provided in US dollars

Customers can upgrade the existing edition to get more features and functionalities from your Visual Paradigm products.

From Edition	Single Seat License			Floating License
	with existing maintenance	without existing maintenance		with existing maintenance	without existing maintenance
Java Edition	$360.0	$559.5		$468.0	$727.0
Key Benefits after upgrade .NET ORM Generate C# source and NHibernate mapping. PHP ORM Generate PHP source and PHP ORM mapping.
.NET Edition	$360.0	$559.5		$468.0	$727.0
Key Benefits after upgrade Java ORM Generate Java source and Hibernate mapping. PHP ORM Generate PHP source and PHP ORM mapping.
PHP Edition	$360.0	$559.5		$468.0	$727.0
Key Benefits after upgrade Java ORM Generate Java source and Hibernate mapping. .NET ORM Generate C# source and NHibernate mapping.

Contact our Sales Service to obtain this upgrade or get more information.
