UML Class Diagram
Visualize, design, communicate and document UML 2.2 diagrams with intuitive and sophisticated visual modeling environment.

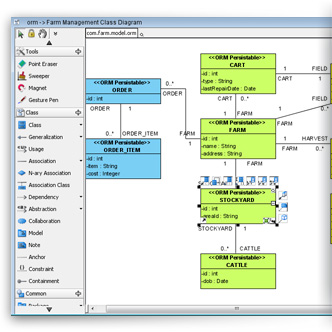

Class diagram
Class diagram is the most widely used diagram in modeling object-oriented system. A class diagram shows a set of classes, interfaces, associations and generalizations. Package is commonly used model element for organizing elements in class diagram. Class diagrams are not just for visualizing and documenting structure models but also for constructing executable system with forward, reverse and round-trip engineering. There is also a synchronization engine for generating and updating entity relationship diagram from class diagram.
