Splitting diagram view vertically and horizontally

The size of the diagram and number of shapes grow when more and more requirements are captured and when more designs are visualized. Sometimes, we want to compare the northern part of the diagram with the southern part of the diagram and skip the middle part.

In VP Suite 4.0 SP1, there is split diagram function. Modeler can split the diagram vertically or horizontally. Let's show split Sequence Diagram and Business Process Diagram examples and step by step guide.

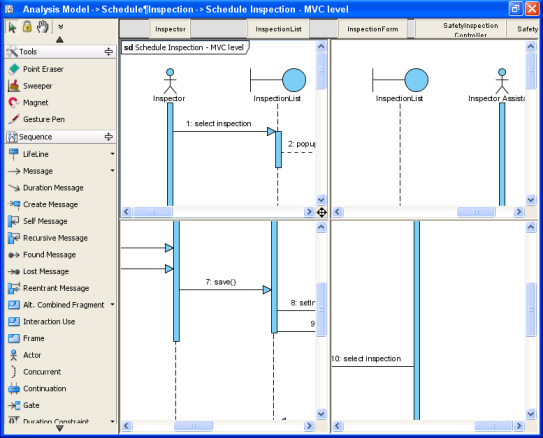

Splitting Sequence Diagram into four views

Splitting Business Process Diagram

Splitting Sequence Diagram

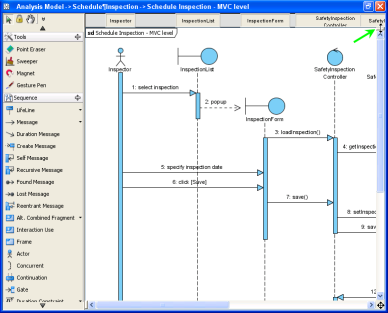

1.	Use mouse to press and hold the diagram splitter.

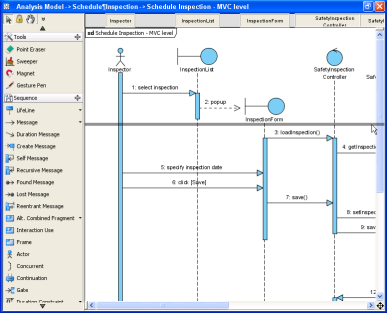

2.	Drag the splitter to the position you want.

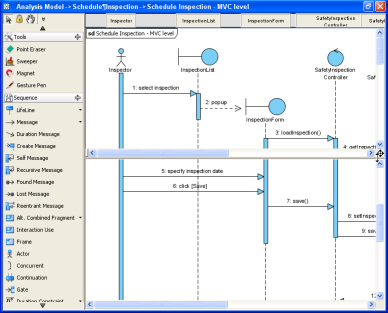

3.	Release the mouse.

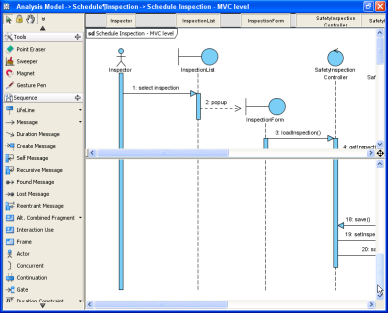

4.	Scroll to bottom to the southern part of the diagram.
