Enhancements for Various Trees

Improved Diagram Creation

Starting from VP Suite 2.3 Service Pack 2, you can create a new diagram and enter its name and documentation at the same time. Below are three approaches to show the New Diagram dialog box where you can select the diagram to be created and specify the documentation.
Animated Demo

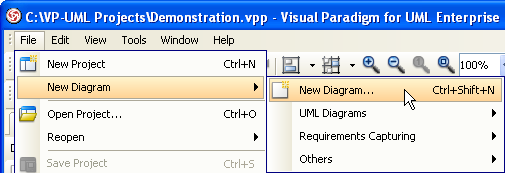

•	Select File > New Diagram... from the main menu.
•	Right-click on the project root node in the Diagram Navigator and select New Diagram... from the pop-up menu.
•	Right-click on a diagram node in the Diagram Navigator and select New Diagram... from the pop-up menu.

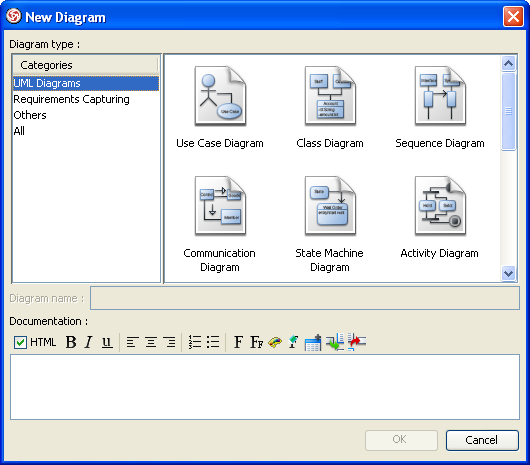

The New Diagram dialog box is showed as below.
Note: If you took the third way to create the diagram, the chosen diagram type is selected by default.
Creating a diagram from the New Diagram dialog box

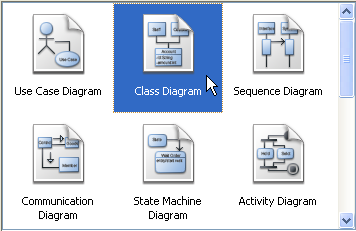

1.	Select the category that the type of diagram that you want to create is belonging to.
2.	Click on the image of the diagram type that you want to create.
3.	Enter the diagram name.
4.	Enter the diagram documentation. You can define formatting for the documentation.

Enhanced Model creation via Model and Class Repository trees

Animated Demo
Creating a Model
1.	From the Model tree or Class Repository, select the parent for creating a model. A parent can either be the project root node or any model node.

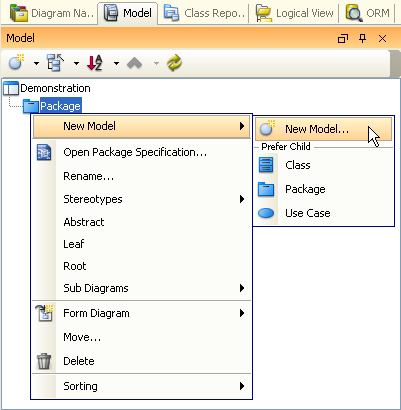

2.	Right-click on the parent 'object' and select New Model > New model... from the pop-up menu.

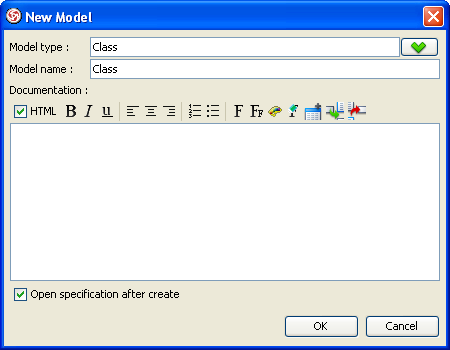

	This shows the New Model dialog box.

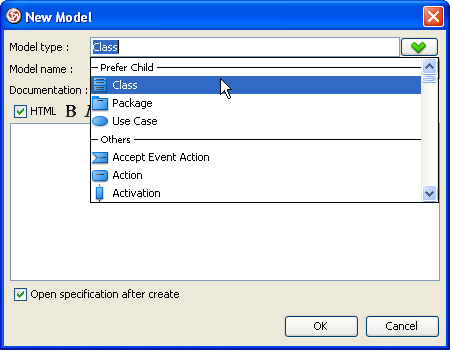

3.	Click on the Model type drop-down menu and select the type of model that you want to create.
4.	Enter the model name.
5.	Enter the model documentation. You can define formatting for the documentation.
6.	If you want the specification dialog box of the newly created model to appear, keep the option Open specification after create checked, un-check it otherwise.
7.	Click OK to create the model. You will see the newly created model is created under the parent object.
	Preferred and Recently created model

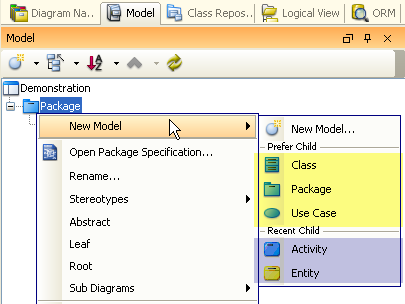

	When you right-click on a model and select New Model from the pop-up menu, you may see the Preferred Child and the Recent Child sections.
	• Preferred Child
	Model types that are commonly used as the model type of child model of the selected model. For example, the preferred child for a System is a Use Case.
	• Recent Child
	Model types that have ever been used are stored as history, which allows you create a new shape of the same type with minimized effort.
Context sensitive pop-up menu
With the enhanced Model Tree and Class Repository, many model-based operations can be performed within the tree without opening the diagrams that contain models. Here are two examples.

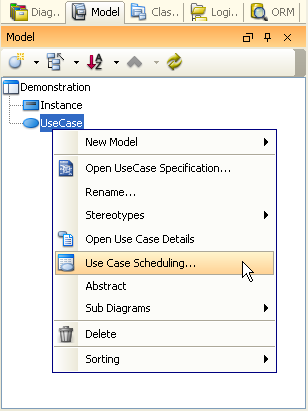

•	Working Use Case Scheduling for a Use Case Right-click on a Use Case model and select Use Case Scheduling... from the pop-up menu.

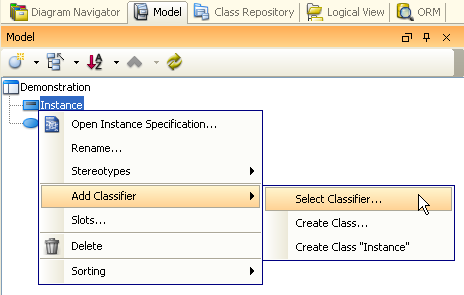

•	Adding Classifier for an Instance Specification Right-click on an Instance Specification model and select Add Classifier > Select Classifier... from the pop-up menu.
Press 'Enter' to open model specification

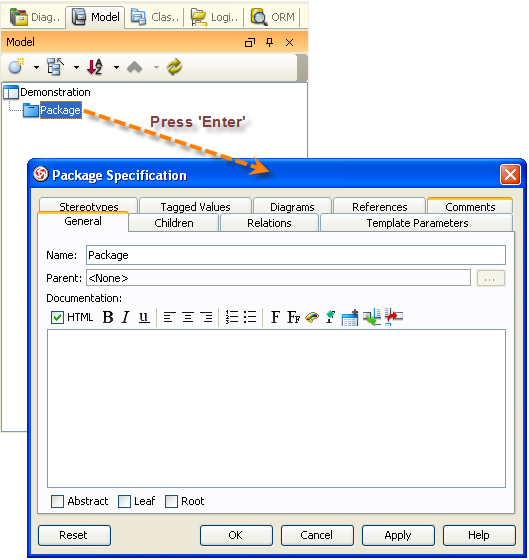

The Enter shortcut key is available for opening the specification dialog of the selected model.

Instant update for property and documentation pane upon model selection

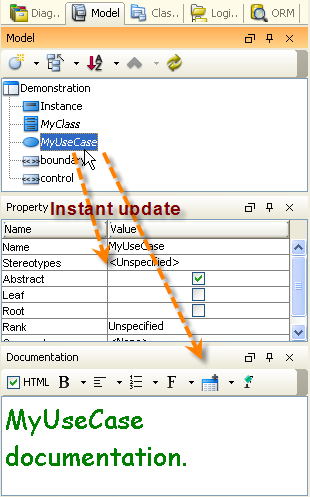

When you select a diagram or a model from different trees, the property pane and documentation pane will update themselves instantly to show the properties and documentation of the selected model.

Animated Demo

Support re-ordering of diagrams

1.	Support re-ordering of diagrams
2.	Select the diagram that you want to reposition in the tree.

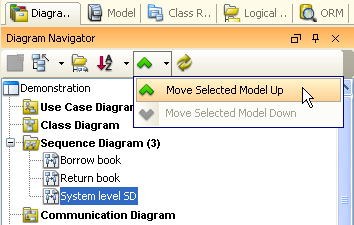

3.	From the Diagram Navigator toolbar, select either Move Selected Model Up to move the selected diagram upwards or Move Selected Model Down to move the selected diagram downwards.
