Reverse DDL to ERD models
| Written Date: May 12, 2007 | ||||
User Rating:
/ 0
|
Hits: 2,677 |
|
||
A DDL (Data Definition Language) file is a computer language for defining data. Now, you can also use it to generate ERD models like entities, views and relationships by reversing the DDL.
Reversing DDL
| 1. | Here shows an extraction of the DDL file for MySQL database that we are going to reverse. |
 |
|

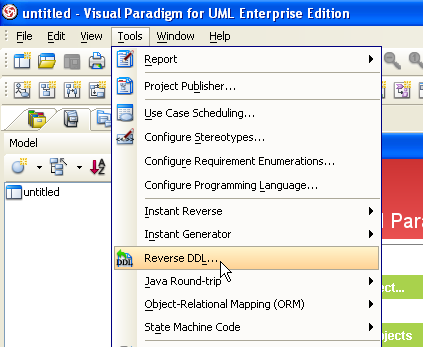

| 2. | To reverse DDL, select menu Tools > Reverse DDL.... |
 |
|
| 3. | In the Reverse DDL dialog box, type the path of DDL file in File path, and select the target database of this DDL in the Database list. |
 |
|

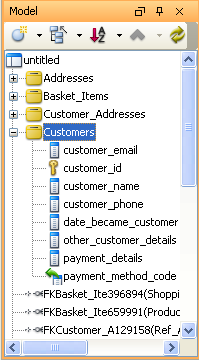

| 4. | After reversing, the models like entities, columns and relationships are generated according to the DDL. |
 |
|

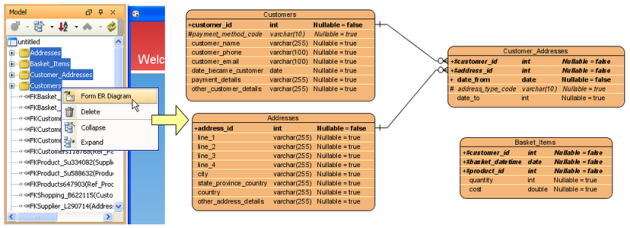

| 5. | You can select interested models in Model pane, right-click on them and select Form ER Diagram from the popup menu to generate an ERD. |
 |
|
