Analysis project data using plug-in
Developers can develop plug-in that can be integrated with SDE for Eclipse for extracting data from project. Developers may need an analysis of project data, e.g. how many diagrams are there? What are the packages in the project? Such analysis can be achieved by developing a plug-in.
| September 23, 2009 | |
User Rating:
/ 0
|
|
| Views: 1,362 | |
|
PDF
Link
Link: |
Add comments |
| Edition: Community or above (Edition comparison) | |

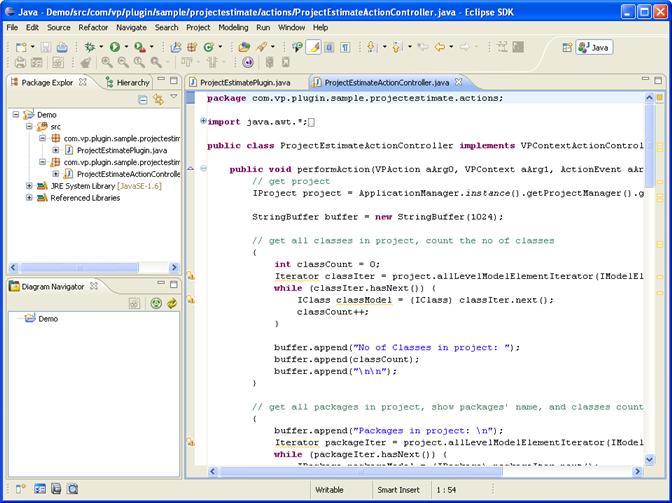

- Develop plugin.

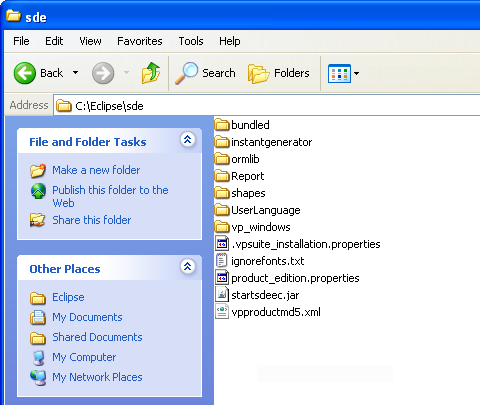

- Go to ${working_dir_of_eclipse}/sde folder.

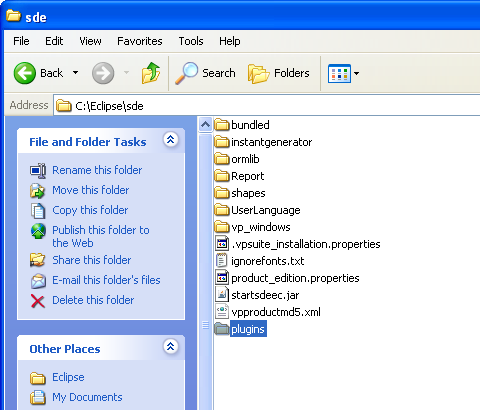

- Create a new folder "plugins".

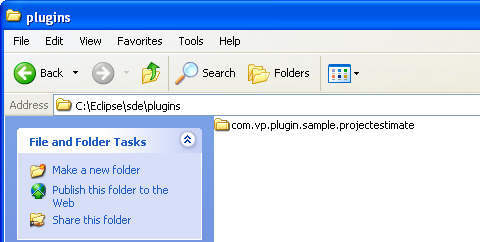

- Place the plugin in the "plugins" folder.

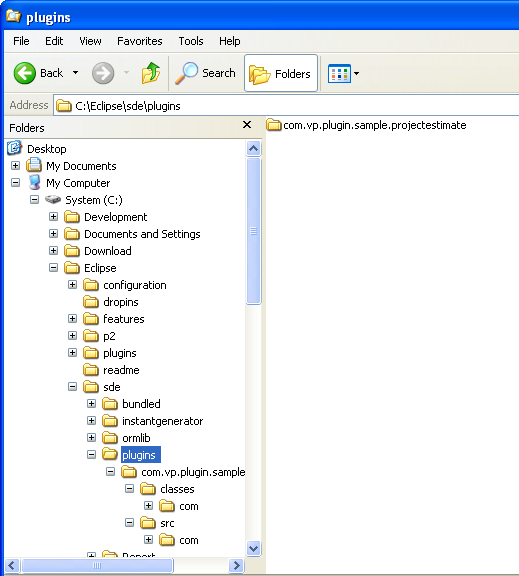

- Make sure the files are places as
... plugins sample.plugin(${plugin_ID}) plugin.xml classes sample (packages) ...

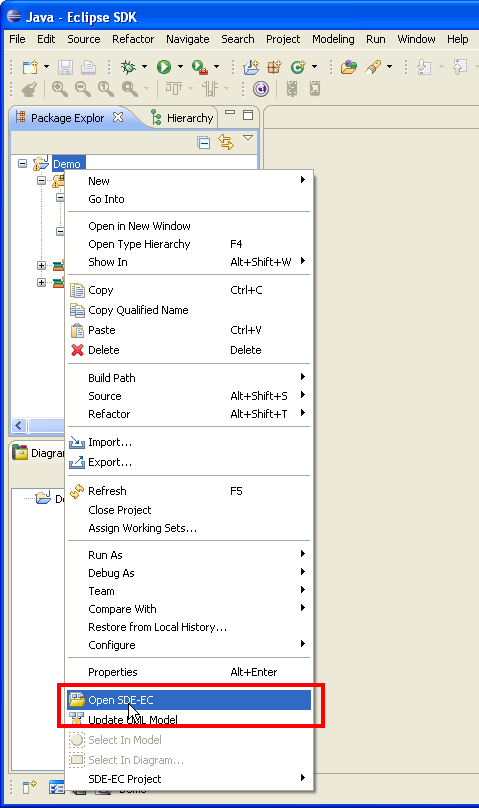

- Start Eclipse and start SDE for Eclipse on your project.
-

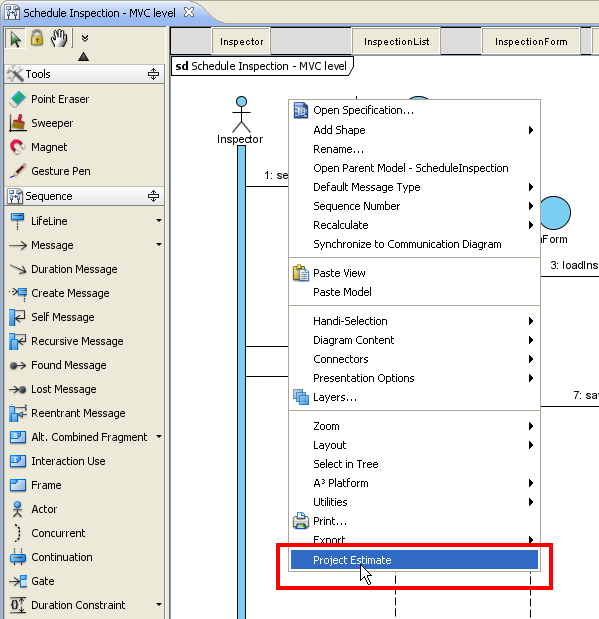

Right-click on a diagram or an element, you will see a new menu item of the plugin.
Note: SDE for Eclipse only supports plug-in on popup menu but not on toolbar/menu toolbar in Eclipse.

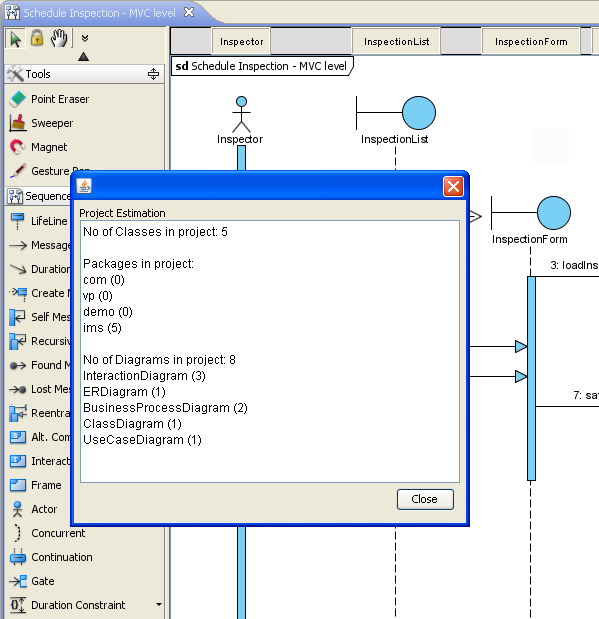

- Select the menu item and you will see the estimation results of your project.
