Architecture as Code: The Complete Guide to ArchiMate Relationships in PlantUML

Introduction

Enterprise architecture is inherently complex. To manage this complexity, architects rely on standardized modeling languages like ArchiMate to visualize, specify, and analyze the relationships between various business, application, and technology components. However, maintaining these diagrams using traditional drag-and-drop GUI tools can lead to version control nightmares and inconsistent styling.

Enter PlantUML. By treating architecture diagrams as code, PlantUML allows teams to version-control their models, automate diagram generation, and ensure strict adherence to ArchiMate standards.

This comprehensive guide breaks down the core concepts of ArchiMate relationships, maps them to their exact PlantUML code equivalents, and provides ready-to-use examples to help you master "Architecture as Code."

Key Concepts: The 4 Categories of ArchiMate Relationships

ArchiMate relationships describe how enterprise architecture elements interact, depend on each other, or structure one another. They are classified into four main categories:

1. Structural Relationships

These relationships model the static, structural arrangement, composition, or assignment of enterprise concepts. They define the "anatomy" of your architecture.

• Composition: A strict whole-part relationship where the part cannot exist independently of the whole. (Visual: Solid line with a filled diamond).

• Aggregation: A looser whole-part grouping where the parts can conceptually exist independently of the whole. (Visual: Solid line with an unfilled/open diamond).

• Assignment: Links active structure elements (e.g., Business Roles, Application Components) to the specific behaviors or functions they perform. (Visual: Solid line with a filled circle head).

• Realization: Links a concrete, operational element to the abstract requirement, service, or value it fulfills. (Visual: Dashed line with a hollow arrowhead).

2. Dependency Relationships

These capture behavioral dependencies, service provisions, or interaction constraints between elements. They define how elements "use" or "affect" one another.

• Serving (Used By): Indicates that one element provides a service, functionality, or data to another.

• Access: Represents how behavior elements interact with, read, or manipulate passive information or data objects.

• Influence: Describes how an element affects motivational attributes, goals, or requirements (often categorized as positive + or negative -).

• Association: The weakest connection, used temporarily to declare an unclassified or generic link between elements.

3. Dynamic Relationships

These capture temporal paths, execution orders, or operational flows over time. They define the "physiology" or movement within your architecture.

• Triggering: A causal or immediate sequential relation between two process steps, events, or behaviors (e.g., Process A finishes, triggering Process B).

• Flow: The exchange or transfer of data, resources, energy, or information between components.

4. Other & Helper Relationships

These provide additional modeling flexibility and logical structuring.

• Specialization: Denotes that an element is a specific subtype, variation, or specialization of another more general element (inheritance).

• Junctions (And / Or): Used to connect, split, or converge multiple parallel or alternative relationship lines gracefully, allowing for complex logical routing without cluttering the diagram.

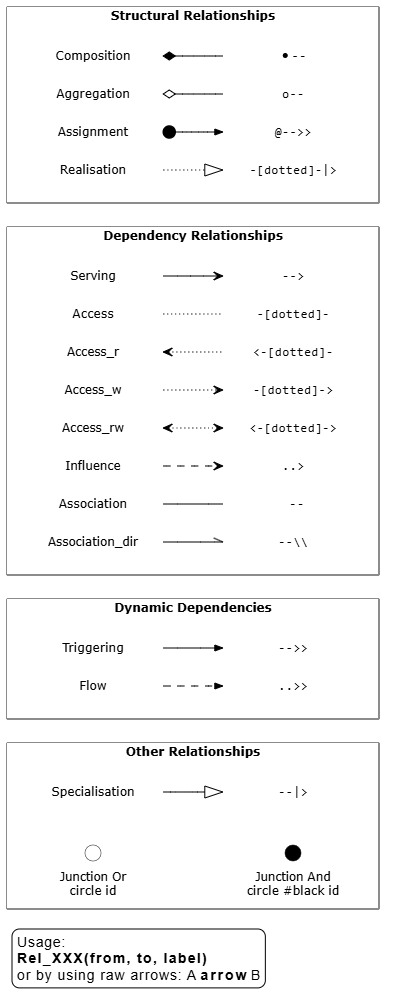

ArchiMate-PlantUML Implementation

When writing ArchiMate diagrams as code, the standard layout utilizes the Official ArchiMate-PlantUML Library Extension macros. The script below maps the visual connectors to their exact PlantUML code representation, serving as a living reference diagram.

@startuml
' ==============================================================================
' ArchiMate Relationship Reference Diagram
' ==============================================================================
!global $ARCH_LOCAL = %false()
!global $ARCH_DEBUG = %false()

!if ($ARCH_LOCAL == %false())
    !include <archimate/Archimate>
    ' Optional themes (uncomment to apply):
    ' !theme archimate-alternate from <archimate/themes>
    ' !theme archimate-handwriting from <archimate/themes>
    ' !theme archimate-lowsaturation from <archimate/themes>
    ' !theme archimate-saturated from <archimate/themes>
    ' !theme archimate-standard from <archimate/themes>
!else
    ' Local testing includes
    !$LOCAL_FOLDER = "../dist/plantuml-stdlib/stdlib/archimate"
    !include $LOCAL_FOLDER/Archimate.puml
!endif

skinparam nodesep 4
left to right direction

' --- Helper Procedure for Drawing Relationships ---
!procedure Draw($name, $raw, $rawOverride="")
    !if ($rawOverride == "")
        !$showRaw = $raw
    !else
        !$showRaw = $rawOverride
    !endif
    label $name
    label "$showRaw" <<mono>> as a$name
    $name $raw a$name
!endprocedure

hide stereotype
<style>
.mono {
    FontName monospaced
}
</style>

legend left
Usage:
**Rel_XXX(from, to, label)**
or by using raw arrows: A **arrow** B
end legend

rectangle "Other Relationships" as other {
    circle "Junction Or\ncircle id" <<junction>> as c1
    circle #black "Junction And\ncircle #black id" <<junction>> as c2
    c1 -[hidden]- c2
    Draw(Specialisation, "--|>")
}

rectangle "Dynamic Dependencies" as dynamic {
    Draw(Flow, "..>>")
    Draw(Triggering, "-->>")
}

rectangle "Dependency Relationships" as dependency {
    Draw(Association_dir, "--\\", "--\\\\")
    Draw(Association, " --")
    Draw(Influence, "..>")
    Draw(Access_rw, "<-[dotted]->")
    Draw(Access_w, "-[dotted]->")
    Draw(Access_r, "<-[dotted]-")
    Draw(Access, "-[dotted]-")
    Draw(Serving, "-->")
}

rectangle "Structural Relationships" as structural {
    Draw(Realisation, "-[dotted]-|>")
    Draw(Assignment, "@-->>")
    Draw(Aggregation, "o--")
    Draw(Composition, "*--")
}
@enduml

💡 Pro-Tip for Layout Control: You can control the layout orientation of your relationships inside the macros by appending directional suffixes such as _Up, _Down, _Left, or _Right (e.g., Rel_Realization_Up(gateway, paymentSrv)).

Complete ArchiMate Diagram Examples

Below are two practical examples demonstrating how to implement these concepts in PlantUML.

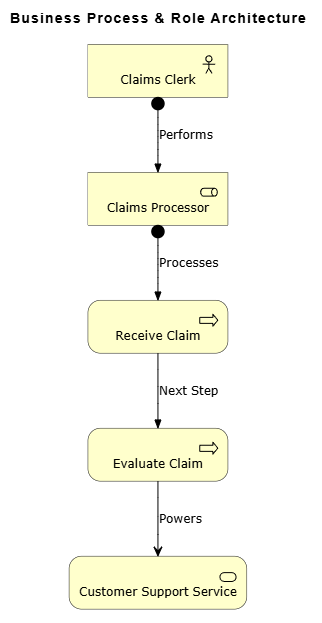

Example 1: High-Level Business Layer Interaction

This script models a Business Actor assigned to a Role, triggering a sequence of internal processes that ultimately serve a final Customer. It highlights Structural (Assignment) and Dynamic (Triggering, Serving) relationships.

@startuml
!include <archimate/Archimate>

title Business Process & Role Architecture

' ==============================================================================
' Elements Definition
' ==============================================================================
Business_Actor(actor, "Claims Clerk")
Business_Role(role, "Claims Processor")
Business_Process(proc1, "Receive Claim")
Business_Process(proc2, "Evaluate Claim")
Business_Service(srv, "Customer Support Service")

' ==============================================================================
' Relationships Implementation
' ==============================================================================
Rel_Assignment(actor, role, "Performs")
Rel_Assignment(role, proc1, "Processes")
Rel_Triggering(proc1, proc2, "Next Step")
Rel_Serving(proc2, srv, "Powers")

@enduml

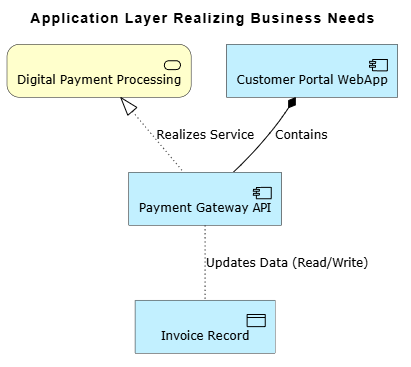

Example 2: Cross-Layer Realization (Application to Business Layer)

A core strength of ArchiMate is its ability to show how lower layers support higher layers. This script displays how functional application components interact via data objects to realize business-level components, utilizing Structural (Composition), Dependency (Access), and Realization relationships.

@startuml
!include <archimate/Archimate>

title Application Layer Realizing Business Needs

' ==============================================================================
' Business Layer
' ==============================================================================
Business_Service(paymentSrv, "Digital Payment Processing")

' ==============================================================================
' Application Layer
' ==============================================================================
Application_Component(portal, "Customer Portal WebApp")
Application_Component(gateway, "Payment Gateway API")
Application_DataObject(invoice, "Invoice Record")

' ==============================================================================
' Relationships Implementation
' ==============================================================================
Rel_Composition(portal, gateway, "Contains")

' Note: Use the standard Rel_Access macro.
' The Read/Write context is provided in the label.
Rel_Access(gateway, invoice, "Updates Data (Read/Write)")

Rel_Realization_Up(gateway, paymentSrv, "Realizes Service")

@enduml

Conclusion

Mastering ArchiMate relationships is essential for creating clear, unambiguous, and actionable enterprise architecture models. By transitioning from traditional drawing tools to PlantUML, architects can unlock the benefits of "Architecture as Code"—including seamless version control, automated CI/CD pipeline integration, and strictly enforced visual consistency.

Whether you are mapping out high-level business processes or detailing cross-layer application realizations, understanding the distinction between structural, dependency, and dynamic relationships ensures your diagrams accurately reflect the true nature of your enterprise. Use the matrix and examples provided in this guide as a foundational reference to elevate your architectural documentation and drive better alignment across your organization.
