Imagine trying to build a skyscraper using only a spreadsheet of materials and a verbal agreement between the architect and the construction crew. It would be chaotic, expensive, and likely collapse. Yet, in software development, we often jump straight into writing code with nothing more than a few Jira tickets and a Slack message.
Enter the Unified Modeling Language (UML). Despite the rise of rapid development frameworks, UML remains the universal visual language of software engineering. It is the bridge between abstract business requirements and concrete code. For beginners, UML can look like a confusing alphabet of boxes and arrows, but it is actually a highly logical tool designed to make complex systems understandable.
This comprehensive tutorial will demystify UML, guiding you from your first basic diagram to integrating visual modeling into modern Agile workflows. Whether you are a junior developer, a product manager, or a computer science student, this guide will equip you with the skills to design better software.
At its core, UML is not a programming language; it is a visual modeling language. Standardized by the Object Management Group (OMG), it provides a standard way to visualize the design of a system.
To keep things simple for beginners, UML diagrams are broadly divided into two main categories:
These diagrams show the static, physical, or conceptual parts of a system. They represent the "things" in your software.
Class Diagram: The backbone of object-oriented design. Shows classes, attributes, and relationships.
Component Diagram: Shows how larger software components are wired together.
Deployment Diagram: Maps software to physical hardware (servers, databases).
These diagrams show the dynamic behavior of the system, how objects interact, and how states change over time.
Use Case Diagram: Shows what the system does from the user's perspective.
Sequence Diagram: Shows how objects interact in a specific time sequence.
Activity Diagram: Similar to a flowchart, showing the flow of control or data.
State Machine Diagram: Shows the different states an object can be in.
Beginner Tip: You don’t need to memorize all 14 UML diagram types. Mastering just three—Use Case, Class, and Sequence—will allow you to model 90% of everyday software architecture.
Why take the time to draw diagrams when you could just write code? Here are seven compelling reasons:
Universal Communication: UML is language-agnostic. A Java developer, a Python data scientist, and a non-technical product manager can all look at a Use Case diagram and understand the exact same thing.
Blueprinting Before Coding: Just as architects don't build without blueprints, developers shouldn't code without designs. UML helps identify logical flaws before a single line of expensive code is written.
Taming Complexity: For large enterprise systems, reading thousands of lines of code is impossible. UML abstracts the complexity into digestible visual chunks.
Improved Documentation: Code comments go stale. UML diagrams provide high-level architectural documentation that survives refactoring.
Faster Onboarding: When a new developer joins a team, a well-crafted Class or Component diagram can reduce their ramp-up time from weeks to days.
Database and API Design: UML is excellent for visualizing database schemas (via Class diagrams) and API payloads before implementation.
Standardization: Because it is an industry standard, hiring managers and clients immediately understand your technical documentation.
Different phases of a project require different levels of detail. Here is how to choose the right diagram, complete with PlantUML examples.
(Note: PlantUML is a fantastic "diagrams-as-code" tool. You can render the code blocks below using any online PlantUML renderer).

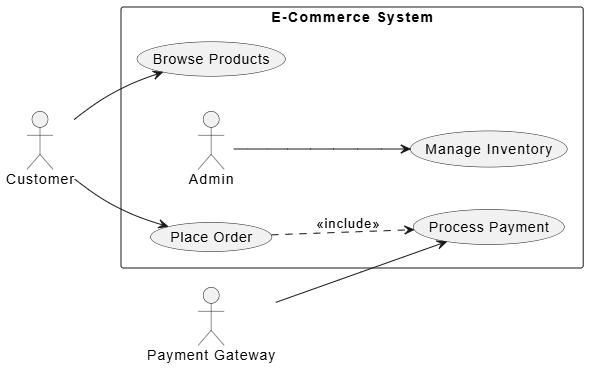

When to use: At the very beginning of a project to define the scope and understand user interactions.
What it shows: Actors (users/external systems) and Use Cases (features/goals).
@startuml
left to right direction
skinparam packageStyle rectangle
actor "Customer" as customer
actor "Payment Gateway" as gateway
rectangle "E-Commerce System" {
usecase "Browse Products" as UC1
usecase "Place Order" as UC2
usecase "Process Payment" as UC3
usecase "Manage Inventory" as UC4
customer --> UC1
customer --> UC2
UC2 ..> UC3 : <<include>>
gateway --> UC3
actor "Admin" as admin
admin --> UC4
}
@enduml

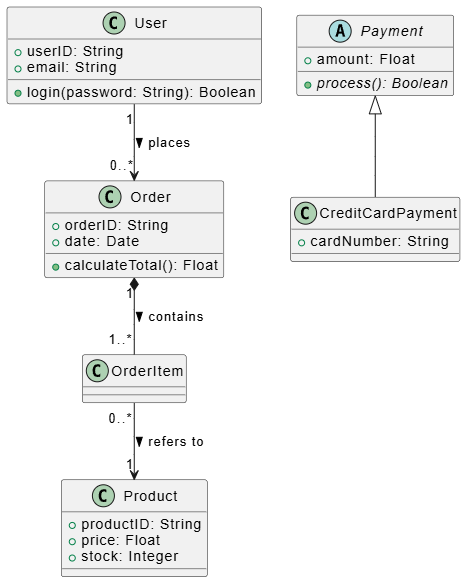

When to use: During the design phase to map out the database schema, object-oriented structure, and API models.
What it shows: Classes, attributes, methods, and relationships (inheritance, composition, association).
@startuml
class User {
+ userID: String
+ email: String
+ login(password: String): Boolean
}
class Order {
+ orderID: String
+ date: Date
+ calculateTotal(): Float
}
class Product {
+ productID: String
+ price: Float
+ stock: Integer
}
User "1" --> "0..*" Order : places >
Order "1" *-- "1..*" OrderItem : contains >
OrderItem "0..*" --> "1" Product : refers to >
abstract class Payment {
+ amount: Float
+ {abstract} process(): Boolean
}
class CreditCardPayment extends Payment {
+ cardNumber: String
}
@enduml

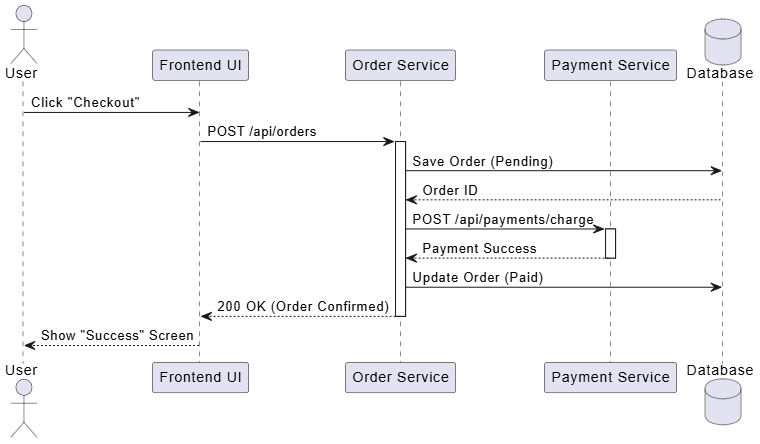

When to use: When designing complex API calls, microservice interactions, or tricky business logic flows.
What it shows: The chronological sequence of messages passed between objects.
@startuml
actor User
participant "Frontend UI" as UI
participant "Order Service" as OS
participant "Payment Service" as PS
database "Database" as DB
User -> UI : Click "Checkout"
UI -> OS : POST /api/orders
activate OS
OS -> DB : Save Order (Pending)
DB --> OS : Order ID
OS -> PS : POST /api/payments/charge
activate PS
PS --> OS : Payment Success
deactivate PS
OS -> DB : Update Order (Paid)
OS --> UI : 200 OK (Order Confirmed)
deactivate OS
UI --> User : Show "Success" Screen
@enduml
A common myth is that UML is a "Waterfall" tool that slows down Agile teams. In reality, modern UML thrives in Agile and DevOps when applied correctly through Agile Modeling.
Model Just Enough, Just in Time: Don't model the entire system upfront. Create a quick Class diagram during a sprint planning session to align the team, then discard or archive it.
UML as Code: Tools like PlantUML and Mermaid.js allow you to write diagrams in plain text. This means your diagrams can be stored in Git alongside your code, reviewed in Pull Requests, and version-controlled.
CI/CD Integration: You can automate the generation of UML diagrams from your codebase directly in your DevOps pipeline, ensuring your documentation is never out of sync with your actual code.
Know Your Audience: A developer needs a detailed Sequence diagram; a stakeholder just needs a high-level Use Case diagram. Tailor your detail level.
Keep it Iterative: Treat diagrams like code. Draft them, review them, and refine them.
Use Standard Notations: Stick to the official UML syntax (e.g., solid lines for associations, dashed lines for dependencies) so others can read your work.
Over-modeling: Trying to map every single getter and setter in a Class diagram. Focus on the core architecture, not the trivial details.
Treating Diagrams as the Final Product: The goal of UML is to build better software, not to create beautiful posters. If a diagram takes longer to draw than the code it represents, you're doing it wrong.
Mixing Abstraction Levels: Don't put high-level business logic and low-level database queries on the same Sequence diagram.
While "diagrams-as-code" (PlantUML) is great for developers, visual drag-and-drop tools are often better for collaborative design and quick brainstorming.
For beginners and enterprise teams alike, Visual Paradigm is highly recommended. It offers a robust, intuitive interface that supports all 14 UML diagram types.
Why Visual Paradigm stands out for modern teams:
Intuitive Drag-and-Drop: Massive shape libraries make drawing standard UML diagrams effortless.
Visual Paradigm AI (VP AI): This is a game-changer for beginners.
Text-to-Diagram: You can simply type a prompt like, "Create a sequence diagram for a user logging in via OAuth," and the AI will generate the UML structure for you.
Smart Suggestions: The AI analyzes your diagram and suggests missing relationships or logical flaws.
Code Generation & Reverse Engineering: You can generate Java/C# code directly from your Class diagrams, or import existing code to automatically generate UML diagrams.
Collaboration: Cloud-based features allow distributed Agile teams to co-author diagrams in real-time, leaving comments and annotations directly on the canvas.
UML is not about rigid rules or creating perfect, academic artwork; it is about clarity. By taking the time to visually model your software, you are forcing yourself to think through the logic, edge cases, and architecture before committing to code.
As you transition from a beginner to an advanced practitioner, remember that UML is a tool in your toolkit, not a religion. Use the diagrams that provide value to your specific project phase, leverage modern AI-powered tools like Visual Paradigm to speed up your workflow, and integrate your models seamlessly into your Agile pipelines.
Mastering UML will not only make you a better coder; it will make you a better communicator, a sharper architect, and an invaluable asset to any software development team. Grab your favorite modeling tool, sketch out your next idea, and watch your software designs come to life.
