The Ultimate Showdown: Mermaid, VPasCode, and the Best Tools for Diagram-as-Code

Diagram-as-Code (DaC) has transformed how technical teams create and maintain documentation. By treating diagrams as code artifacts, teams gain version control, automated updates, and seamless collaboration. But with multiple tools and approaches available, choosing the right ecosystem for your team can be challenging.

This comprehensive guide compares Mermaid.js (the open-source standard), Mermaid Chart (the commercial platform), and Visual Paradigm's VPasCode ecosystem with its AI features and OpenDocs pipeline. We'll explore realistic use cases with correct Mermaid syntax and show you how these tools work together.

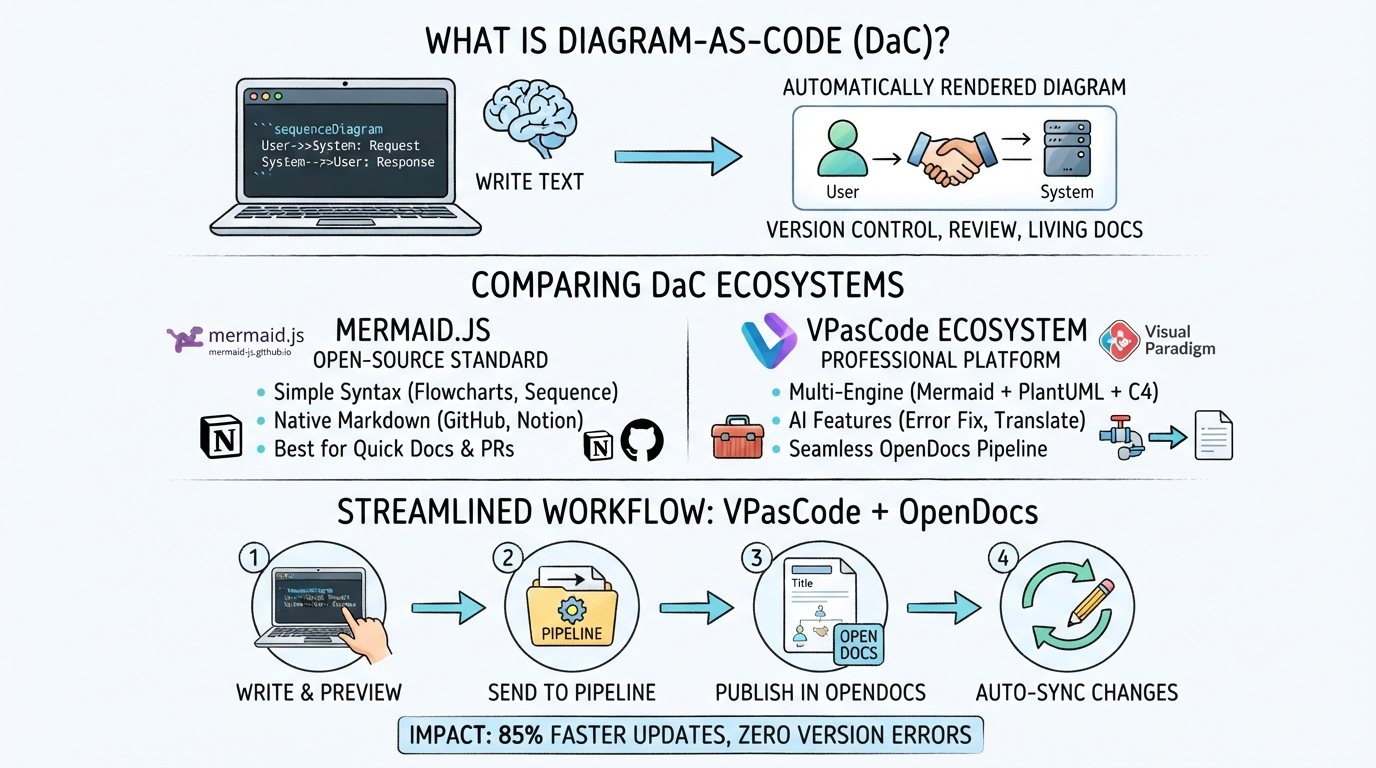

What Is Diagram-as-Code?

Diagram-as-Code means writing diagrams in plain text using a structured syntax. This approach offers several advantages:

• Version control: Track changes in Git like application code

• Review workflows: Use pull requests to review diagram changes

• Living documentation: Keep diagrams synchronized with system evolution

• Automation: Generate diagrams as part of CI/CD pipelines

Three major engines dominate the DaC space:

Tool 1: Mermaid.js – The Open-Source Standard

Mermaid.js is a JavaScript library that renders diagrams from text definitions. It's natively supported in GitHub, Notion, and many Markdown editors, making it the most accessible DaC tool.

Key Capabilities

Mermaid supports multiple diagram types:

• Sequence diagrams

• Flowcharts

• Class diagrams

• State diagrams

• Gantt charts

• C4 diagrams (experimental)

Realistic Examples with Correct Syntax

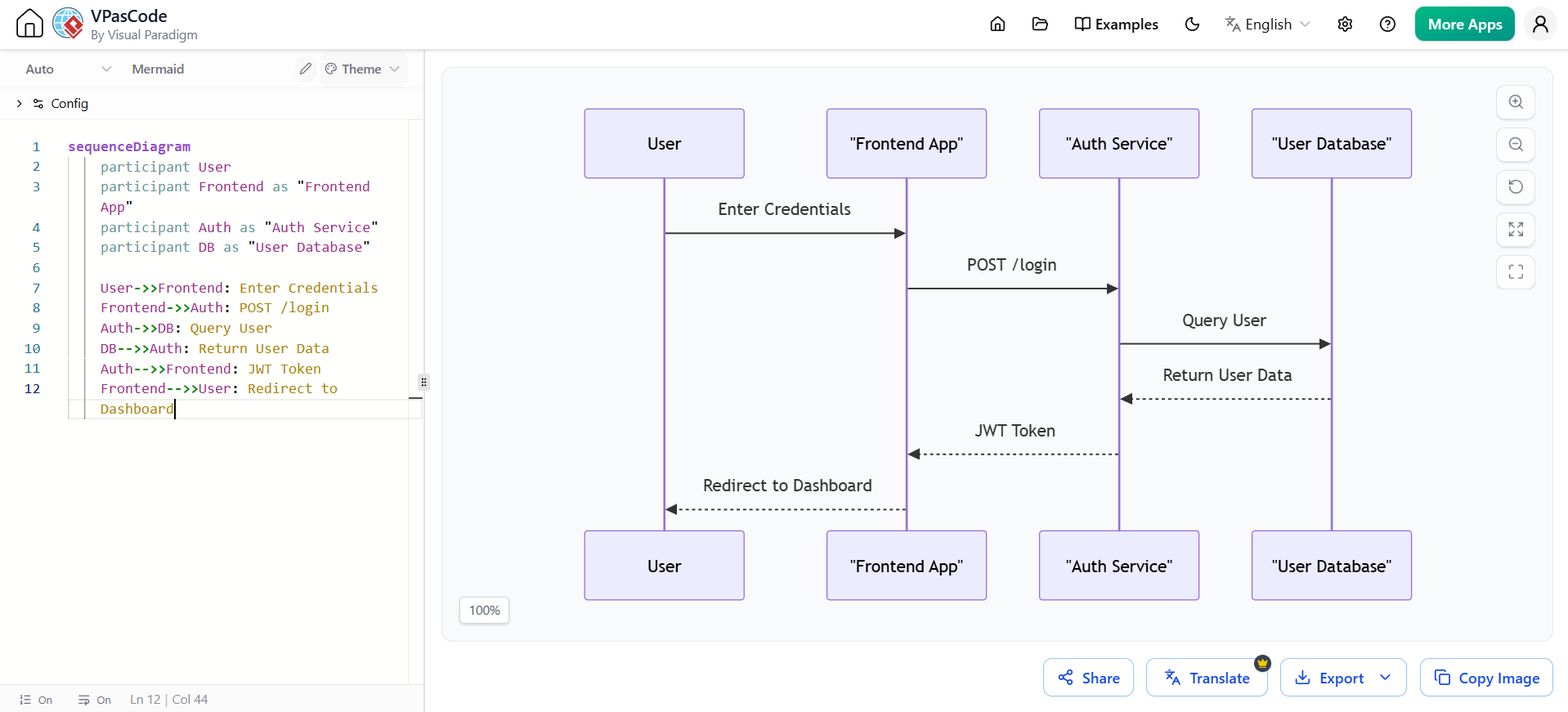

Example 1: API Authentication Sequence Diagram

This sequence diagram shows a user logging into an application:

sequenceDiagram
    participant User
    participant Frontend as "Frontend App"
    participant Auth as "Auth Service"
    participant DB as "User Database"

    User->>Frontend: Enter Credentials
    Frontend->>Auth: POST /login
    Auth->>DB: Query User
    DB-->>Auth: Return User Data
    Auth-->>Frontend: JWT Token
    Frontend-->>User: Redirect to Dashboard

Key syntax notes: Use participant to define actors, ->> for solid arrows with arrowheads, and -->> for dotted return arrows. Aliases make labels more readable.

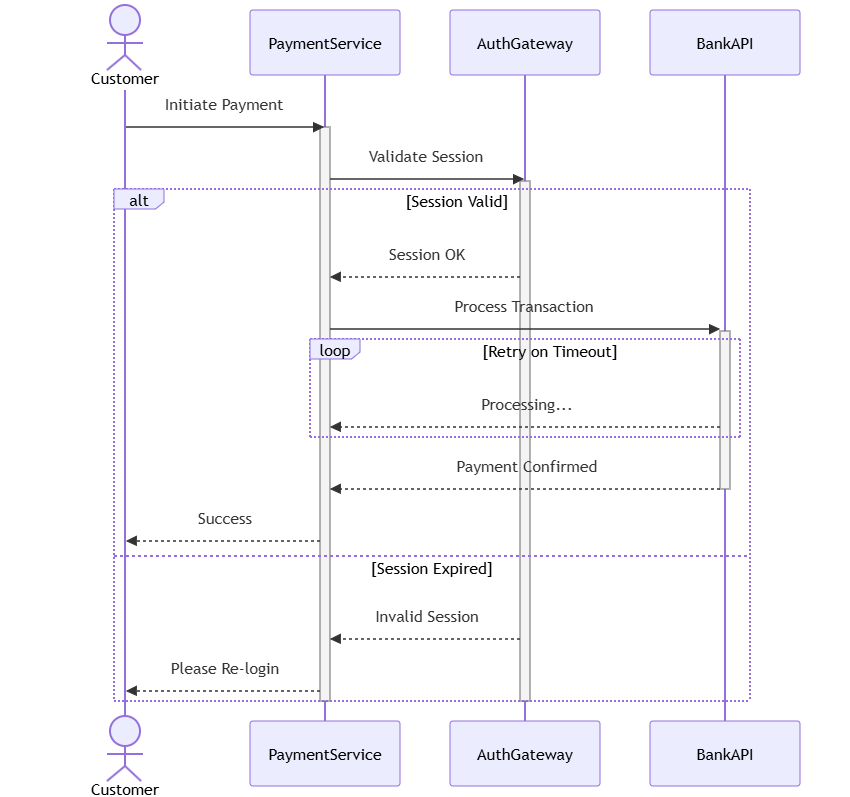

Example 2: Payment Processing with Alt and Loop

This more complex sequence diagram shows a payment flow with conditional paths:

sequenceDiagram
    actor Customer
    participant PaymentService
    participant AuthGateway
    participant BankAPI

    Customer->>PaymentService: Initiate Payment
    activate PaymentService

    PaymentService->>AuthGateway: Validate Session
    activate AuthGateway

    alt Session Valid
        AuthGateway-->>PaymentService: Session OK
        PaymentService->>+BankAPI: Process Transaction

        loop Retry on Timeout
            BankAPI-->>PaymentService: Processing...
        end

        BankAPI-->>-PaymentService: Payment Confirmed
        PaymentService-->>Customer: Success
    else Session Expired
        AuthGateway-->>PaymentService: Invalid Session
        PaymentService-->>Customer: Please Re-login
    end

    deactivate AuthGateway
    deactivate PaymentService

Key syntax notes: Use alt for conditional branches, loop for iterations, and activate/deactivate (or +/- shorthand) to show lifeline activation.

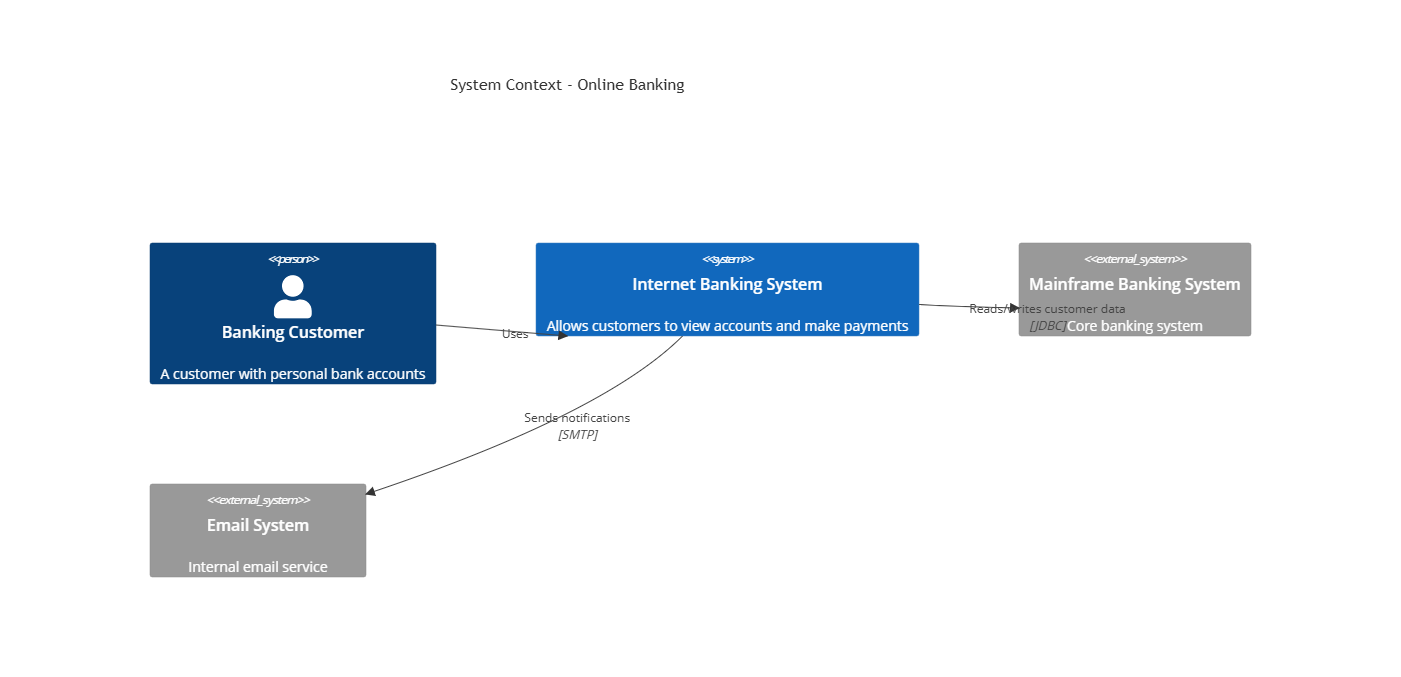

Example 3: System Context Diagram (C4 Level 1)

Mermaid's C4 support is experimental but functional for many use cases:

C4Context
    title System Context - Online Banking

    Person(customer, "Banking Customer", "A customer with personal bank accounts")
    System(bankingSystem, "Internet Banking System", "Allows customers to view accounts and make payments")
    System_Ext(mainframe, "Mainframe Banking System", "Core banking system")
    System_Ext(emailSystem, "Email System", "Internal email service")

    Rel(customer, bankingSystem, "Uses")
    Rel(bankingSystem, mainframe, "Reads/writes customer data", "JDBC")
    Rel(bankingSystem, emailSystem, "Sends notifications", "SMTP")

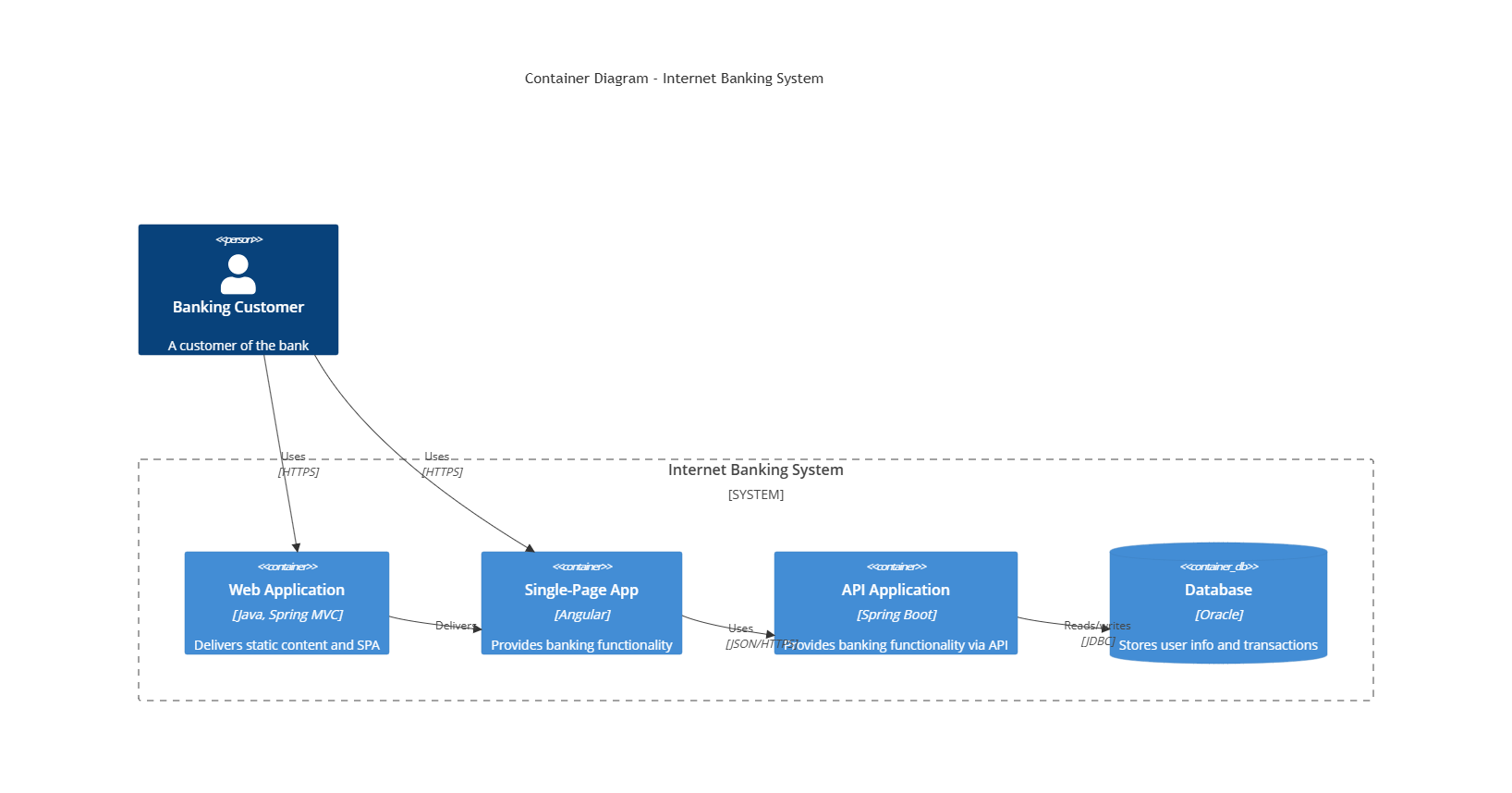

Example 4: Container Diagram (C4 Level 2)

C4Container
    title Container Diagram - Internet Banking System

    Person(customer, "Banking Customer", "A customer of the bank")

    System_Boundary(bankingSystem, "Internet Banking System") {
        Container(webApp, "Web Application", "Java, Spring MVC", "Delivers static content and SPA")
        Container(spa, "Single-Page App", "Angular", "Provides banking functionality")
        Container(api, "API Application", "Spring Boot", "Provides banking functionality via API")
        ContainerDb(db, "Database", "Oracle", "Stores user info and transactions")
    }

    Rel(customer, webApp, "Uses", "HTTPS")
    Rel(customer, spa, "Uses", "HTTPS")
    Rel(webApp, spa, "Delivers")
    Rel(spa, api, "Uses", "JSON/HTTPS")
    Rel(api, db, "Reads/writes", "JDBC")

Limitations of Mermaid.js

• C4 support is experimental: Syntax may change in future releases

• Limited advanced UML: For strict UML diagrams, PlantUML is more capable

• No built-in collaboration: Requires external tools for team workflows

Tool 2: VPasCode – The Unified Diagram Playground

VPasCode is Visual Paradigm's browser-based Diagram-as-Code editor that supports Mermaid, PlantUML, and Graphviz in a single environment.

Why Use VPasCode?

Correct Syntax Examples for VPasCode

VPasCode handles all three engines. Here's the same authentication flow in each syntax:

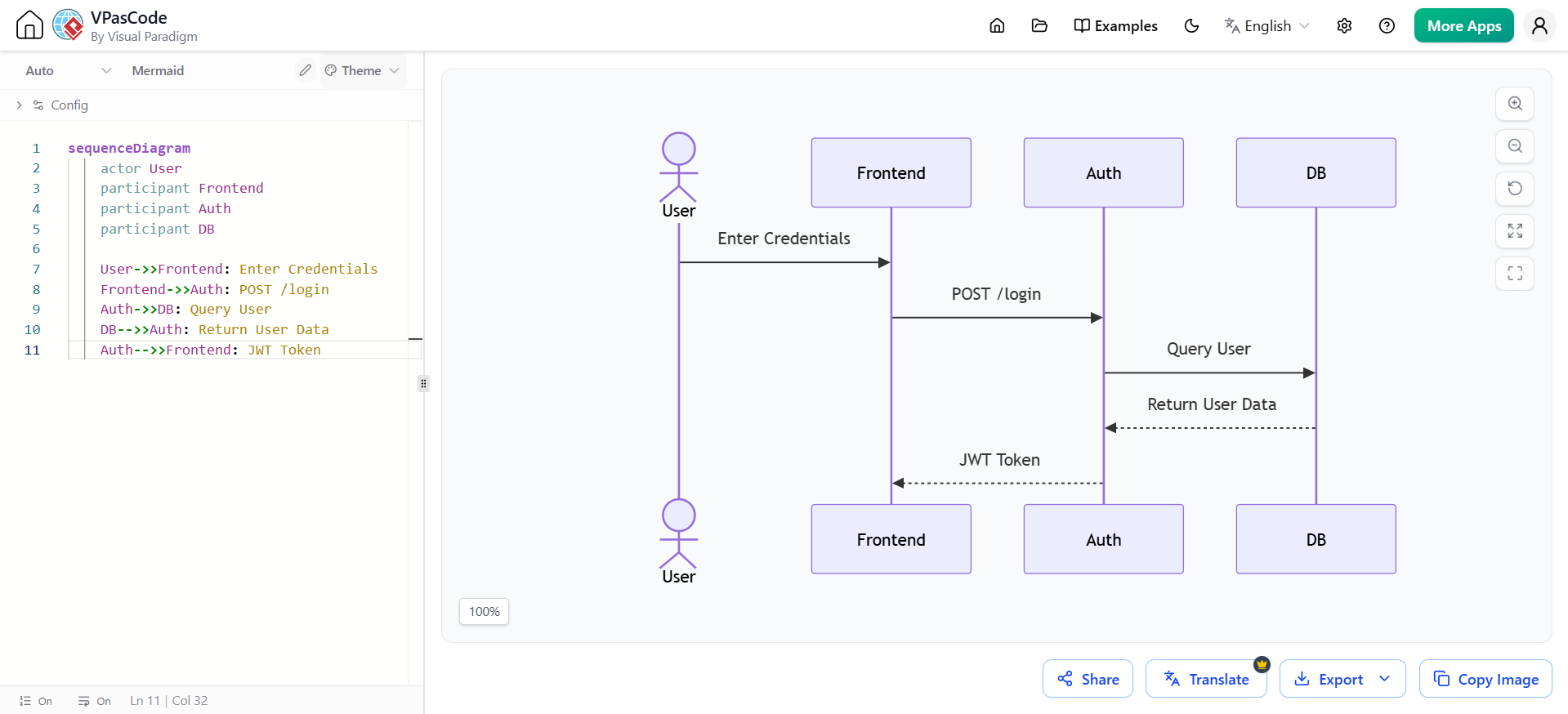

Mermaid Syntax (in VPasCode)

sequenceDiagram
    actor User
    participant Frontend
    participant Auth
    participant DB

    User->>Frontend: Enter Credentials
    Frontend->>Auth: POST /login
    Auth->>DB: Query User
    DB-->>Auth: Return User Data
    Auth-->>Frontend: JWT Token

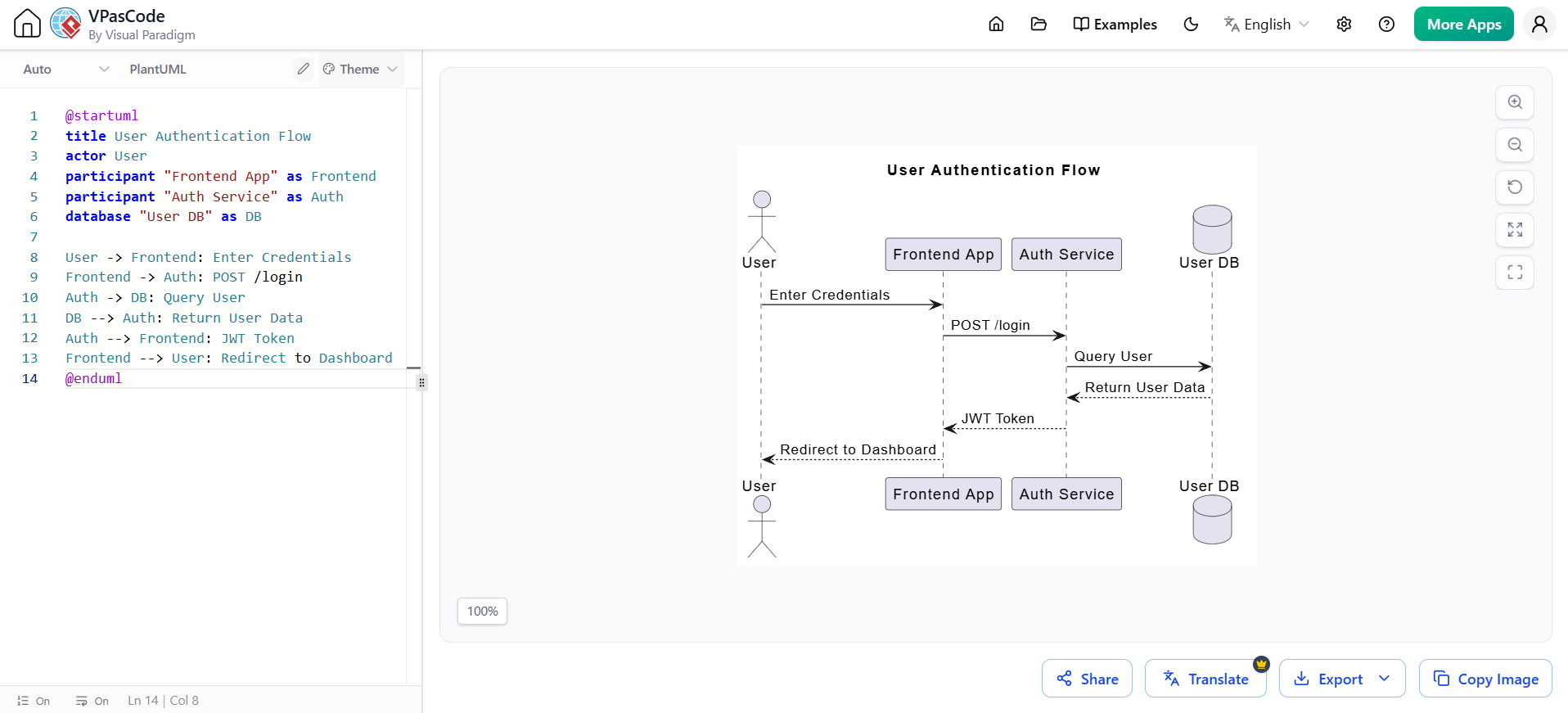

PlantUML Syntax (in VPasCode)

@startuml
title User Authentication Flow
actor User
participant "Frontend App" as Frontend
participant "Auth Service" as Auth
database "User DB" as DB

User -> Frontend: Enter Credentials
Frontend -> Auth: POST /login
Auth -> DB: Query User
DB --> Auth: Return User Data
Auth --> Frontend: JWT Token
Frontend --> User: Redirect to Dashboard
@enduml

The "Wrong Diagram Type?" Feature

If you paste PlantUML code while Mermaid is active (or vice versa), VPasCode detects the mismatch and offers a one-click engine switch. This is invaluable when working across teams using different syntaxes.

Tool 3: AI Chatbots – From Natural Language to Diagrams

AI is transforming how diagrams are created. Instead of memorizing syntax, you can describe what you want in plain English.

How It Works

AI tools (like those integrated into VPasCode and OpenDocs) can:

1. Generate diagrams from prompts: Type "Create a sequence diagram for payment processing" and get working code

2. Fix syntax errors: AI detects and corrects mistakes in your diagram code

3. Translate diagrams: Localize labels and descriptions into multiple languages

4. Refine designs: Iterate on diagrams through natural language feedback

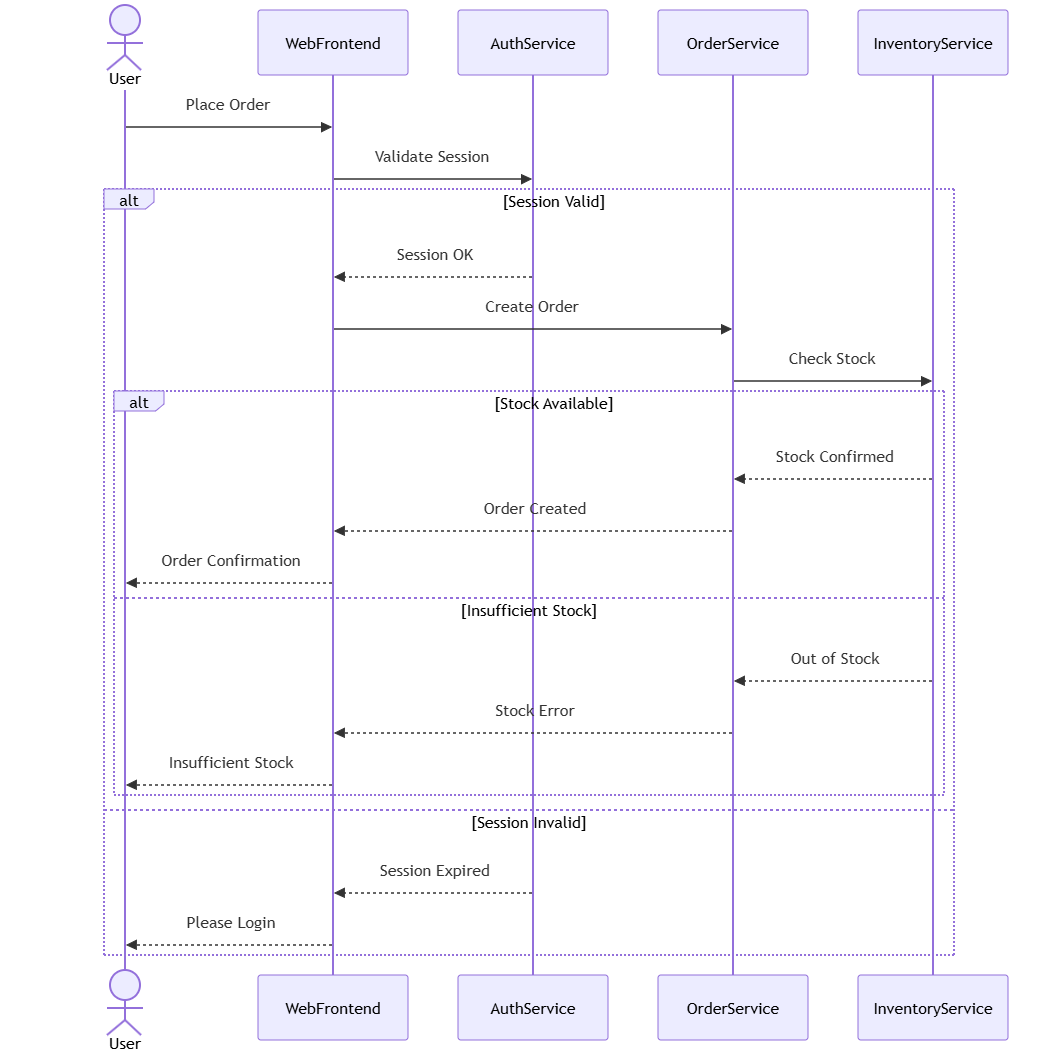

Example: AI-Generated Sequence Diagram

Prompt: "Create a sequence diagram showing a user placing an order through a web frontend. Include authentication check and inventory validation."

AI Output (Mermaid):

sequenceDiagram
    actor User
    participant WebFrontend
    participant AuthService
    participant OrderService
    participant InventoryService

    User->>WebFrontend: Place Order
    WebFrontend->>AuthService: Validate Session

    alt Session Valid
        AuthService-->>WebFrontend: Session OK
        WebFrontend->>OrderService: Create Order

        OrderService->>InventoryService: Check Stock
        alt Stock Available
            InventoryService-->>OrderService: Stock Confirmed
            OrderService-->>WebFrontend: Order Created
            WebFrontend-->>User: Order Confirmation
        else Insufficient Stock
            InventoryService-->>OrderService: Out of Stock
            OrderService-->>WebFrontend: Stock Error
            WebFrontend-->>User: Insufficient Stock
        end
    else Session Invalid
        AuthService-->>WebFrontend: Session Expired
        WebFrontend-->>User: Please Login
    end

AI in VPasCode

Visual Paradigm's AI capabilities include:

• AI Code Error Fixing: Detects syntax mistakes and suggests corrections

• AI Translation: Translates diagram labels for international documentation

• Prompt-to-Diagram: Generates code from natural language descriptions

Tool 4: OpenDocs Pipeline – Seamless Documentation Integration

The VPasCode-to-OpenDocs pipeline is Visual Paradigm's killer feature: a direct connection from diagram editing to published documentation.

The Workflow

1. Draft in VPasCode: Write diagram syntax with real-time preview

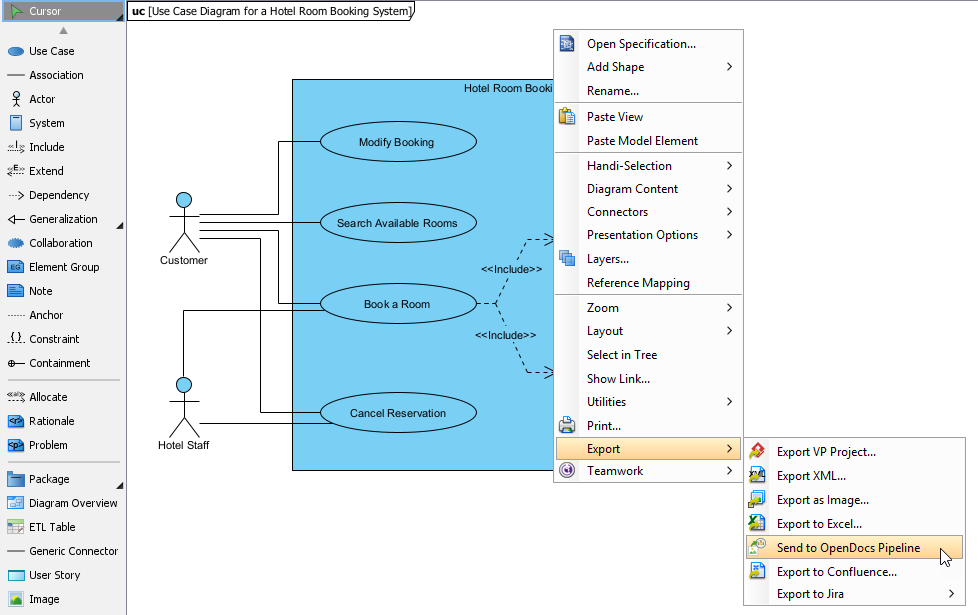

2. Send to Pipeline: Click "Send to OpenDocs Pipeline" with optional context notes

3. Insert in OpenDocs: Pull diagrams from the Pipeline pane into documentation

4. Edit In-Place: Click the pencil icon to reopen in VPasCode for updates

5. Auto-Sync: Changes propagate without re-uploading files

Real-World Impact: NovaStream Case Study

A mid-sized SaaS company reduced documentation update time by 85% using this workflow:

Example: Updating a Payment Architecture Diagram

Previous Process:

• Engineer exports diagram → modifies syntax → exports new PNG → emails writer

• Writer uploads to Confluence → updates captions → reviews with PM

• Total time: 55 minutes

With Pipeline:

• Writer clicks pencil icon on outdated diagram in OpenDocs

• Engineer updates TLS parameter in VPasCode

• Clicks "Send to Pipeline" with changelog note

• Writer inserts updated version in one click

• Total time: 8 minutes

Comparison: Mermaid.js vs. VPasCode Ecosystem

Which Tool Should You Choose?

Choose Mermaid.js If:

• You primarily write Markdown documentation in GitHub, Notion, or similar platforms

• You need simple flowcharts and sequence diagrams

• You prefer open-source, community-driven tools

• Budget is a constraint

Choose VPasCode + OpenDocs If:

• You need professional UML and C4 architecture diagrams

• Your team has multiple syntax preferences (Mermaid + PlantUML)

• You want AI-powered error fixing and generation

• You need a seamless documentation pipeline from diagram to published content

• Audit trails and enterprise workflows matter

Best Practice: Use Both

Many teams adopt a hybrid approach:

1. Draft quick diagrams in Mermaid for GitHub PRs and quick documentation

2. Use VPasCode for production architecture diagrams requiring PlantUML or C4 models

3. Leverage OpenDocs for living documentation that stays synchronized with system changes

Conclusion

The Diagram-as-Code ecosystem offers tools for every need and budget. Mermaid.js provides an accessible, open-source foundation with native Markdown integration. VPasCode elevates the experience with multi-engine support, AI assistance, and a seamless pipeline to OpenDocs documentation.

For teams serious about maintaining accurate, living documentation, the VPasCode-OpenDocs pipeline represents the current state-of-the-art. As one engineering lead put it: "We were spending more time managing diagram files than actually documenting our system. Our 'living documentation' was effectively dead on arrival."

The tools exist to make documentation a first-class citizen in your development workflow. Choose the approach that matches your team's needs, and start treating diagrams with the same rigor as your application code.
