In today's dynamic and ever changing business environment, software systems need to be scalable and change-tolerant, yet remain stable, efficient and user friendly. Visual modeling is one of the key factors to successful software development. Among the various types of popular visual models, business process models end users' business workflow, use case model helps capture system goals or requirements, class diagram convey design ideas and produce blue print of data structure, sequence diagram models the dynamic behavior, etc. Visual modeling is important not just because it helps visualize ideas, but also to aid in communication. Everyone involved in project, from users, analysts to developers can communicate development plan and design changes through the sharing and discussion of visual models as long as they understand the modeling language applied.

Effective communication can be an important factor to a project's success. While various visual modeling languages provide rich sets of modeling notations in describing ideas, the way you share and pass your model with others can influence the efficiency of communication, hence affect the efficiency of project and quality of work. Having a face-to-face meeting can be valuable, especially for communicating with end users to gather business requirements and discuss process design. Unfortunately, meeting can be costly in terms of time and money, and is difficult to arrange.

PostMania is a tool to facilitate effective design sharing and discussion among everyone in a project. PostMania is integrated into Visual Paradigm Teamwork Server, providing you with the capability to publish your model on the Web and invite others for discussion. You can send a hyperlink to stakeholders and teammates for reviewing your model through a Web browser anytime they get ready. They can give comment or ask questions by posting discussion topics to a model, or to a specific part of a model. Other than reviewing designs, stakeholders can keep track of design changes to make sure the process behaves as expected. Developers can get up-to-date system specification and design guidelines. Everyone can discuss and debate designs for clearing uncertainty, requesting for the execution of planned change and exploring design alternatives. With PostMania, you can keep in touch with stakeholders, business analysts, designers, developers and testers worldwide without even leaving the office.

In this tutorial, we will demonstrate the use of PostMania for the communication between John, a business analyst and Stephen, a key business stakeholder. In order to complete this tutorial, you need to have:

Case Study: Hello World Retail Clothing

Case study: Hello World Inc., a retail-clothing company is planning to launch an online retail store. The IT department of Hello World Inc. is asked to develop a backend system for tracking order, managing delivery and issuing invoice. John, a business analyst of the IT department has met with Stephen, a regional sales manager of Hello World Inc. in gathering the background information required in developing the system, which includes the studying of how different departments work and collaborate with each other in delivering an order.

As part of the effort, John has developed a process map based on the information gathered. John has used Visual Paradigm in modeling and VPository for team collaboration. Here is John's process design.

John wants to discuss and confirm the process map with Stephen. Since Stephen is currently busy on another project, John has decided to share his work with Stephen online, which allows Stephen to view and comment on the map anytime when he is free. And this can be achieved using the PostMania tool built inside VPository.

Preparing for this Tutorial

In this tutorial you are going to share a Business Process Diagram (BPD) online using PostMania. In order not to mess up any production data, we will create a new project for this tutorial. In this section, you are going to create such a project in VPository.

Subscribing to VPository

VPository is a cloud service provided by Visual Paradigm. Part of its functionality consists of a concurrent versioning system that keeps your projects online and provides your team with the capability to work collaboratively and concurrently.

In order to complete this tutorial, you need to use VPository in versioning your work. In this section you are going to subscribe to VPository. If you are already using VPository, please skip this section and move on to the next section to create a new project.

  1. Select Team > Select Repository from the application toolbar.
  2. In the popup window, click on Subscribe under Cloud Server (VPository) Registration.
    Subscribe to VPository
  3. In the Subscribe to VPository window, enter your email address, the password and the cloud entry point. Usually, the company or team name is entered as cloud entry point (e.g. visual-paradigm.vpository.com).
    Entering subscription details
  4. Click Subscribe.

Creating project

  1. Create a new project in Visual Paradigm by selecting Project > New from the toolbar.
  2. In the New Project window, enter Tutorial as the project name.

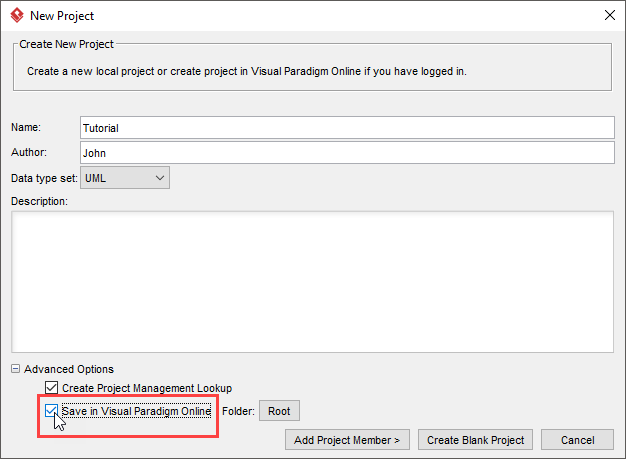

  3. Expand Advanced Options and check Save in VPository.
    Create new project
  4. Click Create Blank Project.

Drawing BPD

  1. Select Diagram > New from the toolbar.
  2. In the New Diagram window, select Business Process Diagram and click Next.

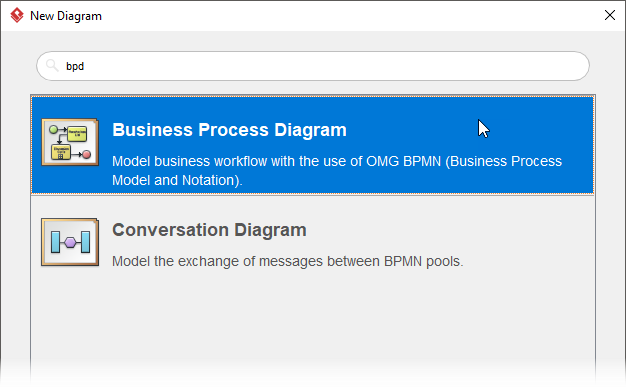

    New business process diagram
  3. Enter Order Delivery as diagram name and click OK.
  4. Draw the diagram below.
    Simple business process diagram
  5. Commit the project to VPository by selecting Team > Commit from the application toolbar. Click Commit when the Commit window appear.

Sharing my design online

In this previous section you have drawn a BPD. In this section, share it online with Stephen, the business stakeholder.

  1. Click on the tiny button attached to the right of the diagram to enable the action bar.
    Opening action bar
  2. Click on the button PostMania Topic Pane.
    Opening PostMania Topic Pane

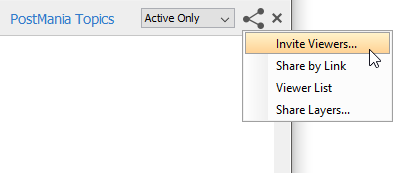

  3. At the top of the PostMania Topic Pane, click on the share button and select Invite Viewers... from the popup menu.
    Invite viewers

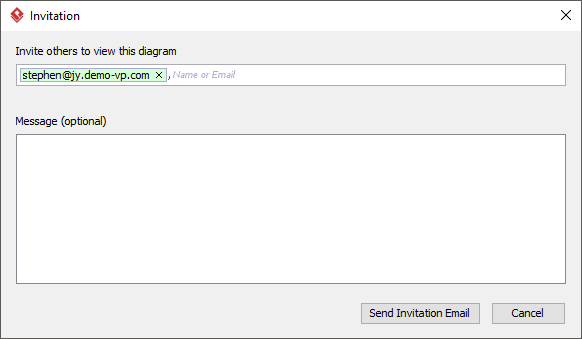

  4. Enter the email address of the invitee, in this case, Stephen's. Of course you don't need to find someone called Stephen in order to complete this tutorial. Just enter any email address available would be fine. Just to make sure that the email address is valid and accessible because VPository will send him/her an invitation email to viewing the diagram shared.
    Entering invitee email
  5. Click Send Invitation Email.

Reviewing my design online

In the previous section, we have shared a BPD with Stephen. In this section, let's see how Stephen will visit PostMania for reviewing the process map.

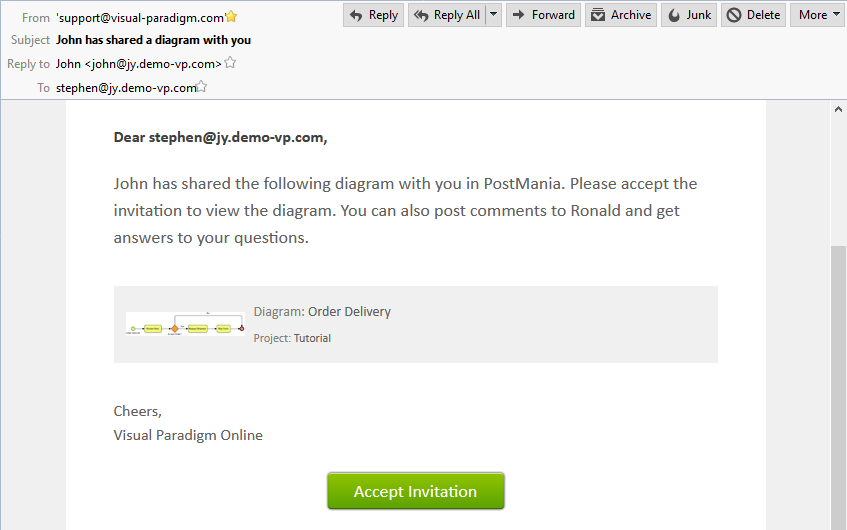

  1. Let's check the email inbox of Stephen. There should be a new email with subject like John has shared a diagram with you. Open it.
    PostMania invitation email
  2. In order for Stephen to view the diagram, he has to accept the invitation. Click the Accept Invitation button in the email.
  3. The New Viewer Form is opened in the web browser. Enter the details of the viewer. In this case, Stephen's.

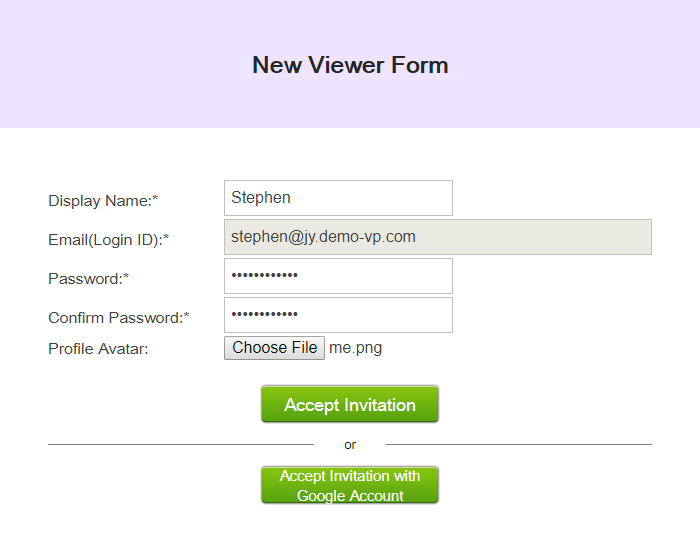

    Entering profile
  4. Click Accept Invitation.
  5. Stephen is brought to the BPD. From now on, he can now view the BPD anytime and anywhere through his web browser.

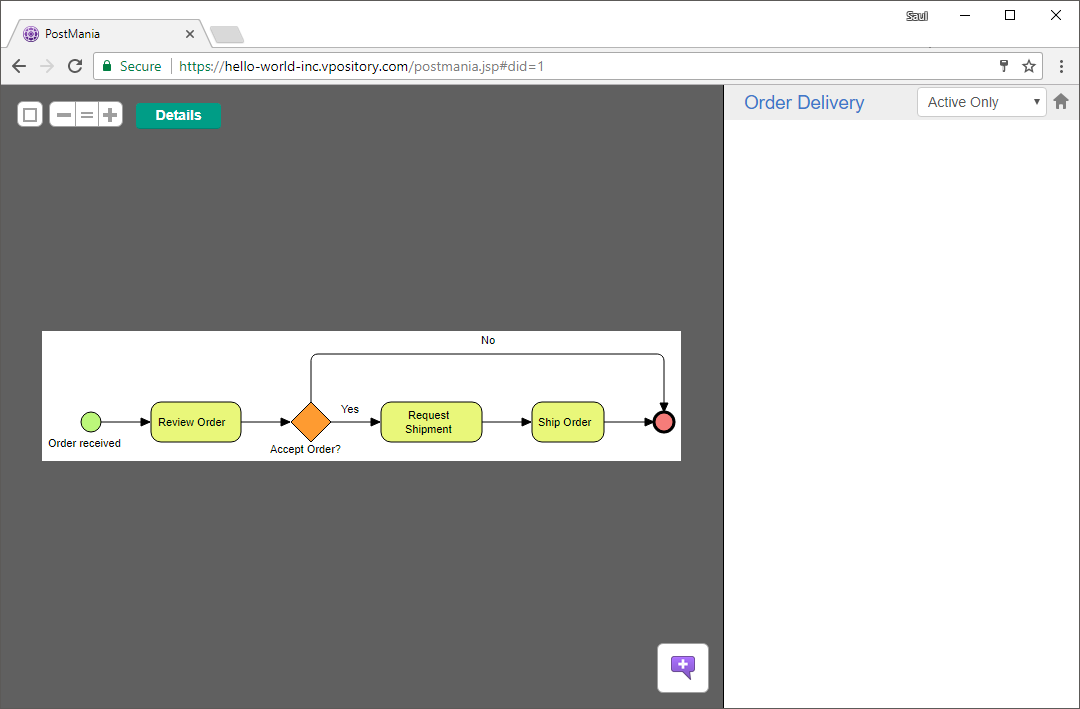

    Viewing BPD online

    In real case, it is quite likely that the design would be much bigger comparing to the example we use here. If you want to see the other parts of the diagram, press on the diagram and drag it. You can drag to any direction you want.

Commenting my design

Anyone who have been shared a diagram can view the diagram in browser and post comment on the diagram. Stakeholders can use this function to report status ("I confirm..."), ask questions ("e.g. When will this be done?"), seek for confirmation ("May I remove this from the diagram?"), request changes ("Fix it please"), etc.

Stephen has reviewed John's design and is not pleased. He discovered that the design has not included the need to send invoice to customer. Stephen is going to ask John to correct the design.

Comment can be posted for a diagram or for specific shape (including connector) in a diagram. In this tutorial, let's post a comment to the diagram.

  1. Click on the background of the diagram.

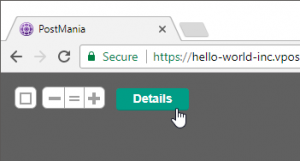

  2. Click on the Details button at the top left of the viewer.
    View details
  3. On the right of the screen, click on New Topic.

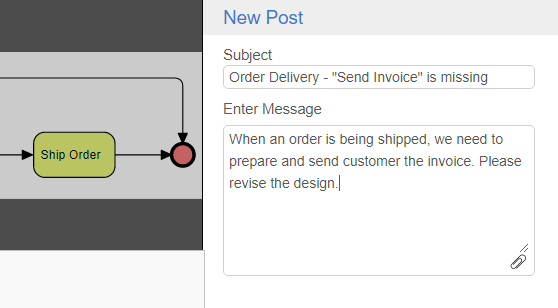

  4. Enter the subject and message as shown in the figure below.
    Entering comment

    By the way you may click the clip icon at bottom right to add file attachments into the message as needed.

  5. Click Post. The comment is created.

Reading a comment in Visual Paradigm

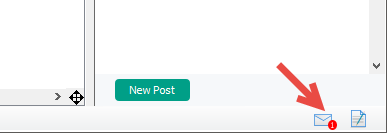

When Stephen posted a comment, John, the business analyst will be notified via the status bar, like this:

Received PostMania notification

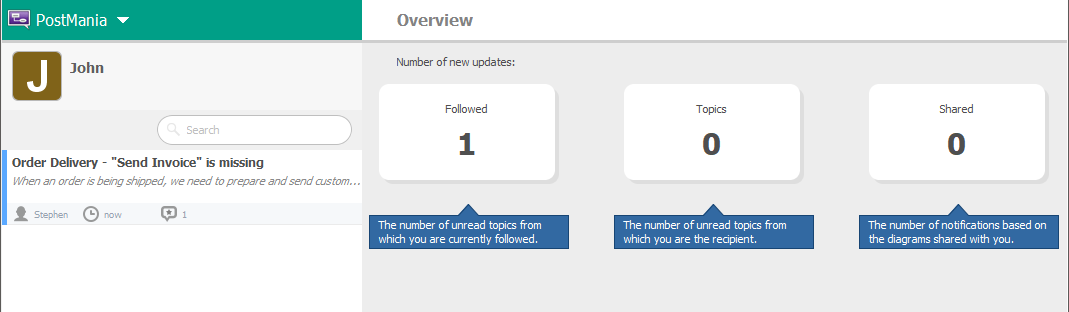

When he click on the notification, he will be brought to the PostMania page where the comments are listed.

PostMania screen opened

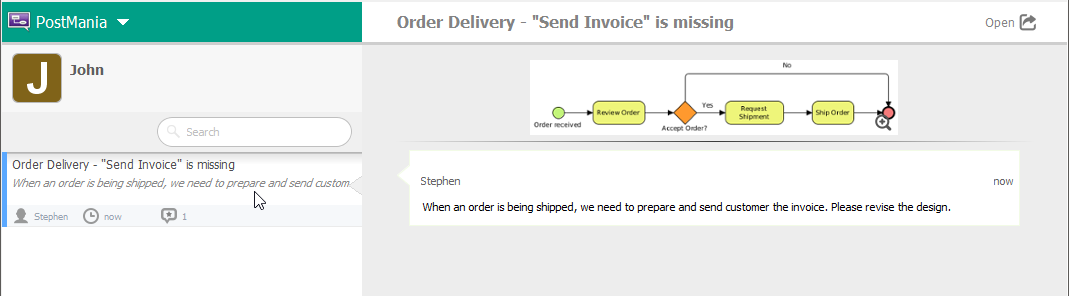

By clicking on a comment on the left, he can preview the content on the right.

Opening a comment

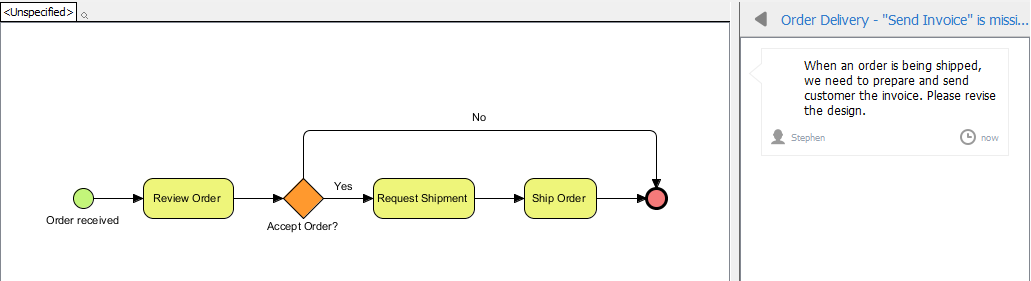

He can also open the comment in-place by clicking on the Open button at the top right of the screen. By doing so, the diagram where the comment was posted will be opened, with the comment presented in the PostMania Topic Pane on the right.

Comment opened

Replying a comment

Having read Stephen's feedback, John is going to correct his design and ask Stephen to comment again.

Correcting design

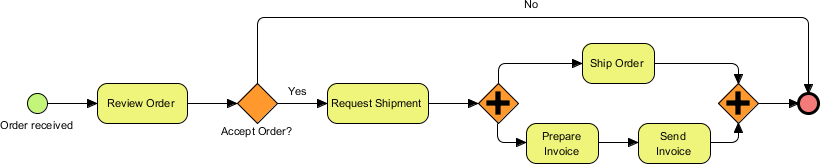

Modify the BPD by including additional tasks for Prepare Invoice and Send Invoice. Then, select Team > Commit from the application bar to commit the changes to VPository.

Modified BPD

Replying a comment

John is going to let Stephen know the design is corrected by giving a reply.

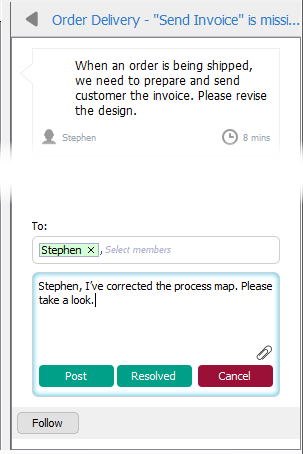

  1. At the bottom of the PostMania Topic Pane, enter the reply Stephen, I've corrected the process map. Please take a look.
    To post reply

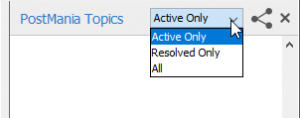

  2. Because we have resolved the problem Stephen raised, click Resolved. The PostMania Topic Pane allows you to list only Active, Resolved or All posts. By marking a post Resolved, you can focus on those non-resolved issues by listing only active posts under the PostMania Topic Pane.
    PostMania Topic Pane filtered

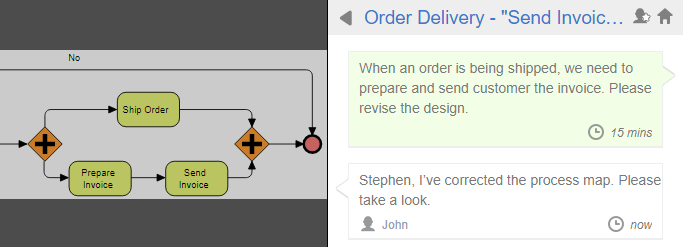

  3. A while later, Stephen read John's reply. He reviewed the latest design and is happy with it. Here is the end of this tutorial.
    Design updated
