Design accurate Yourdon-DeMarco Data Flow Diagrams with a powerful, easy-to-use online DFD editor
The Yourdon-DeMarco notation is one of the most widely recognized approaches for mapping how data moves through a system. Its straightforward symbol set makes it easy to break down processes, define interactions, and document system boundaries-ideal for traditional system analysis and documentation.

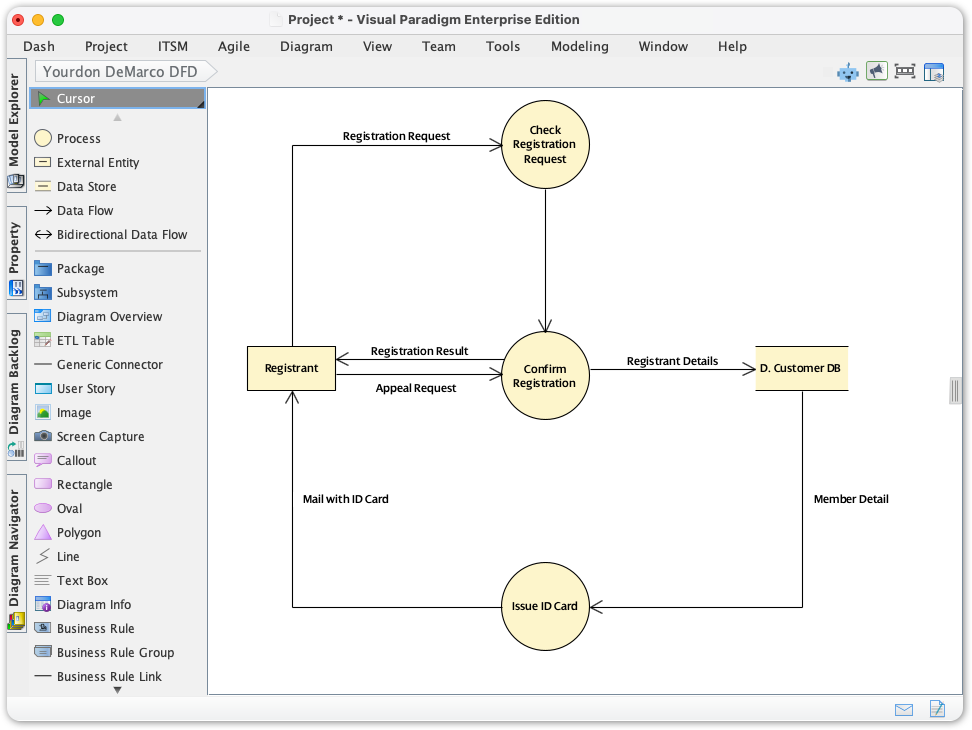

With Visual Paradigm, creating Yourdon-DeMarco DFDs is effortless. Drop in processes, data stores, and external entities, connect them visually, and refine your diagram with snapping guides, formatting controls, and reusable elements that help keep models organized and presentation-ready.
Visual Paradigm's dedicated Yourdon-DeMarco DFD editor is built for clarity and speed in structured analysis, allowing effortless drag-and-drop modeling with precise controls and reusable elements. We are now drastically enhancing efficiency by integrating full Yourdon-DeMarco DFD support into our AI Diagram Generator.

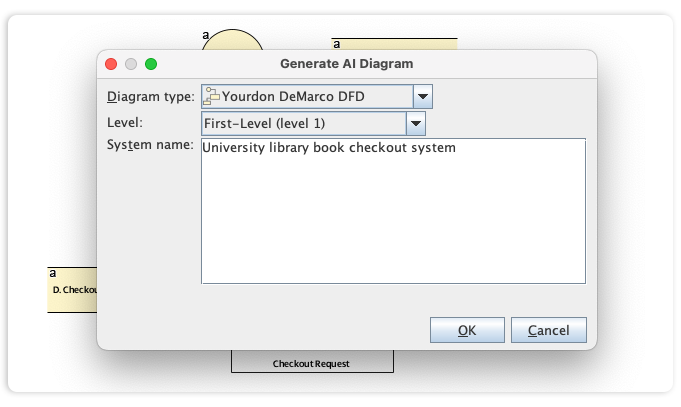

This new capability allows you to instantly produce comprehensive DFDs simply by describing the system's data movement, entirely skipping the manual drawing phase. Just define your processes, entities, and data stores, and the AI delivers a complete, accurate, and structurally compliant Yourdon-DeMarco DFD for immediate use.
The AI Generator is trained to understand the conventions and symbol set of the Yourdon-DeMarco notation, ensuring your diagrams are always accurate and ready for documentation.
This feature combines the wide recognition and straightforward approach of Yourdon-DeMarco DFDs with the unprecedented speed of AI generation, making comprehensive structured analysis faster and more reliable than ever.
